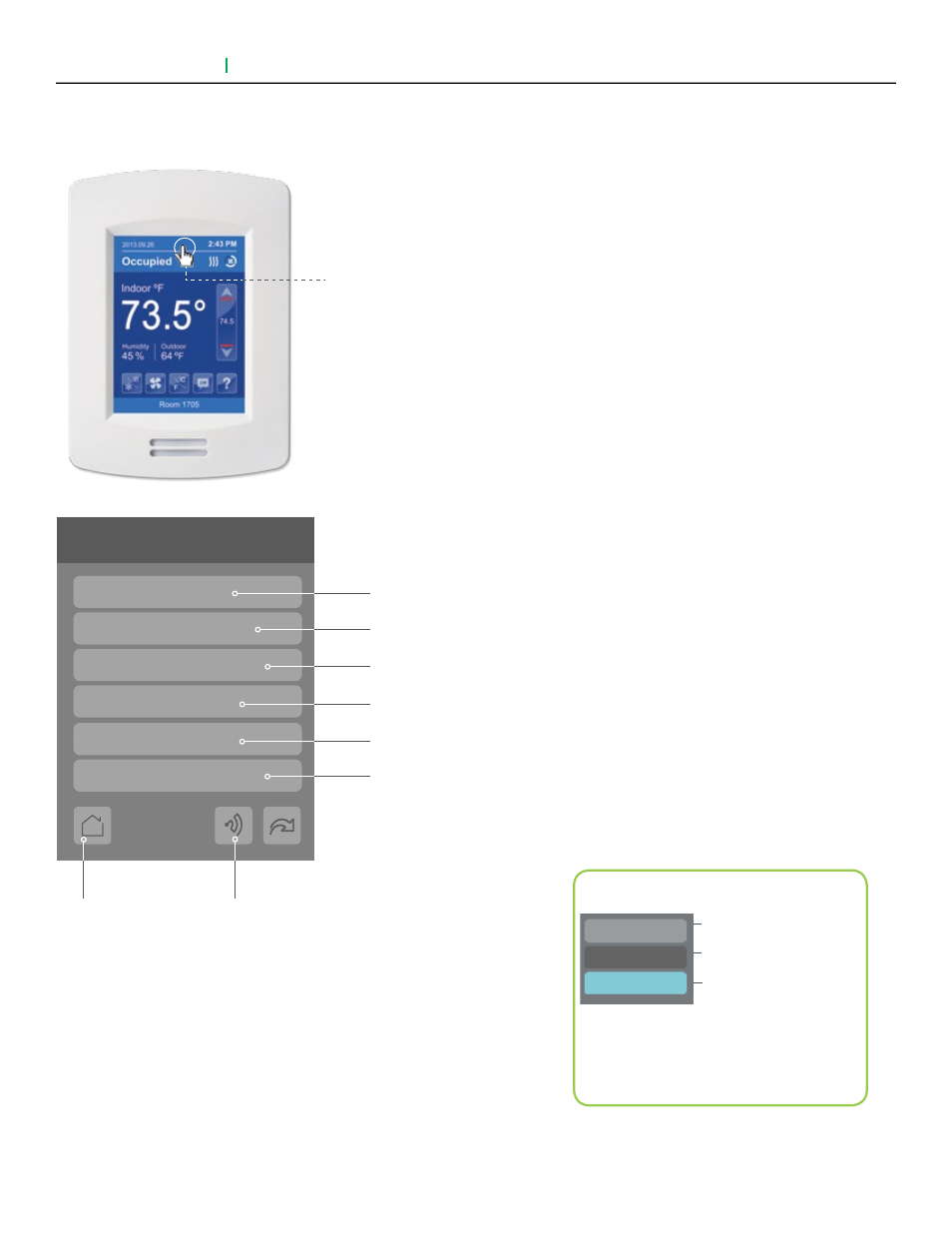

Enter Set-up Screen
Touch and hold this point
for 3 seconds to enter setup mode
Note: If a configuration/installer
password is activated to prevent
unauthorised access to the
configuration menu parameters, a
password entry prompt shows to
prevent access to device
configuration components.
Return to
home screen
General Note:
1/2 Setup
Network
Configuration
Setpoints - Display
Service view
Test outputs
Language selection
Adjustable parameter
Nonadjustable parameter
Indicates invisible conditional
field. Appears based only
on model or presence of a
ZigBee® card
Discover Mode
The Controller
becomes discoverable on the wireless
ZigBee
®
network for 1 minute (this
button is hidden if ZigBee
®
settings are
not configured)
Enter BACnet
®
& ZigBee
®
network settings (only if ZigBee is detected)
Enter parameter configuration menu
Enter setpoint and display settings
Enter output testing mode
Enter status and service view
Note: The following menus show according to context:
- ZigBee menu shows if ZigBee card detected.
- Network choice inside does not show if no network is available
Enable selected language(s)*
*only available in recent versions of firmware
