VT8300 Series User Interface Guide
BO2 Fan Low
BO4 Fan High
Off
Off
Off
BO3 Fan Med
BO8 Aux Output Off

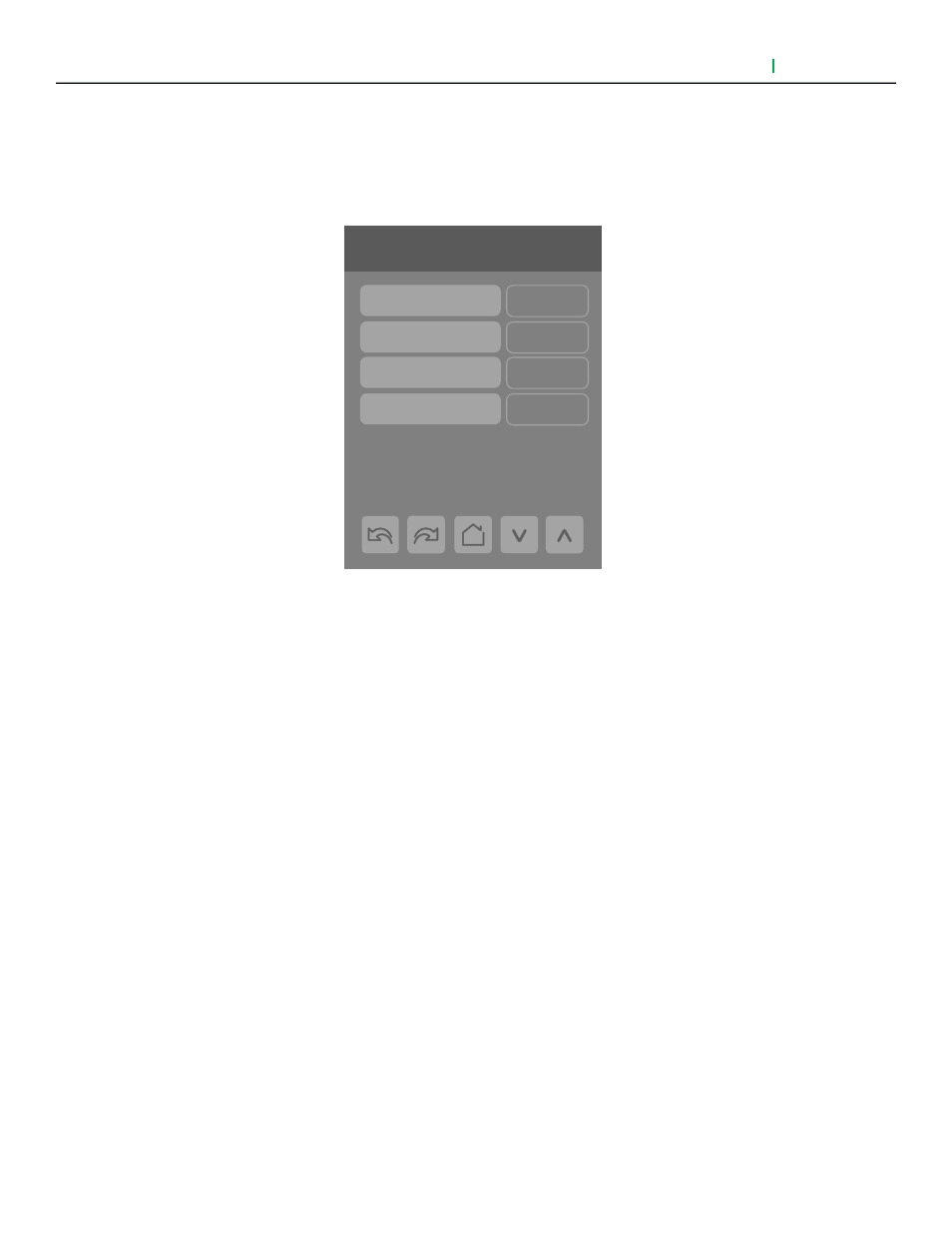

1/2 Test Outputs
TEST OUTPUTS
Note 1: Cooling output can also be used for heating on two pipes systems.
Note 2: The test output screen allows manual override of specified outputs. When any BACnet® network priority array includes a value,
the status background shows in red. After any output state is overridden, the command is cancelled after 1 minute of screen inactivity
(auto exit to main screen) or when page is exited. Refer to the BACnet® integration guide for more details.
Note 3: Use high caution when manually enabling outputs so as to not cause damage to equipment. It is the responsibility of the Installer
or Service Contractor to insure safe operation during usage.
