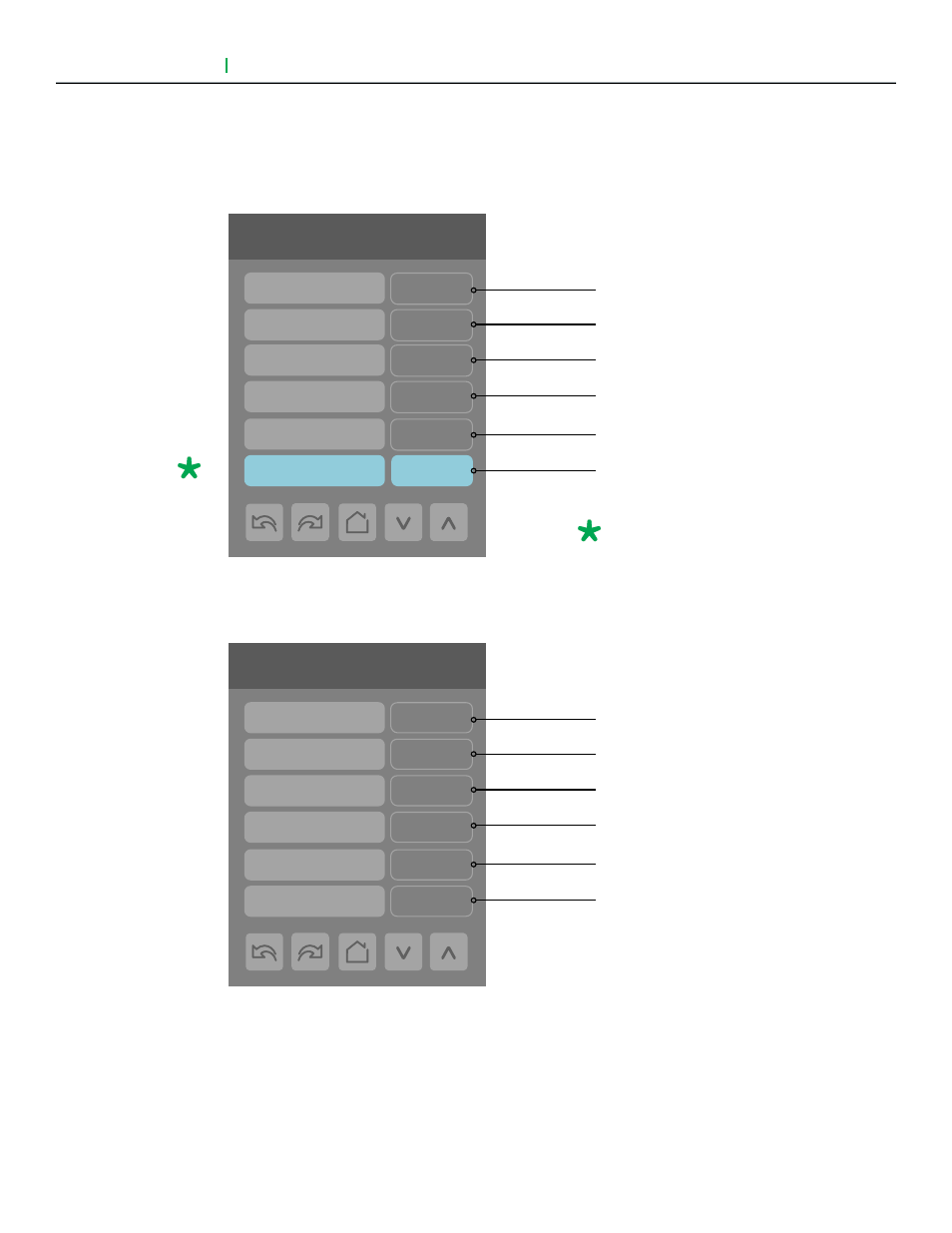

SERVICE SCREEN VIEWS
The service view screens show the current status of certain points locally at the controller. These points can also be viewed through the
network. Service view allows service contractor to visualize the status of key functionality to correctly diagnose operational system issues.
Firmware Revision
Room Temperature
Changeover Temperature
Supply Temperature
Outdoor Temperature
Room Humidity
Parameter only displayed on
models with built in humidity
sensor.
2/6 Service view
PI heat. dem.
0%
0%
PI cool. dem.
Heat dem. limit
0.0%
0.0%
Cool. dem. limit
Effective occ.
Occupied
Supply temp.
xx.x °C
Effective Occupancy
PI Cooling Demand
PI Heating Demand
Cooling Demand Limit
Heating Demand Limit
Supply Temperature
