VT8300 Series User Interface Guide

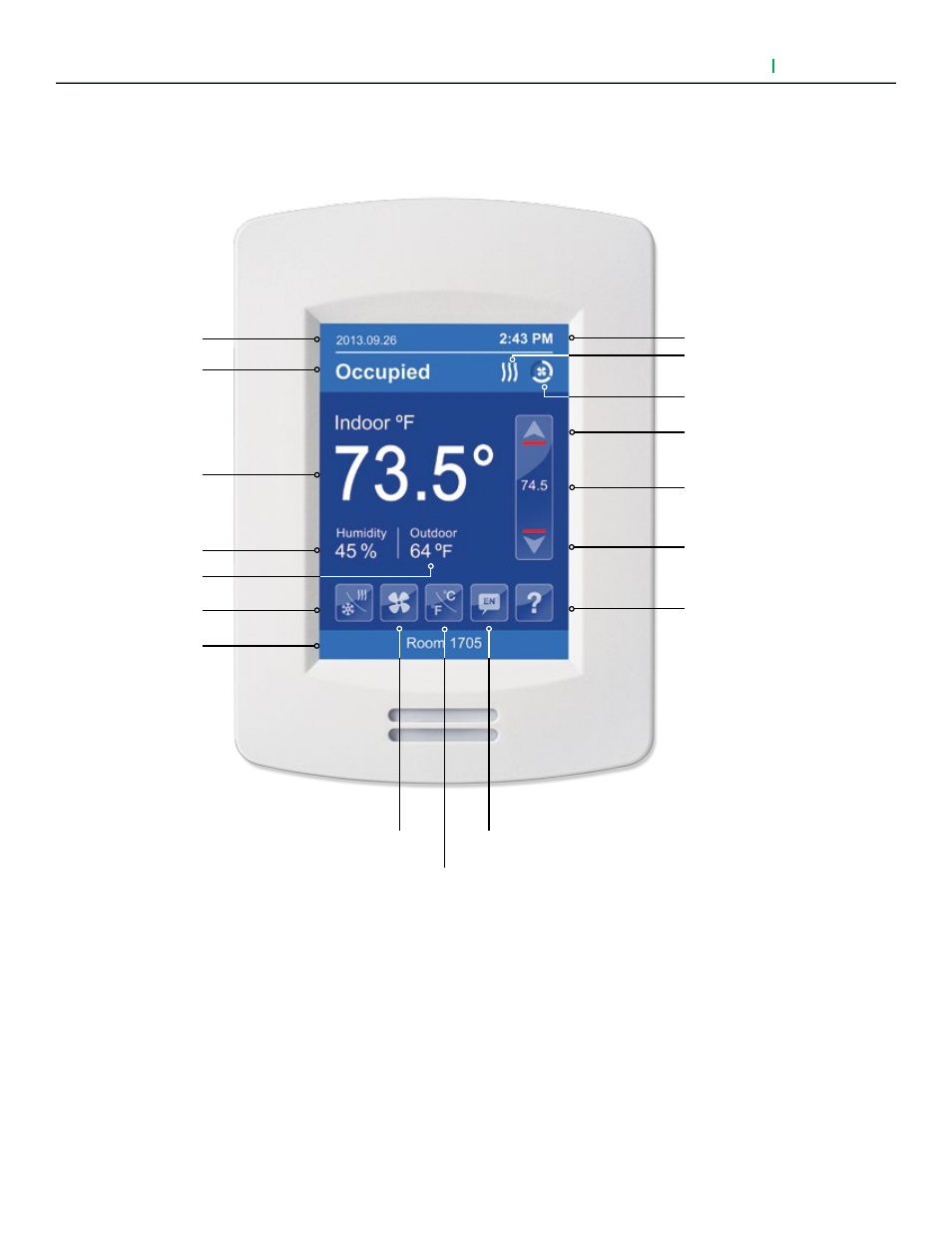

HMI Display
The below shows a typical user interface for the hospitality industry. The User HMI is configurable and allows display functions such as Date,
Time, Humidity, Outdoor Temperature, and Setpoint to be enabled or disabled by setting various parameters.
General Notes
1. When any change is made to a parameter, the value is automatically saved in memory when the next
parameter is selected or another page is opened.
2. Arrows auto-increment/decrement at higher speed when holding button for more than 0.5 second.
3. All objects related to humidity do not display on HMI when Controller is ordered without built-in humidity sensor.
Time
System Status
Fan Status
Up Arrow
Increase Temperature Setpoint
Actual Setpoint
Down Arrow
Decrease Temperature
Setpoint
Help
Language Selection
Temperature Units
Fan Mode
Date
Occupancy Status
Indoor Temperature
Indoor Humidity
Outdoor Temperature
System Mode
Short Network
Message
