11 VT8300 Series User Interface Guide
Viconics Technologies Inc. | 9245 Langelier Blvd. | St.-Leonard | Quebec | Canada | H1P 3K9 | Tel: (514) 321-5660 | Fax: (514) 321-4150
028-0427-01 www.viconics.com | [email protected] November 2014
©
2
01
4 V
ic
onic
s T
ec
hno
lo
gi
es
Inc
. A
ll r
ig
ht
s r
ese
rv
ed
.
Previous Next
Page Page
Com address
ZigBee Pan ID
1/2 ZigBee Network
ZigBee channel
0x0000 ZigBee short
0x0000 IEEE address
No NWK ZigBee status
254
0
10
Change Value
Down.
Only last 4 digits in HEX show
ZigBee® Pro short address. The address is generated
once the device joins a ZigBee® network
ZIGBEE PRO NETWORK SETTINGS

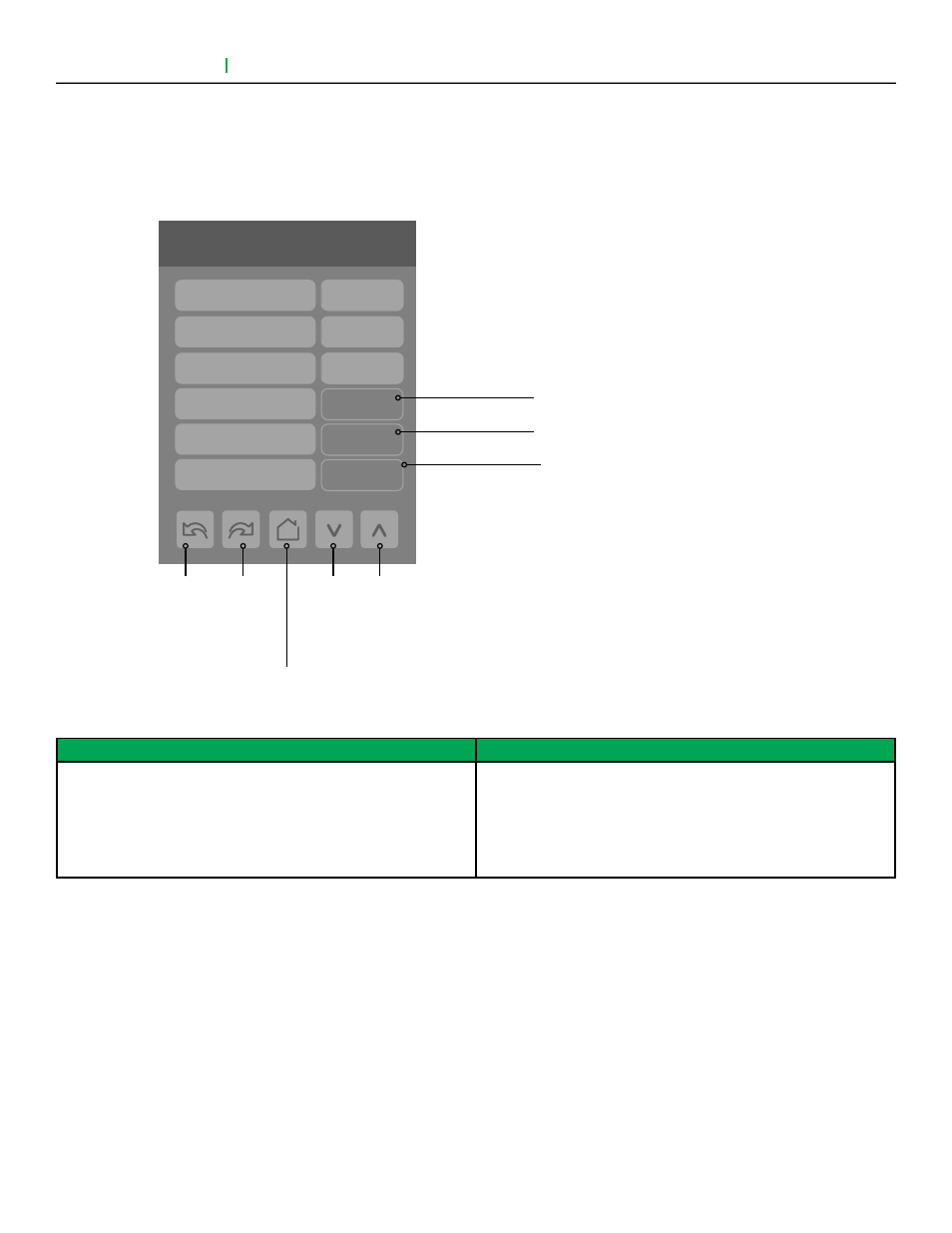

ZigBee Pro set-up screen shows when a ZigBee card is detected in the model. Select the desired parameter and
use the up or down arrow to set the parameter to the desired value.
Status of controller detecting a ZigBee®
network. Shows Online when successfully connected
to a network.
Back to Setup Page
PARAMETER DETAILS
Configuration Parameters Default Value Significance and Adjustments
Com address
Terminal Equipment
Controller networking address
Default value = 254
Range value = 0 - 254 Communication Address
For wireless models, the use of COM address is not mandatory.
The extended IEEE ZigBee® node address is used to identify the
device on the network.
The COM address is an optional way to identify a device on the
network.
