Tuffy Security 240 - Manual (Page 6)

Page 6 of 10 - 122006 – Rev 070811
Jeep Wrangler TJ 1997-2002
16. Remove the factory rear seat catch bolts #11.8, #11.9 Washers and brackets #11.6 attached to the vehicle tub wall.
Save the bolts #11.8 & washers #11.9, they will be reused. (See Figure 4b)
17. Remove the factory rear seat belts #11.18. Tip: These can be zip tied to roll bar for storage. (See Figure 4b)
18. Remove the factory bolts #11.13 and #11.14 washers which secure the rear door striker to the vehicle tub. These will
be reused. (See Figure 4b)
19. Locate the holes in the tub on the right and left (Optional) side corresponding with holes in both side panels where
screw #10.15 is illustrated. There is a rubber plug in the tub which will need to be removed and the carpet will need to
be cut where the screw will pass through. (See Figure 4b)
20. Insert the rubber well nuts #10.13 in the right and left (optional) sides behind the carpet. (See Figure 4b)
Tip: it is easiest to only start all the mounting hardware a few turns then come back and tighten them down.
21. Place the right #4 & left #3 panel in the vehicle and fasten them to the well nuts #10.13 previously inserted into the tub
using #10.14 washers and #10.15 screws. (See Figure 4b)
22. Reinstall the original seat bracket mounting bolts #11.8 with the original #11.9 washers into there original location to
secure the right and left panels to the wall of the vehicle tub. (See Figure 4b)
23. Reinstall the original bolts #11.13 and original #11.14 washers to secure the rear door striker assembly and the left
panel #3 to the vehicle tub. (See Figure 4b)
24. Skip below to step 37.

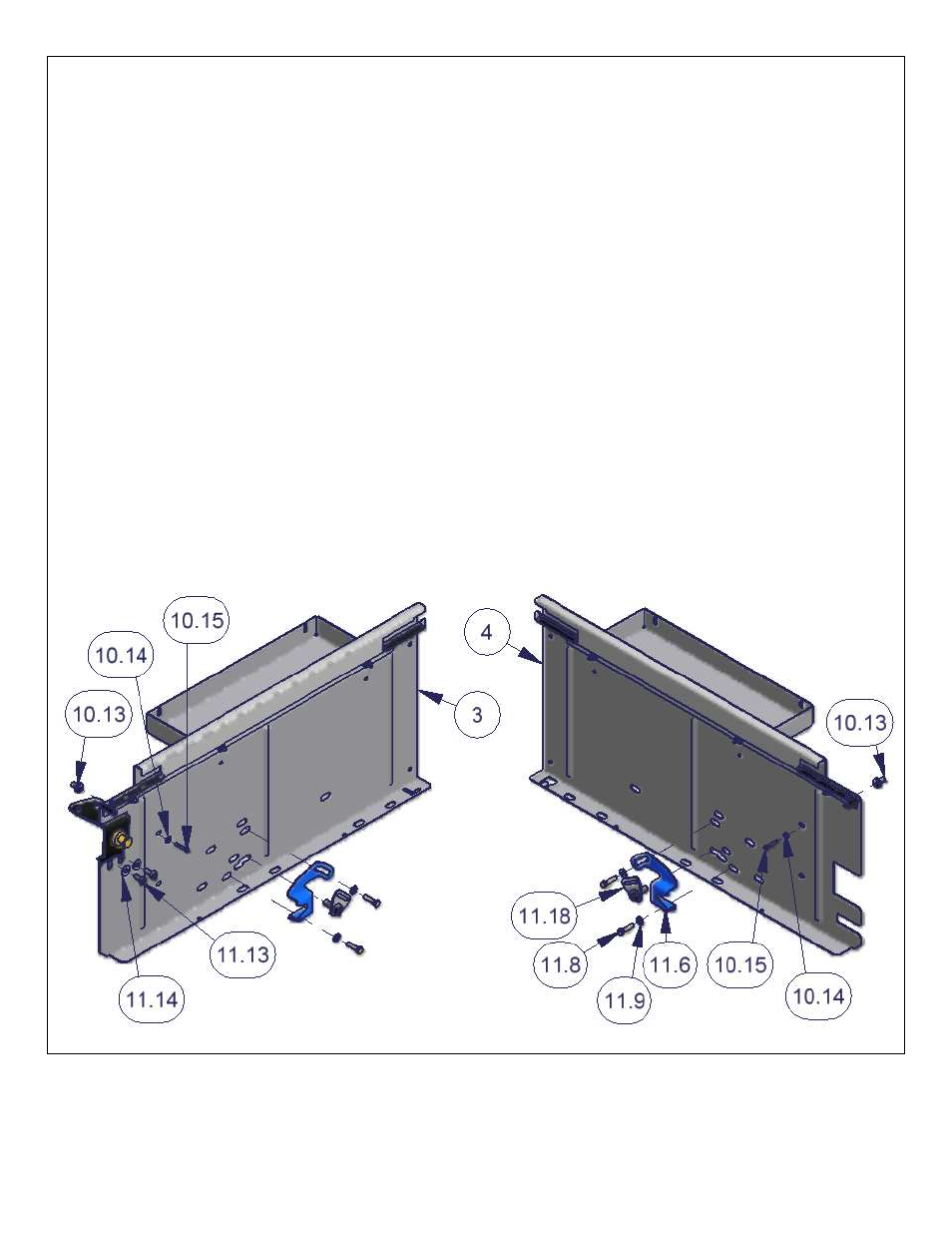

Figure 4b
