Figure 2 – Tuffy Security 240 User Manual
Page 3
Page 3 of 10 - 122006 – Rev 070811

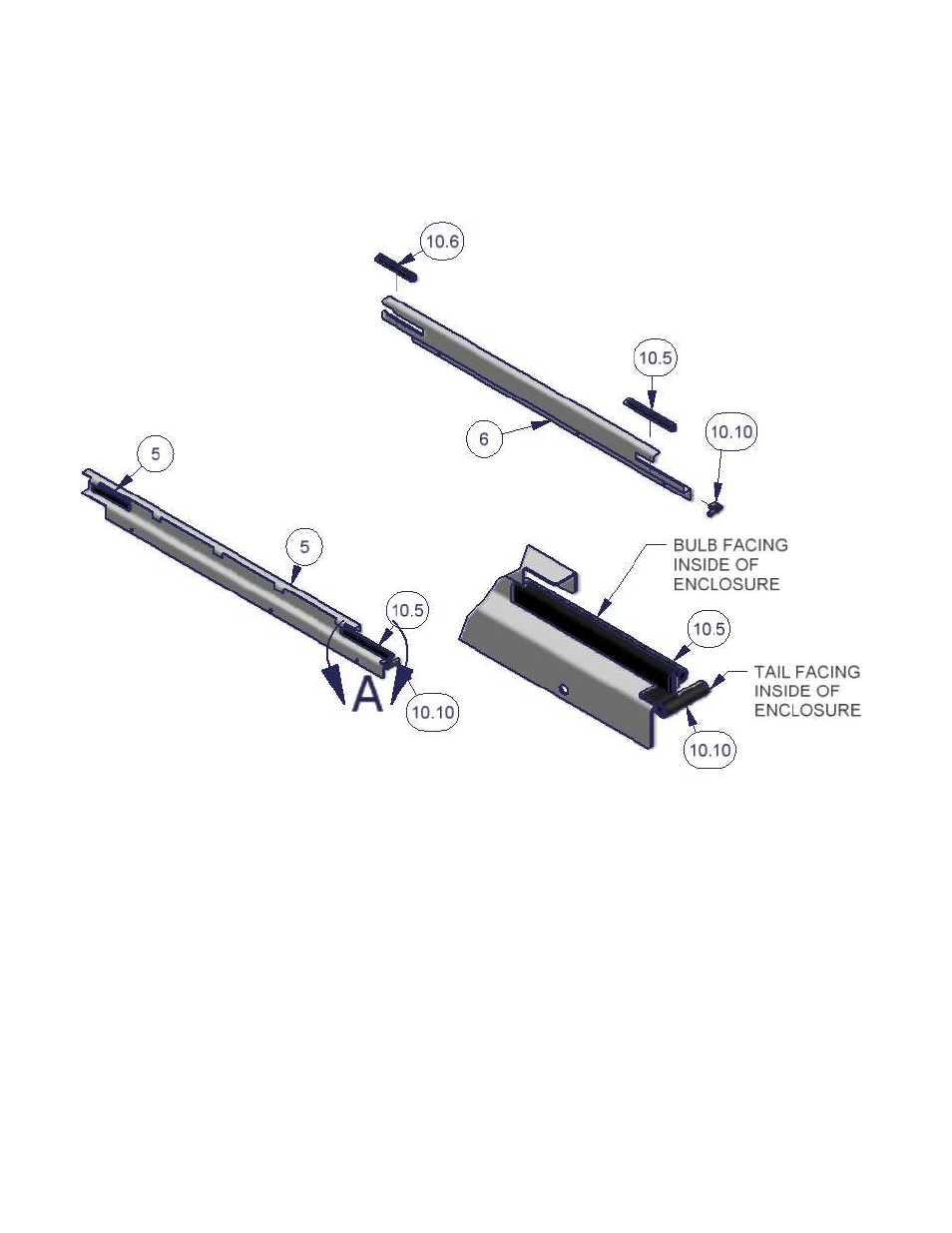

4. Install the pre-cut trim seal #10.5 and #10.6 on both side brackets #5 and #6 as illustrated with the bulb facing the
inside of the enclosure assembly. (See Figure 2)
5. Install the pre-cut trim seal #10.10 on both side brackets #5 and #6 with the bulb overlap protruding toward the inside
of the enclosure assembly. (See Figure 2)
Figure 2
