Tuffy Security 240 User Manual
Installation instructions, Shipment contents, Hardware package

Page 1 of 10 - 122006 – Rev 070811
INSTALLATION INSTRUCTIONS
DRAWERS #240
Please read and fill out the enclosed warranty registration card to activate your warranty.

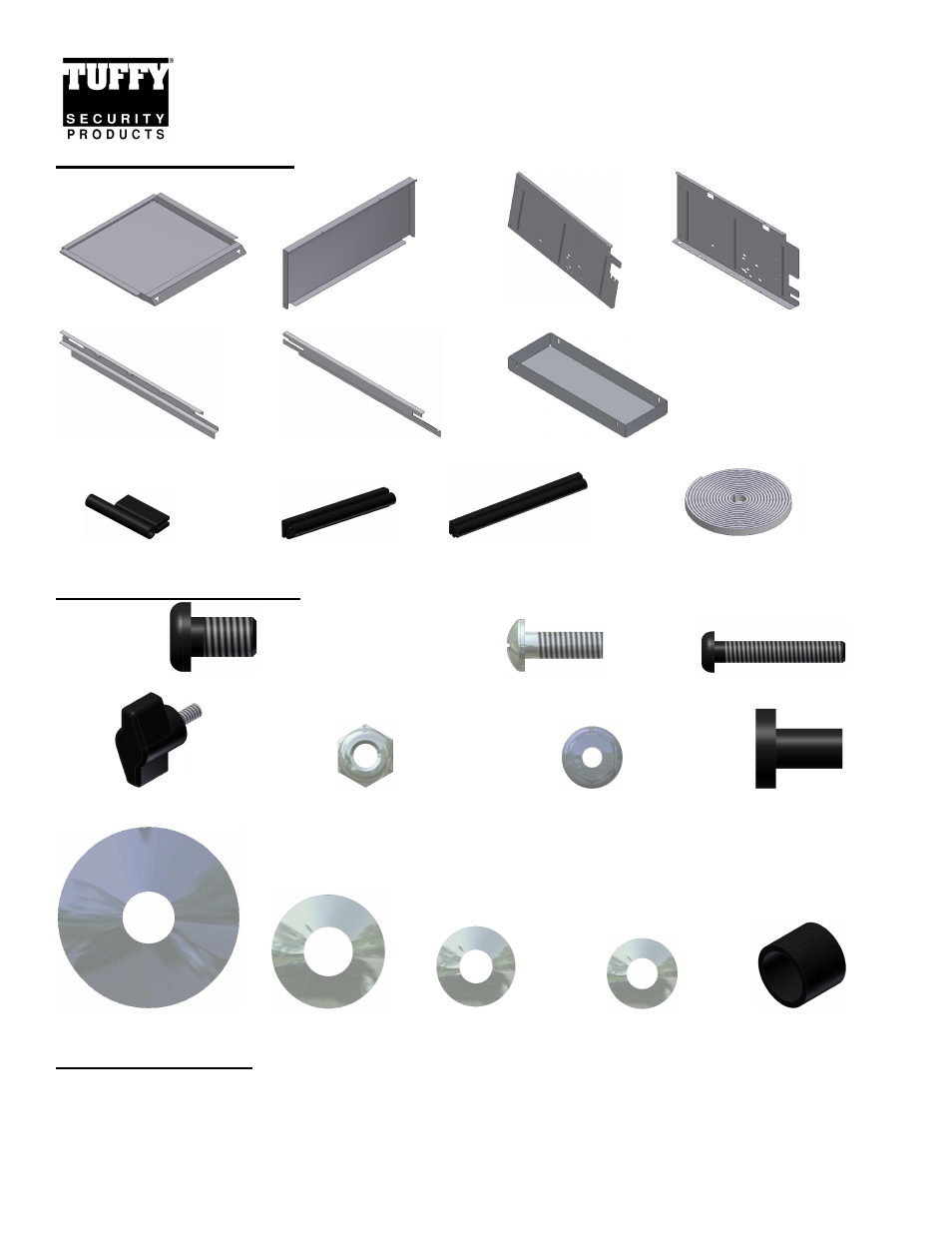

SHIPMENT CONTENTS
#1 Lid
#2 Rear
#3 Left side panel
#4 Right side panel
#5 Left side bracket
#6 Right side bracket
#7 (2) Trays
10.10 (2) 1 7/16” Seal
#10.6 (2) 4 1/8” Seal
#10.5 (2) 5 7/16” Seal
#10.8 Rubber seal
HARDWARE PACKAGE
#10.1 (4) 3/8 x 5/8” Bolts (2 are used in packaging)
#10.18 (10) ¼-20 x ¾” Screws #10.15 (2) 10-32x1 ¼” Screw
#10.11 (4) ¼-20x1” Knob Screw #10.17 (10) ¼-20 Nylock nuts
#10.19 (2) ¼-20 Hex washer Nuts #10.13 (2) 10-32 Rubber
Well Nut
#10.2 (4) 3/8” Fender Wash #10.3 (4) 3/8” Wash #10.16 (16) ¼” Wash #10.14 (2) #10 Wash #10.4 (4) Rubber spacers
TOOLS REQUIRED
•
All applications: Ratchet, 7/16” socket or wrench, Phillips head screwdriver, T-50 Torx, T-40 Torx, 1/8” Allen wrench, 7/32”
Allen wrench and a utility knife.
•
Additional tool requirements for TJ 1997-2002: ½” Socket
•
Additional tool requirements for YJ: ½” Socket, T-30 Torx, (Optional: Drill & 3/8” bit)
