Tuffy Security 052 - Manual

Page 1 of 2 - 1/28/2008 – Rev122006
INSTALLATION INSTRUCTIONS
Samurai Security Console Part # 052
Please read and fill out the enclosed warranty registration card to activate your warranty.
Tools Needed
‰ Marking Pencil or Pen
‰ ½ ” Socket and Ratchet
‰ ½ ” Wrench
‰ 5/16” Wrench
‰ 3/8 ” Wrench
‰ Drill and 3/8” drill bit (1/8” bit recommended for pilot hole)

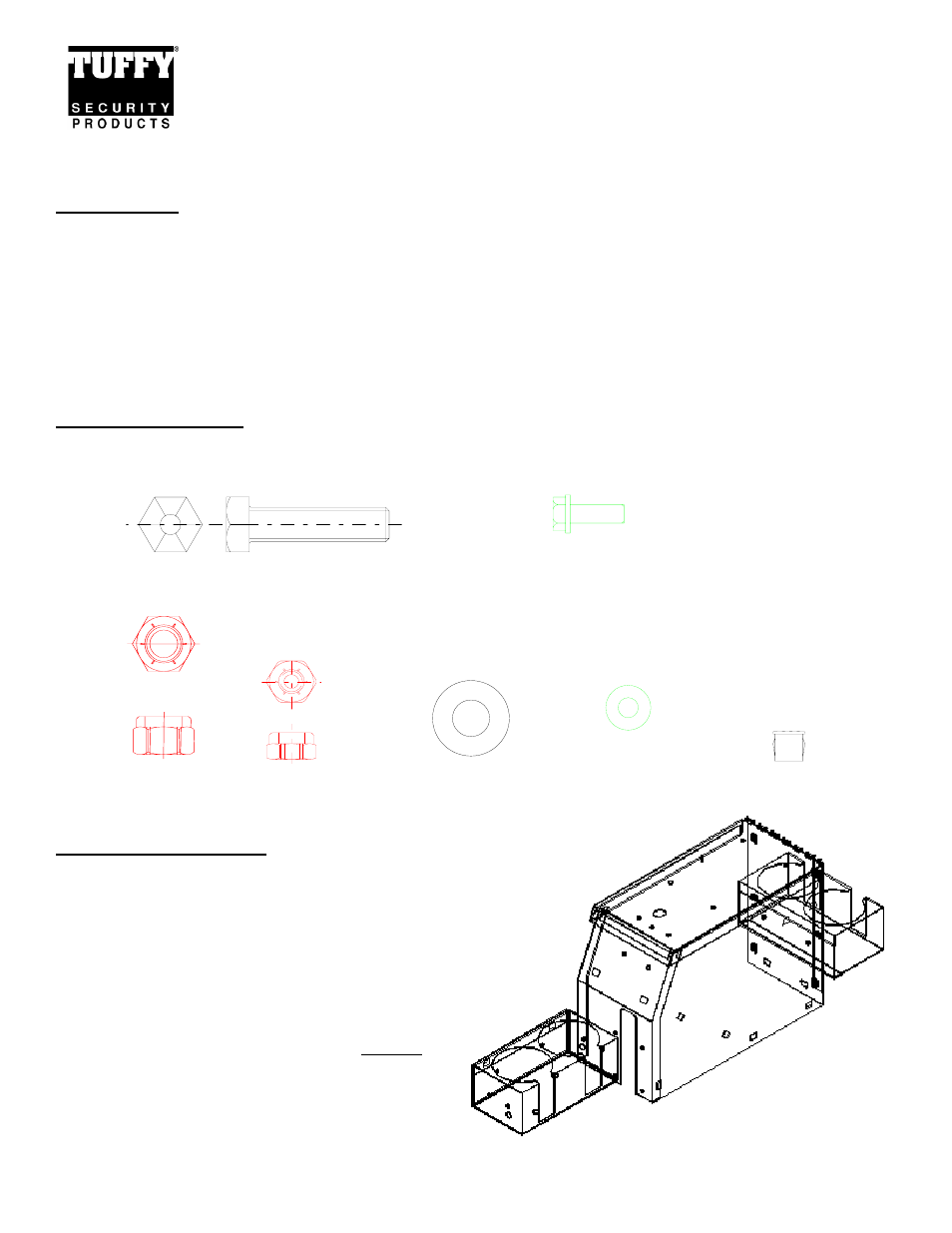

Shipping Package
(4)5/16 x 1 ¼” Grade 8 Bolts (2) 10-32 Unslotted Machine screws
(4) 5/16” Locknuts (2)10-32 Locknuts (8)5/16” Washers (2)#10 Washers (2) Hole Plugs
Mounting Directions
1. Attach the drink holder to either the
rear of the console or the front of the
console using (2) 10-32x ½” screws,
(2) #10 locknuts, and (4) #10
washers. Additional drink holders for
the rear can be purchased
separately, Tuffy part #034. NOTE:
Clearance between the emergency
brake and a front mounted drink
holder is close and the operator
might hit their hand.
