Tuffy Security 036 - Manual

Page 1 of 2 - 5/29/2008 – Rev122006
INSTALLATION INSTRUCTIONS
YJ Glove box Part # 036
Please read and fill out the enclosed warranty registration card to activate your warranty.
Shipping Package

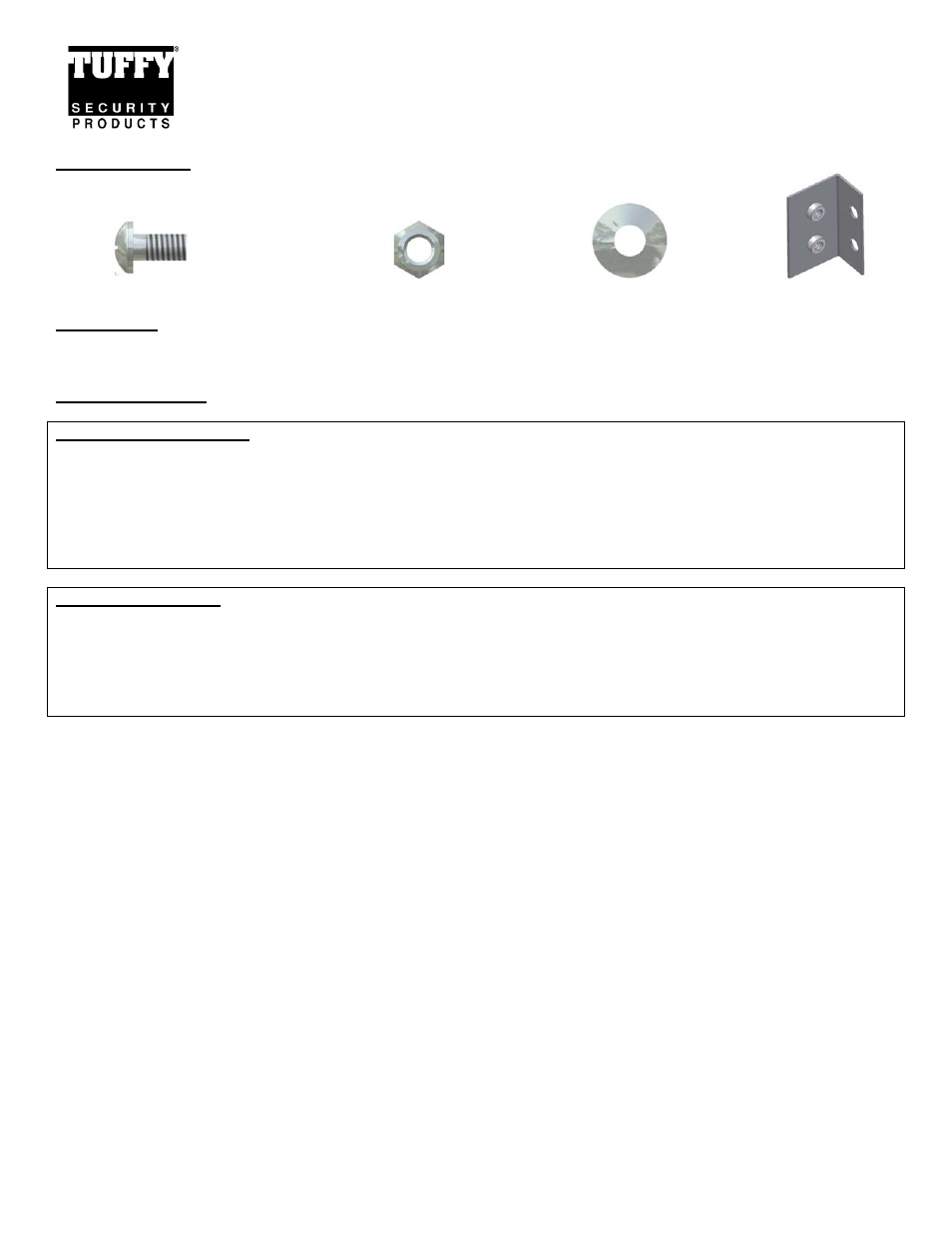

#13.1 (8)¼-20x1/2” screws #13.3 (4) ¼-20 nuts #13.2 (12) ¼” washers #7 (2) “L” Brackets
Tools Needed
‰ #2 Phillips head screwdriver
‰ 7/16” Socket and Ratchet or 7/16” Wrench
Mounting Directions
Remove factory glove box
1. Remove the three original screws from across the top of the glove box face above the panic handle, save these
screws. (#13.5 Figure 1)
2. Open the original glove box, remove the screws fastening the lid and remove the lid.
3. Reach behind the dash and remove the (4) nuts on the backside of the glove box face. There are two nuts behind
each end of the panic handle. These nuts are very difficult to get to and tedious to remove. We recommend using a
¼” drive ratchet with a 7/16” socket. Warning- in some cases there may be sheet metal screws instead of nuts,
however they are located in the same spot. (#13.3 Figure 1)
Install Tuffy glove box
1. Using the same holes that the factory panic handle was connected, install the (2) “L” brackets using the (4) ¼-20X1/2”
bolts #13.1, washers #13.2, and nuts #13.3. The 3/8” holes in the “L” bracket should be mounted in front of the metal
dash frame #13.4. (See Figure 1)
2. Insert the Tuffy glove box and fasten the remaining (4) ¼-20x1/2” bolts #13.1 and washers #13.2 to the “L” brackets
through the holes on the inside of the glove box. (See Figure 1).
3. Refasten the (3) original screws #13.5 across the top of the glove box face. (See Figure 1)
