Figure 3 – Tuffy Security 240 User Manual
Page 4
Page 4 of 10 - 122006 – Rev 070811
6. Install both the left and right side brackets #5 & #6 to both the side panels #3 & #4 using the #10.18 screws, 10.16
washers & 10.17 nuts. In TJs & LJs the trays #7 are also attached with this same hardware. (In YJs the trays are
mounted to the lower holes with the extra #10.18 screws, #10.16 washers & #10.17 nuts included) (See Figure 3)

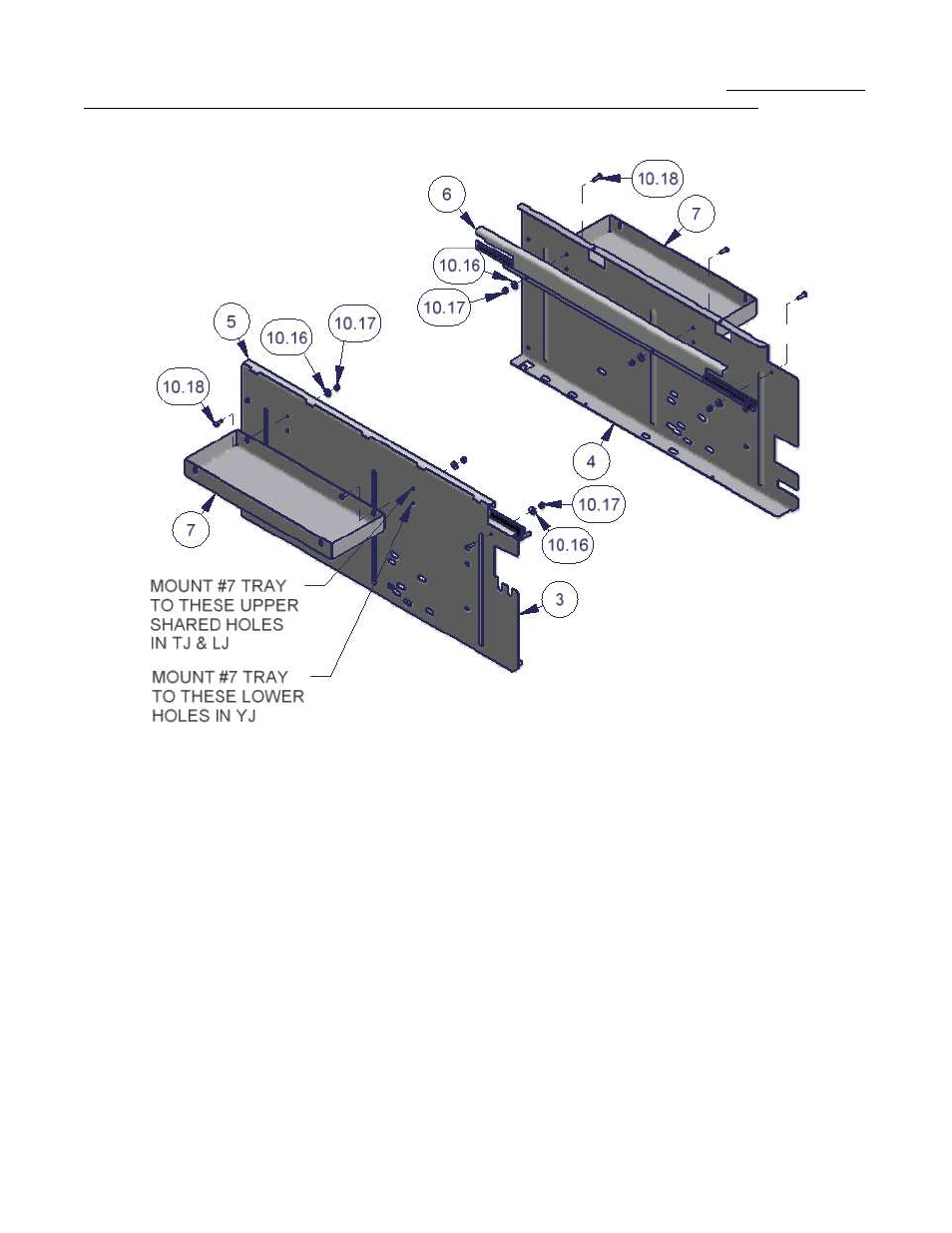

Figure 3
