Page 1 of 2 - 01/28/2008 – Rev02152006
INSTALLATION INSTRUCTIONS
FJ CRUISER SECURITY CONSOLE #144
Call (970) 564-1762 for Technical Support
Please read and fill out the enclosed warranty registration card to activate your warranty.

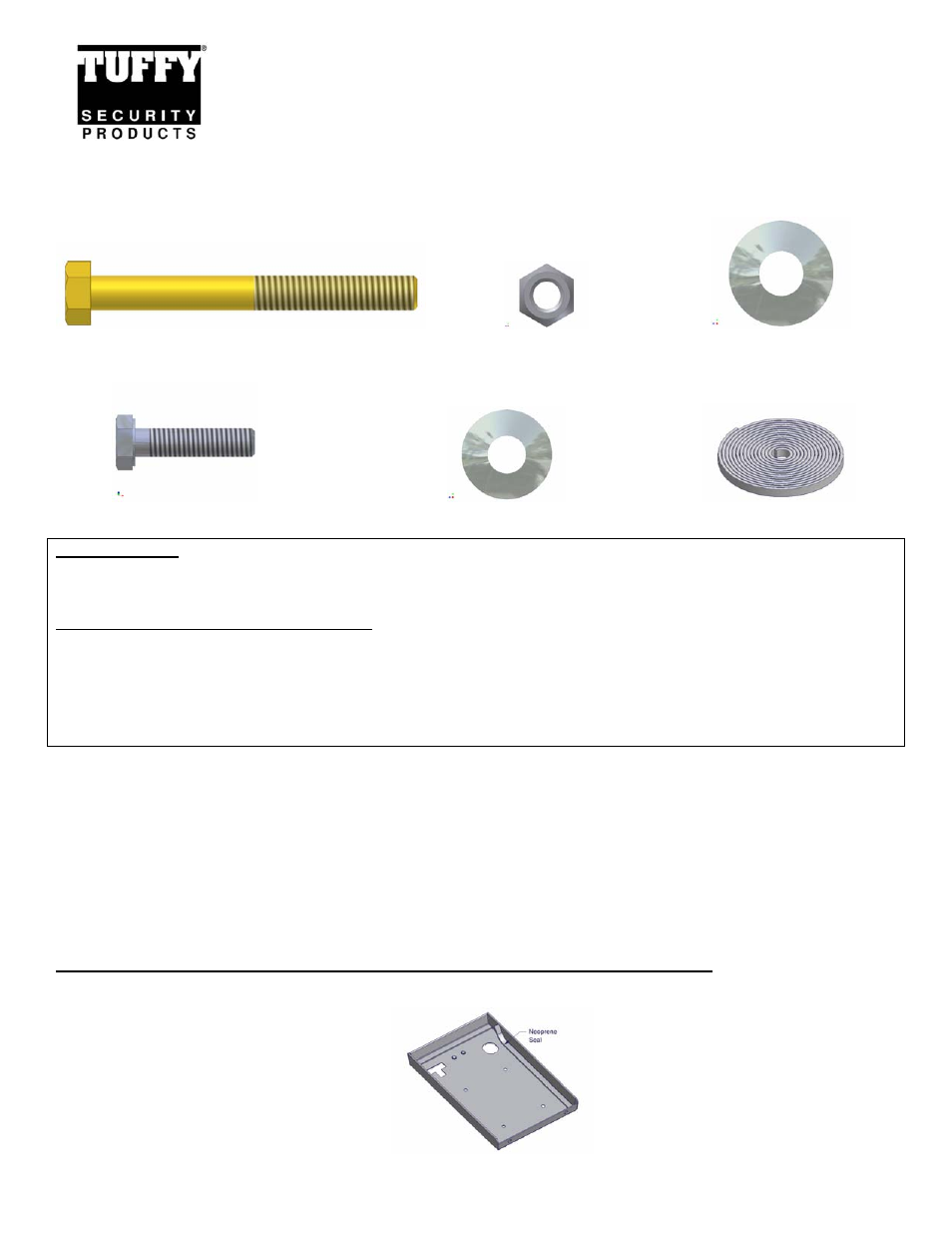

PARTS CHECKLIST
#6.5 (1) 5/16-18 x 3” HEX CAP SCREW, GRADE 8
#6.4 (1) 5/16-18 LOCKNUT
#6.3 (2) 5/16” WASHERS
#6.6 (2) 6MM X 25MM HEX CAP SCREWS
#6.7 (2) ¼” WASHERS
RUBBER SEAL
TOOLS NEEDED
• 10MM Socket, extension, and ratchet
Tools for optional additional mounting security
• Electric
drill
• 3/8” Drill bit
• Marker or pencil
• Silicone sealant (Recommended)
• ½” Socket and ratchet
• ½”
Wrench
ATTENTION:
FREQUENT LUBRICATION IS NECESSARY ON THE LOCKING SYSTEM
The pushbutton lock contains an “O” ring seal to protect the interior from dust and water. If this mechanism is not lubricated regularly
it will become difficult to operate and it may not return to its home position preventing the key from operating the lock. If this
happens simply pull up on the pushbutton to manually bring it back to its home position. Lubricate the pushbutton with a light
lubricant such as silicone spray. The pushbutton may have to be periodically disassembled and cleaned.
PLEASE READ ALL INSTRUCTIONS THOROUGHLY BEFORE STARTING INSTALLATION.
1. Install the rubber seal around the edge of the lid and check the lock and latch operation. (See Figure 1)
FIGURE 1
