Page 1 of 3 - 06/23/2008 – Rev05192008

INSTALLATION INSTRUCTIONS

GAS STRUT 7 ½” WITH 2” STROKE #863

Call (970) 564-1762 for Technical Support


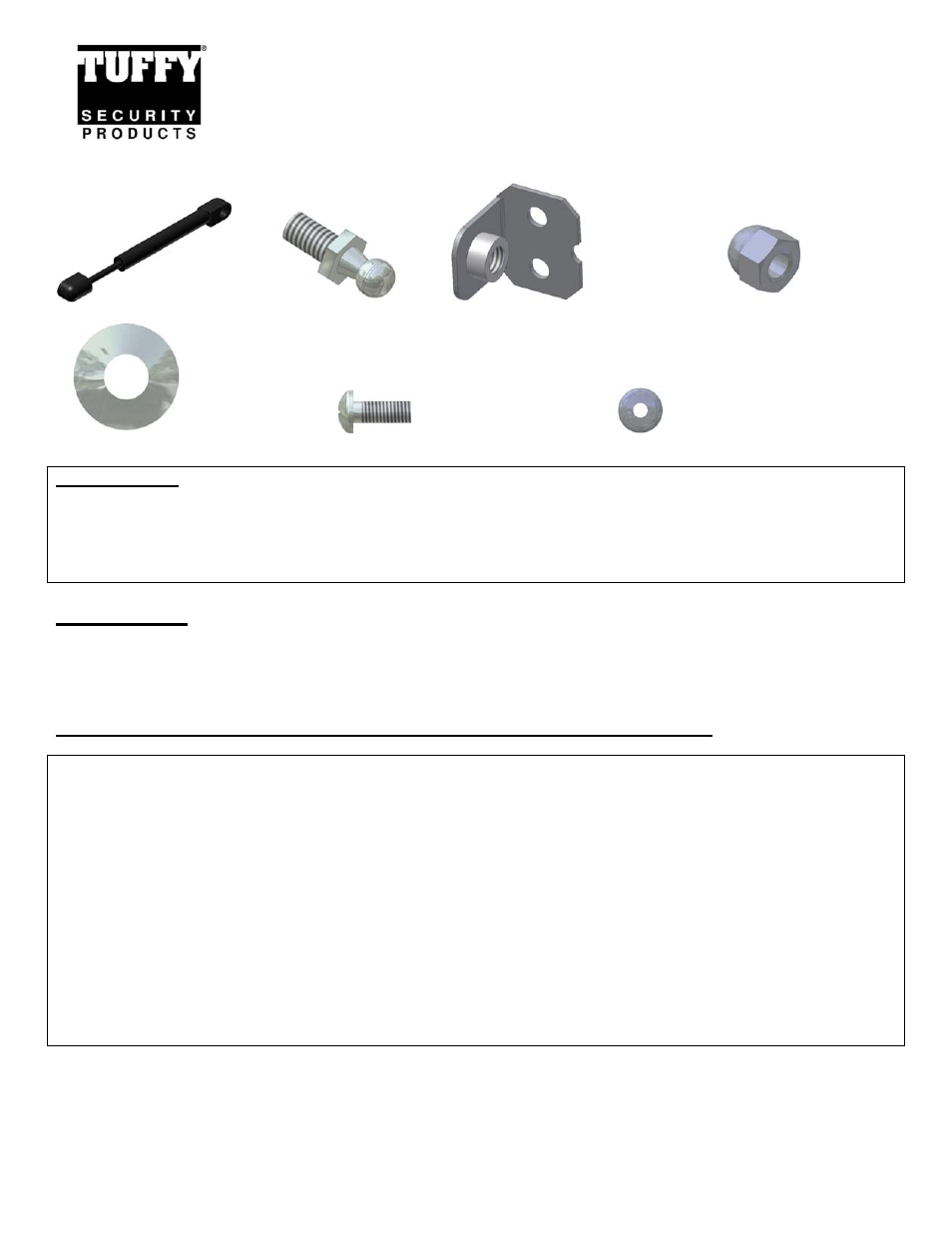

SHIPPING PACKAGE CHECKLIST

#3 Gas Strut

#4 – (2) Ball Stud

#7 - (2) Brackets

#5 - 5/16-18 CAP NUT

#6 - 5/16” WASHER

#2 – (4) 10-32 X ½” PHILLIPS SCREW #1 – (4) 10-32 HEX WASHER NUT

TOOLS NEEDED

• Phillips head screw driver (Short)

• 3/8” Nut-driver and/or wrench

• ½” Socket and ratchet

• ½”

Wrench

ATTENTION: When these instructions and drilling locations are followed on a
Tuffy console with a standard hinge configuration the lid will open up 90 degrees
and stop. If you desire a different lid stopping angle or have a non-standard
hinge configuration the hole locations will need to be adjusted.


PLEASE READ ALL INSTRUCTIONS THOROUGHLY BEFORE STARTING INSTALLATION.

INSTRUCTIONS TO MOUNT THE GAS STRUT ASSEMBLY IN TUFFY CONSOLES WITH A STANDARD LID
CONFIGURATION (SEE BELOW FOR NON-STANDARD PART# 139 JK CONSOLE INSERT LID INSTALLATION)

1. Remove the padded cushion and mark the spots for (2) ¼” holes in lid to mount the #7 Bracket. Measure from the rear and right

side on the outside top of the lid as illustrated. (See Figure 1)


2. Drill the (2) ¼” holes in the lid. (See Figure 1)

3. Mark the hole on the right side panel for drilling a 3/8” hole as illustrated and drill it out. (See Figure 2)

4. Mount the #7 Bracket with the #4 Ball stud to the lid using the illustrated hardware. (See Figure 3)

5. Mount the #4 Ball stud in the side with the illustrated hardware (See Figure 3 & 4)

6. Press on the #3 Gas spring in the orientation illustrated with the rod facing down. (To remove it use a standard screwdriver to pry

up the spring clip on the #3 Gas spring until it pops off, It is not necessary to completely remove the spring)
