INSTALLATION INSTRUCTIONS
JEEP TJ & LJ Hood Lock #137
Please read and fill out the enclosed warranty registration card to activate your warranty.
PARTS CHECKLIST
#1 Bracket, Hood Lock
SHIPPING PACKAGE CHECKLIST
#5.3
– ¼-20x1” BOLT
#5.1 - (2)
¼” SAE WASHERS
#5.2
– ¼-20 NYLOCK NUT
TOOLS NEEDED
7/16
” socket and wrench
ATTENTION: THIS HOOD LOCK WAS DESIGNED FOR A STOCK OEM VEHICLE, ANY MODIFICATIONS MADE TO
THE GRILLE, RADIATOR, ETC MAY AFFECT THE FIT.
PLEASE READ ALL INSTRUCTIONS THOROUGHLY BEFORE STARTING INSTALLATION.
1. IMPORTANT! Make sure the vehicle is parked on a flat surface, placed in park, and the emergency brake is
activated.
2. If you purchased a #091 dust cover, install it prior to mounting the hood lock to the vehicle. See instructions
appendix A located at the end for installation).
3. Raise the vehicle hood and prop it open.

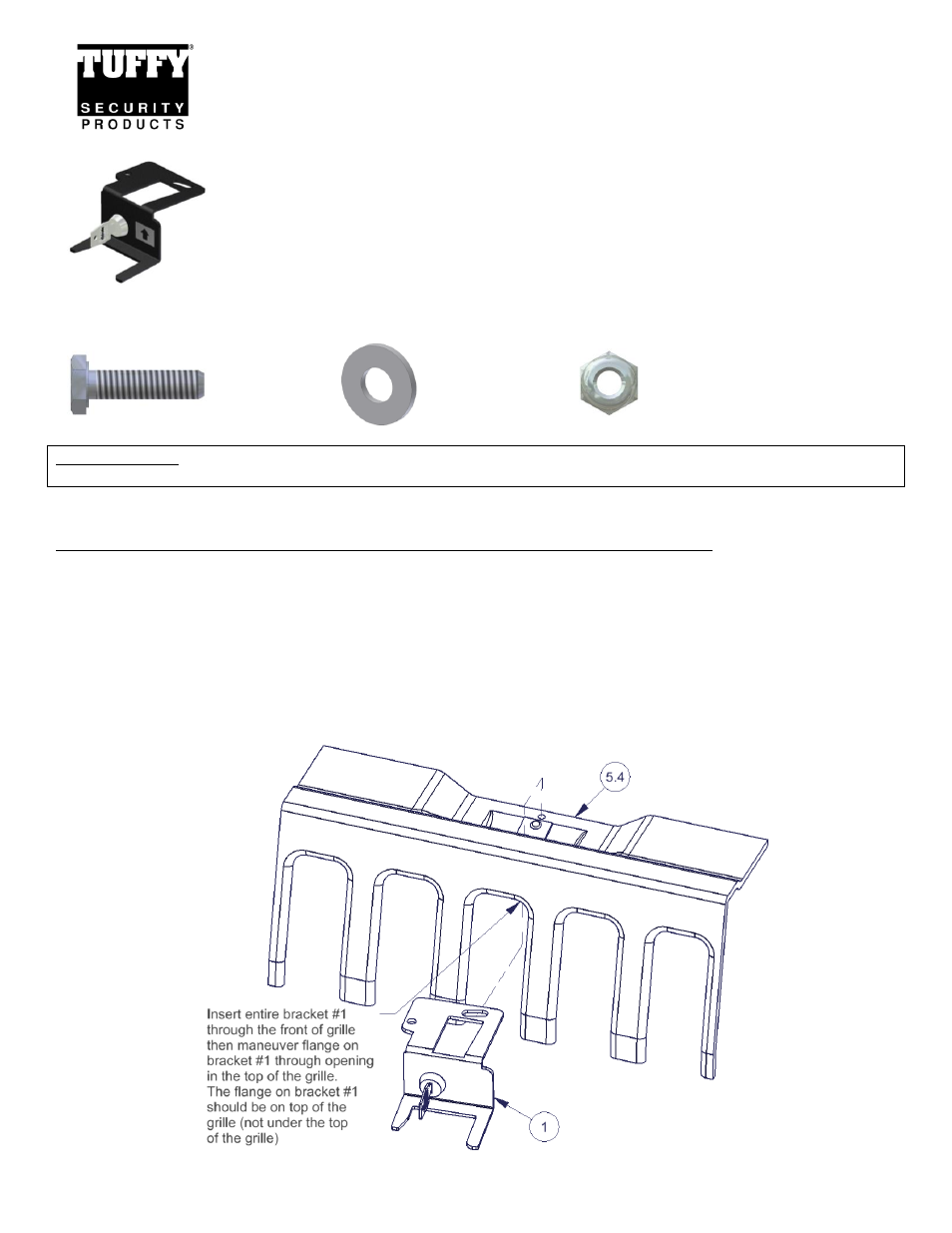

4. Maneuverer the #1 Bracket through the front of the grille #5.4 then insert the flange on the #1 bracket up through the
rectangle slot in the top of the grille #5.4 and line up the holes as illustrated. (See Figure 1 & 2)
FIGURE 1
