INSTALLATION INSTRUCTIONS
REAR CARGO STORAGE CAGE #073
Please read, complete, and return the enclosed warranty registration card to activate your warranty.

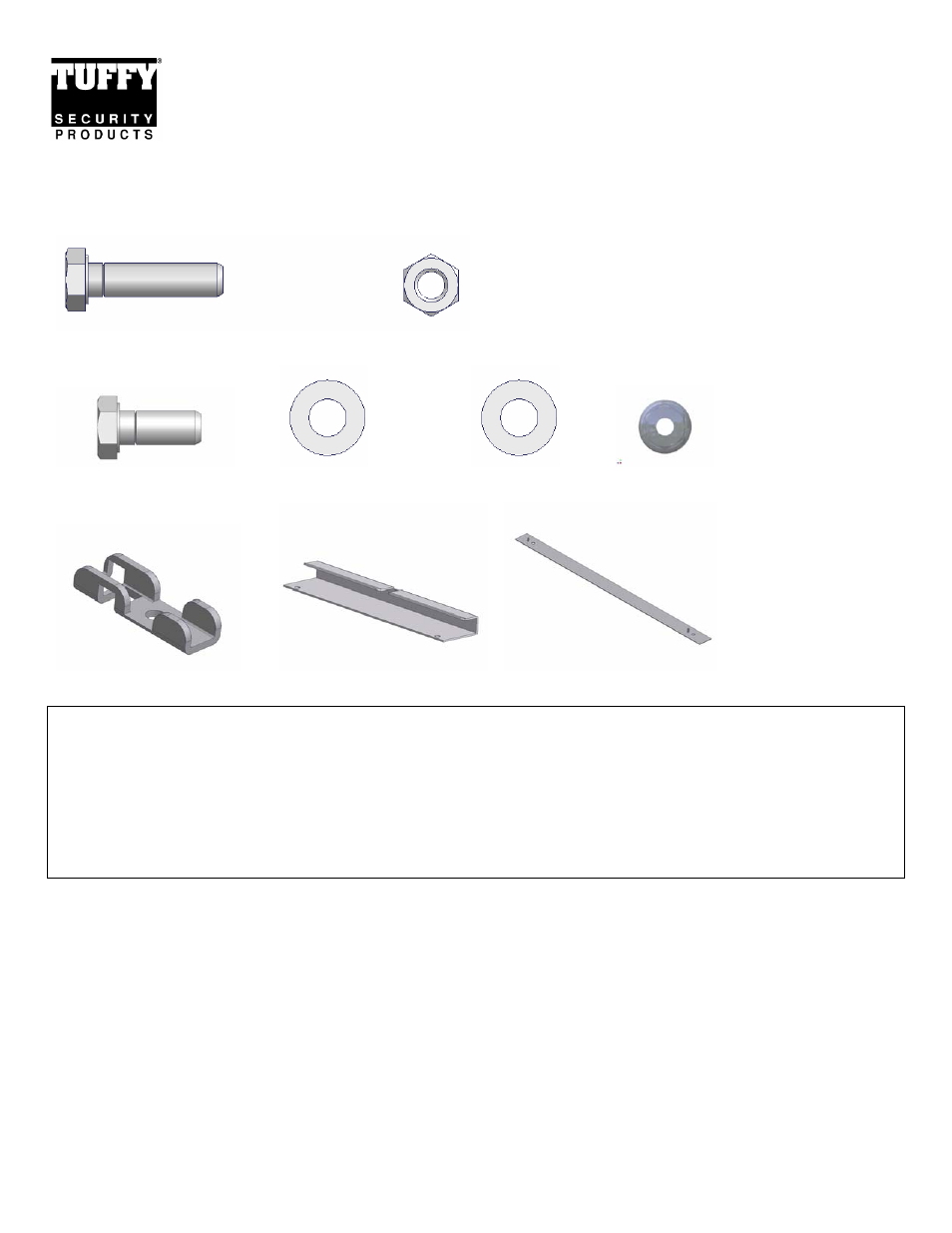

PARTS CHECKLIST
(4) 5/16 x 11/4” BOLTS (4) 5/16 NYLOCK NUTS
(2) 5/16 x ¾” BOLTS
(4) 5/16 NYLON WASHERS (6) 5/16” WASHERS (2) 10-32 NUTS
(2) T-LATCHES REAR BRACKET FRONT BRACKET
TOOLS NEEDED
• Electric
drill
• 3/8” Drill bit
• Marker or pencil
• Utility
knife
• ½” Socket and ratchet
• ½”
Wrench
• Silicone
sealant (Recommended)
PLEASE READ ALL INSTRUCTIONS THOROUGHLY BEFORE STARTING INSTALLATION.
1. Place the cage in the vehicle in the desired mounting location. Place the rear-mounting bracket around the rear
bottom tube on the storage cage. (SEE FIGURE 1)
NOTE: Make sure the tailgate will close and the soft-top will fold down. Make sure that the front of the cage,
where the front mounting bracket will be mounted, is on a surface that the bracket can be mounted to via drilling
two holes and fastening with the mounting hardware. (HOLES 1 AND 2 IN FIGURE 2)
2. Using a marker or pencil mark the (2) spots under the (2) holes on the Rear Mounting bracket where the mounting
holes will be drilled. (HOLES 3 AND 4 IN FIGURE 2)
