Form P-RDF, P/N 270069 R6, Page 7
Blower Motors, Contactor, and Starters
CODE 45 - Blower Motor - Motors in the table below that do not have a CODE 46
contactor listed do not have internal overload protection and MUST be used with the
CODE 47 motor starter and starter overload. If a CODE 46 contactor is listed, motor
may be used with either the contactor or an optional starter and overload.
CODE 46 - Motor Contactor (Option AN2), P/N 216386
CODES 47A & 47B - Replacement Starter Contactor (with 24 volt coil)
used beginning 9/03 (Serial No. Code BCI) and Overloads (Option AN10)
When ordering a replacement IEC starter contactor or overload, check the
manufacturer's number on both parts. If the numbers are different than that listed, both
components must be replaced. Replacement coils ( CODE 51) are on page 11.
NOTE: For starter contactor with line voltage coil, see CODE 50 on page 10.

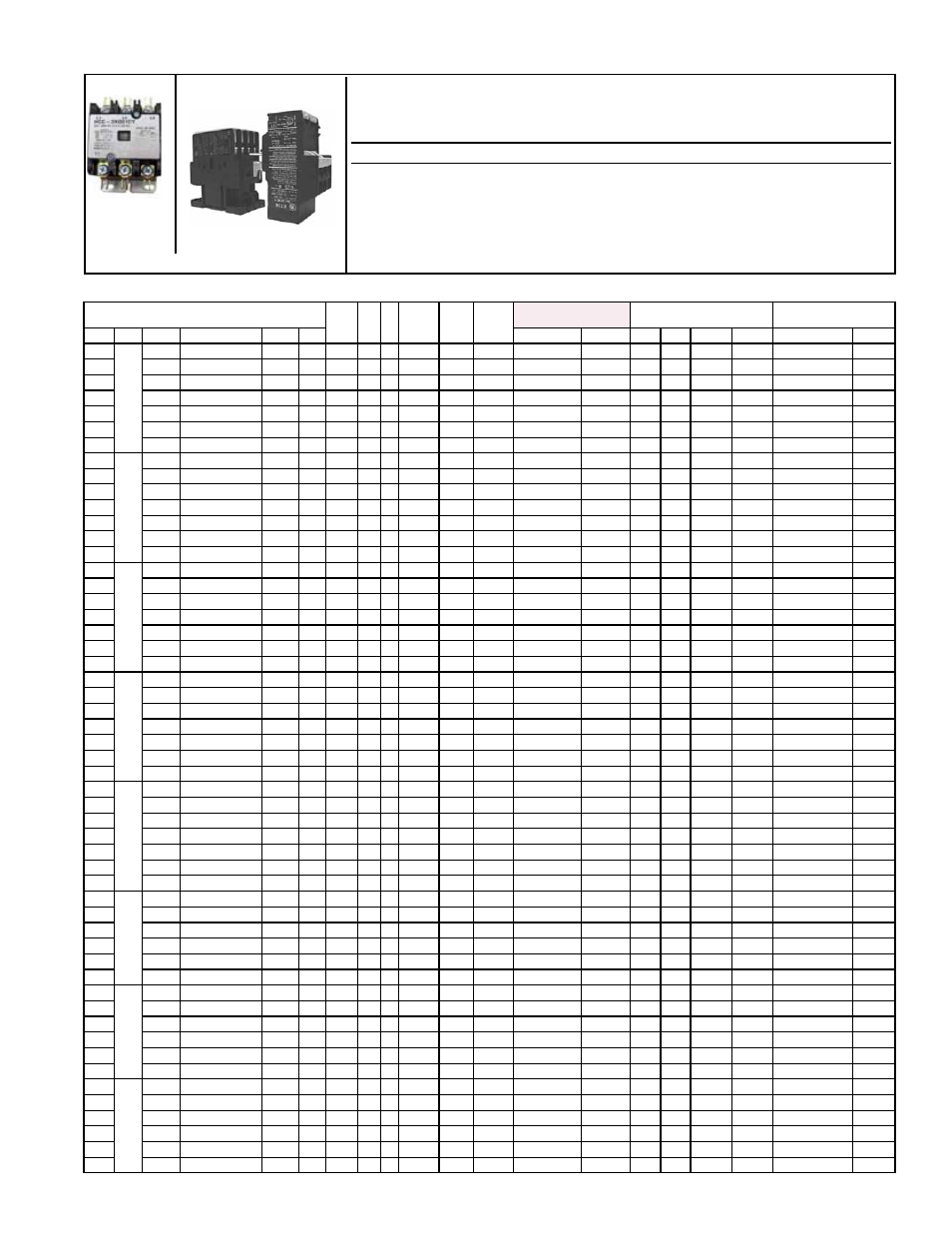

CODE 46 CODES 47A&B and 50 -
Starter (Option AN10)
Starter
Overload
Motor
Contactor
(Option AN2)
(Located in the electrical compartment.)
Starter
Contactor
Blower Motors, Contactor, & Starters w/24V Coil (units mfgd beginning 9/03; Serial No. Date Code BCI)
CODE 45 - Motor
Shaft volt ph Service
Factor
Power
Factor
EFF.
CODE 47A - Starter
Contactor w/24 volt coil
CODE 47B - Starter Overload
CODE 46 - Contactor
(Option AN2)
Type hp P/N Mfr No. Frame fla Mfr No. P/N min max GE # P/N Mfr No. P/N
Open
1/2
102627 AO-BF2054 56Z 8.8 5/8" 120 1 1.2 CL00A310T-1 151275 8.0 12.0 RTA1-N 151193 HCC-3XQOICY 216386
Open 102627 AO-BF2054 56Z 5.1 5/8" 208 1 1.2 CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 102627 AO-BF2054 56Z 4.4 5/8" 240 1 1.2 CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 159183 AO-H880 LA56 2.5 5/8" 208 3 1.3 CL00A310T-1 151275 1.8 2.7 RTA1-J 151189 HCC-3XQOICY 216386
Open 159183 AO-H880 LA56 3.0 5/8" 240 3 1.3 CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 159183 AO-H880 LA56 1.5 5/8" 480 3 1.3 CL00A310T-1 151275 1.3 1.9 RTA1-H 151188 HCC-3XQOICY 216386
Open 202089 AOS - H991 H56 0.9 5/8" 575 3 1.3 CL00A310T-1 151275 0.7 1.1 RTA1-F 151186 ============ ======
Open
3/4
93548 AO-312P629 B56 11.0 5/8" 120 1 1.3 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 93548 AO-312P629 B56 6.3 5/8" 208 1 1.3 CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 93548 AO-312P629 B56 5.5 5/8" 240 1 1.3 CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 36951 AO-312P696 D56 2.9 5/8" 208 3 1.3 CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 36951 AO-312P696 D56 2.6 5/8" 240 3 1.3 CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 36951 AO-312P696 D56 1.3 5/8" 480 3 1.3 CL00A310T-1 151275 1.0 1.5 RTA1-G 151187 HCC-3XQOICY 216386
Open 202090 AOS - H992 H56 1.0 5/8" 575 3 1.3 CL00A310T-1 151275 0.7 1.1 RTA1-F 151186 ============ ======
Open
1
13685 AO-C523 H56 13.0 5/8" 120 1 1.3 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 13685 AO-C523 H56 7.5 5/8" 208 1 1.3 CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 13685 AO-C523 H56 6.5 5/8" 240 1 1.3 CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 36580 AO-H882 F56 3.7 5/8" 208 3 1.2 79% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 36580 AO-H882 F56 3.2 5/8" 240 3 1.2 79% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 36580 AO-H882 F56 1.6 5/8" 480 3 1.2 79% CL00A310T-1 151275 1.3 1.9 RTA1-H 151188 HCC-3XQOICY 216386
Open 158175 AO-E1006 N143T 1.1 7/8" 575 3 1.2 82.5% CL00A310T-1 151275 1.0 1.5 RTA1-G 151187 ============ ======
Open
1.5
194202 AO-C621 56 15.0 5/8" 120 1 1.2 86.4 77.2% CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 194202 AO-C621 56 7.8 5/8" 208 1 1.2 86.4 77.2% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 194202 AO-C621 56 7.5 5/8" 240 1 1.2 86.4 77.2% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 115859 AO-H884 UA56 5.6 5/8" 208 3 1.2 66.4 78.6% CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 115859 AO-H884 UA56 5.0 5/8" 240 3 1.2 66.4 78.6% CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 115859 AO-H884 UA56 2.8 5/8" 480 3 1.2 66.4 78.6% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 158162 AO-E1007 R145T 1.6 7/8" 575 3 1.2 85.3 84.0% CL00A310T-1 151275 1.3 1.9 RTA1-H 151188 ============ ======
Open
2
202581 AO-RB1204A 56H 24.6 5/8" 120 1 CL04A310M-1 151279 21.0 26.0 RTA1-U 151198 HCC-3XQOICY 216386
Open 202581 AO-RB1204A 56H 12.3 5/8" 208 1 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 202581 AO-RB1204A 56H 12.3 5/8" 240 1 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 HCC-3XQOICY 216386
Open 159327 AO-H886 56HZ 7.0 7/8" 208 3 1.2 67 79% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 159327 AO-H886 56HZ 6.6 7/8" 240 3 1.2 67 79% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 HCC-3XQOICY 216386
Open 159327 AO-H886 56HZ 3.5 7/8" 480 3 1.2 67 79% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 HCC-3XQOICY 216386
Open 158176 AO-E1008 P145T 2.1 7/8" 575 3 1.2 86 84.0% CL00A310T-1 151275 1.8 2.7 RTA1-J 151189 ============ ======
Open
3
111560 AO-B735 L56 13.7 5/8" 208 1 1.2 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 ============ ======
Open 111560 AO-B735 L56 12.4 5/8" 230 1 1.2 CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 ============ ======
Open 159185 AO-H845 P56HZ 9.0 7/8" 208 3 1.2 CL00A310T-1 151275 8.0 12.0 RTA1-N 151193 HCC-3XQOICY 216386
Open 159185 AO-H845 P56HZ 8.6 7/8" 240 3 1.2 CL00A310T-1 151275 8.0 12.0 RTA1-N 151193 HCC-3XQOICY 216386
Open 159185 AO-H845 P56HZ 4.3 7/8" 480 3 1.2 CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 HCC-3XQOICY 216386
Open 120019 AO-H954 N56HZ 3.6 7/8" 575 3 1.2 80.3 83.8% CL00A310T-1 151275 2.5 4.1 RTA1-K 151190 ============ ======
Open
5
111562 AO-V211 L184T 28.3 1-1/8" 208 1 CL04A310M-1 151279 25.0 32.0 RTA1-V 151199 ============ ======
Open 111562 AO-V211 L184T 25.6 1-1/8" 240 1 CL04A310M-1 151279 25.0 32.0 RTA1-V 151199 ============ ======
Open 113371 AO-196033 Y56HZ 13.4 7/8" 208 3 1.2 87.2 85% CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 ============ ======
Open 113371 AO-196033 Y56HZ 13.2 7/8" 240 3 1.2 87.2 85% CL01A310T-1 151276 10.0 16.0 RTA1-P 151194 ============ ======
Open 113371 AO-196033 Y56HZ 6.6 7/8" 480 3 1.2 87.2 85% CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 ============ ======
Open 120020 AO-H956 Y56HZ 5.4 7/8" 575 3 1.2 85.9 85.3% CL00A310T-1 151275 4.0 6.3 RTA1-L 151191 ============ ======
Open
7.5
105828 AO-V305 S215T 35.4 1-3/8" 208 1 CL06A311M-1 203687 30.0 43.0 RTA2-E 151206 ============ ======
Open 105828 AO-V305 S215T 32.0 1-3/8" 230 1 CL06A311M-1 203687 30.0 43.0 RTA2-E 151206 ============ ======
Open 105855 AO-E300 213T 22.5 1-3/8" 208 3 CL04A310M-1 151279 21.0 26.0 RTA1-U 151198 ============ ======
Open 105855 AO-E300 213T 19.4 1-3/8" 240 3 CL25A310T-1 151278 17.5 22.0 RTA1-T 151197 ============ ======
Open 105855 AO-E300 213T 9.7 1-3/8" 480 3 CL00A310T-1 151275 8.0 12.0 RTA1-N 151193 ============ ======
Open 158164 AO-E324 S213T 7.8 1-3/8" 575 3 CL00A310T-1 151275 5.5 8.5 RTA1-M 151192 ============ ======
