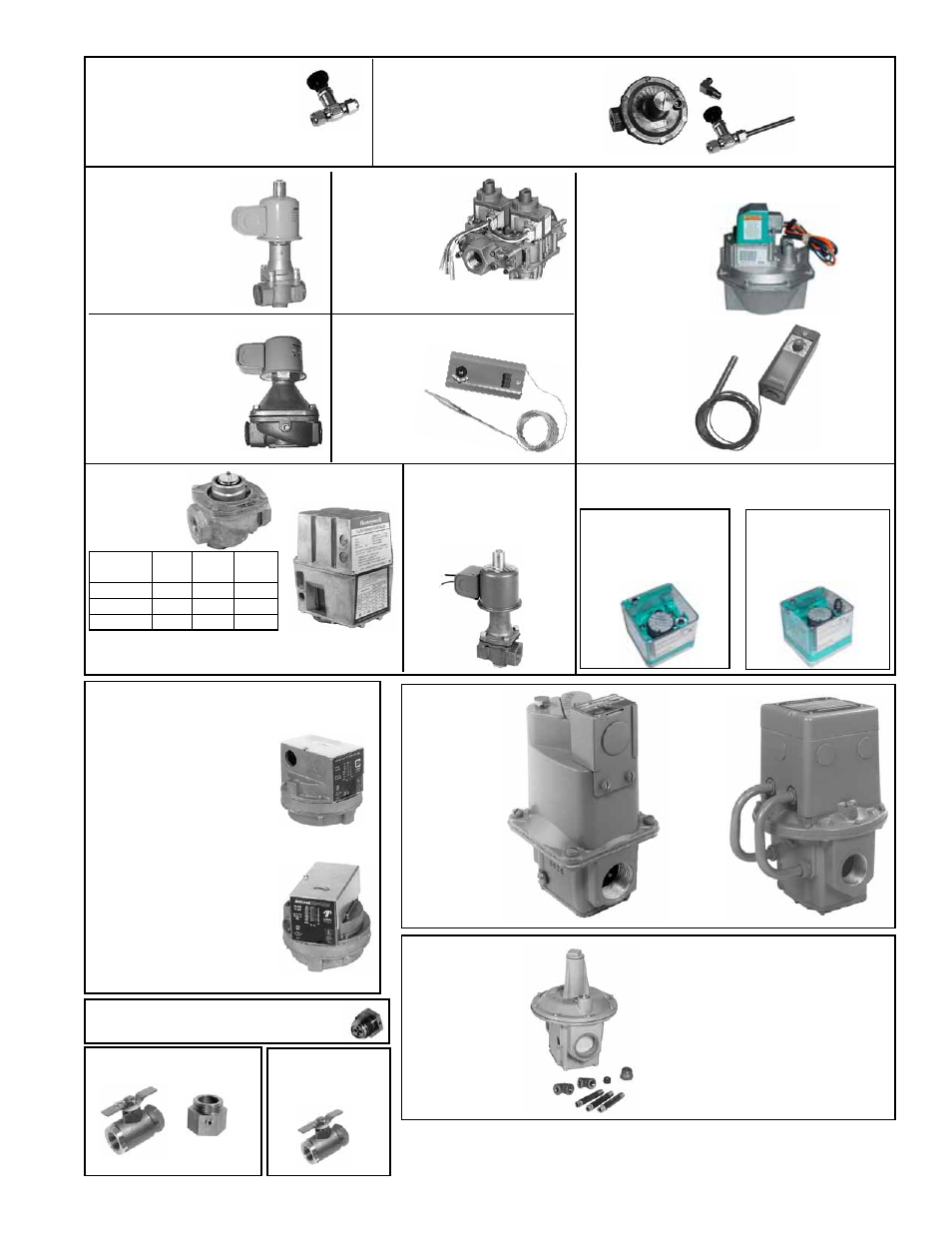

Form P-RDF, P/N 270069 R6, Page 13
CODE 65A - Pilot Needle
Valve, P/N 112462, Nupro
#B-4JNR (on units mfgd
from 1/91 - 3/96)
CODE 66A -
Solenoid Valve,
P/N 86966,
ASCO
#K3A562-U,
120V
Regulator,
P/N 112644
Needle Valve
and Tubing,
P/N 112710
Brass Elbow,
P/N 93388
Components in Gas Control Option AG3 CODE 67 -
P/N 159743,
1-Stage
Gas Valve,
1", natural
or propane
CODE 68 - P/N 126170,
Controller
(used as a
ductstat)
CODE 66B -
Solenoid Valve,
P/N 146472,
ASCO
#K3A561-U, 24V
CODE 69 -
P/N 203866,
2-Stage Gas
Valve
CODE 70 -
P/N 41700,
2-Stage
Ductstat
CODE 65B - Pilot
Needle Valve
Conversion Kit,
P/N 112645, for units
mfgd before 1/91
CODE 72A
(used with
CODE 72B)
CODE 72B
Part of Serial No. Valve
codes J2, J3, J4, K2 and K4
CODE 73 - Vent Valve
3/4", P/N 86996, G/C
#S262; 1", P/N 91084,
G/C S262A0N3FJ5
CODE 76 - Low Gas
Pressure Switch,
P/N 93849, Automatic
Reset, Settings - 50%
of minimum inlet gas
pressure as stated on
the unit rating plate
CODE 77 - High Gas
Pressure Switch,
P/N 93850, Manual
Reset, Settings - 125%
of normal manifold gas
pressure as stated on
the unit rating plate
CODE 78 - Vent Limiter used with
Pressure Switches, P/N 123481
CODE 79B - Valve and
Adapter with Test Port
Valve Adapter
CODE 80 -
Pilot Gas Valve,
P/N 159720
CODE 82 -
Gas Control
Regulators
P/N 87001, 1",
Maxitrol M611
R-88
P/N 89351,
1-1/4",
Maxitrol
MR212D
P/N 91071, 2",
Maxitrol MR212E
Gas Pressure Switches - prior to
Series 3 (9/03)
CODE 74 - Low Gas
Pressure Switch
(automatic),
P/N 204375
Gas Pressure Switches - on RDF Series 3
(manufactured beginning 9/03)
CODE 75 - High
Gas Pressure
Switch (manual
reset), P/N 204297
CODE 83 - Gas
Regulator Kit,
outlet pressure
range 1-12"
(maximum 5
psi)
P/N 124258 (Same as Option
CZ1), Kit includes Maxitrol
1"x1" NPT regulator
P/N 124259 (Same as Option
CZ2), Kit includes Maxitrol
1-1/2"x1-1/2" NPT regulator
Serial No.
Code
Size Gas P/N
J2, J3, J4 1" N or P 86992
K2 1-1/4" N or P 89356
K4 2" N or P 91079
