Form P-RDF, P/N 270069 R6, Page 14

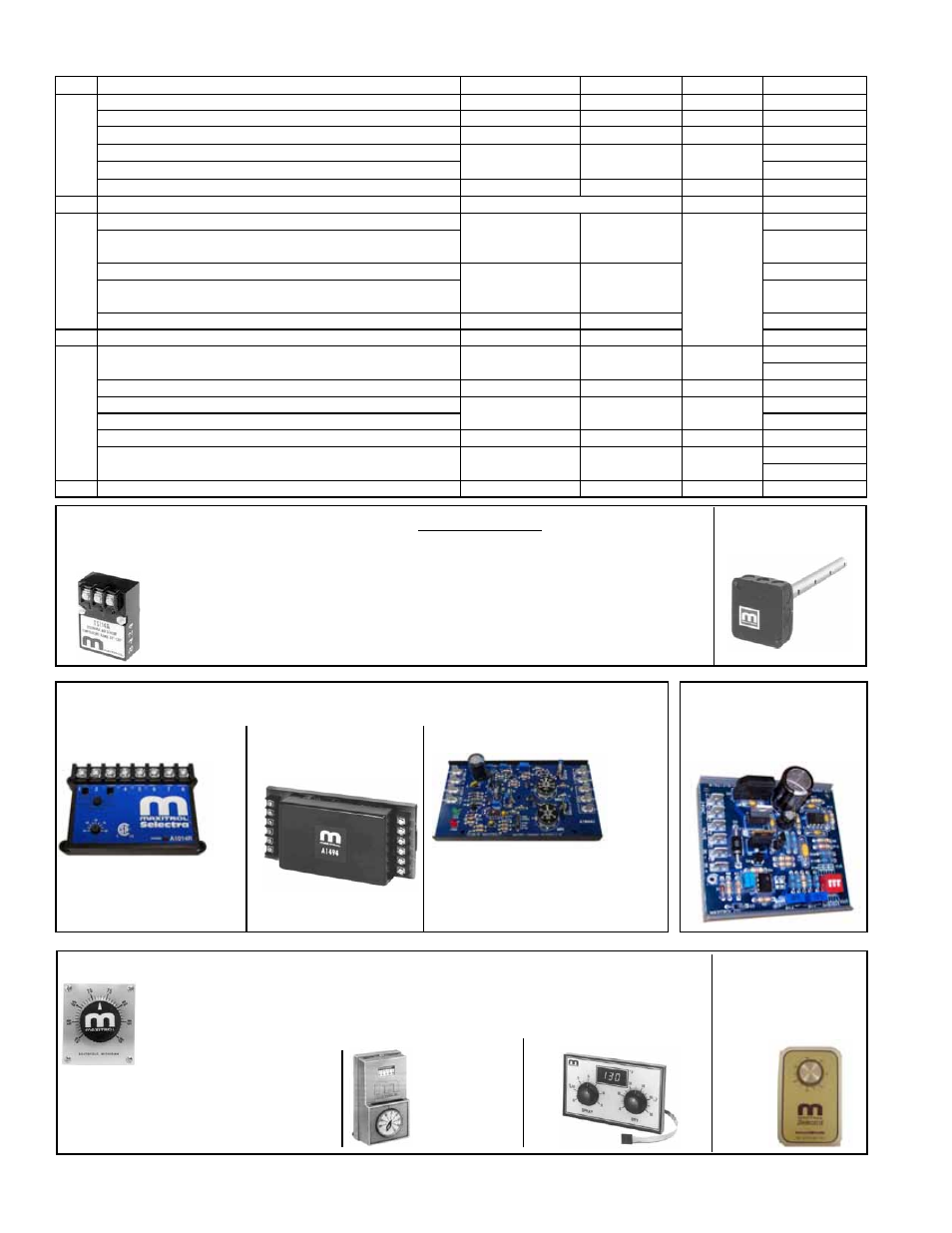

Modulating Gas Controls
CODE Description In Gas Control Opt Serial No. Suffix Location P/N
90
Temperature Sensor, Maxitrol Series 14, #TS114 AG30, AG31 MV-7 Discharge 90324
Temperature Sensor, Maxitrol Series 14A, #TS114A AG32 MV-8 Discharge 87106
Temperature Sensor, Maxitrol Series 14B, #TS114B AG35 MV-8 Discharge 123944
Temperature Sensor, Maxitrol Series 44, #TS144E, 120°F max
AG33 MV-9 Discharge
119617
Temperature Sensor, Maxitrol Series 44, #TS144C, 140°F max 194160
Temperature Sensor, Maxitrol Series 94, #TS194 AG36 MV-B Discharge 133228
91 Mixing Tube, Maxitrol MTI-12 All above Discharge 90323
92
Amplifier, Maxitrol Series 14 & 14A, #A1014R
AG 30, 31, 32 MV-7, MV-8
Electrical
Control
Compartment
(See page
3.)
148590
Replacement Kit for Amplifier P/N 148590, Model A1014L or
A1014U, or P/N 86976
268301
Amplifier, Maxitrol Series 44, #A1044U
AG33 MV-9
268274
Replacement Kit for Amplifier P/N 194159 ( 1044CL); P/N 157915
( A1044EL); P/N 119616 (A1044E), and P/N 86989 (A1044)
268302
Amplifier, Maxitrol Series 94, A1494 AG36 MV-B 133229
93 Signal Conditioner, Maxitrol AG37 MV-C 134170
94
Temperature Selector, Maxitrol Series 14, #TD114 AG30, AG31 MV-7 Remote
86988 (USA)
101165 (Canada)
Temperature Selector, Maxitrol Series 14A, #TD114A AG32 MV-8 Remote 87107
Temperature Selector, Maxitrol Series 14B, #TD114B, 120-160°F AG35
MV-8 Remote
159285
Temperature Selector, Maxitrol Series 14B, #TD114B, 120-140°F 123943
Selectrastat (temperature selector), Maxitrol Series 44, #T-244 AG33 MV-9 Space 86990
Temperature Selector, Maxitrol Series 94, #TD294E-609-0818 AG36 MV-B Remote
133230, 120°F
159287, 160°F
95 Overriding Thermostat, Series 14, #T115 AG 30, 31, 32 MV-7, MV-8 Space 24857
CODE 90 -
Temperature
Sensor
P/N 90324, Maxitrol #TS114;
P/N 87106, Maxitrol #TS114A
(illustrated);
P /N 123944, Maxitrol #TS114B;
P/N 119617, Maxitrol #TS144E;
P/N 194160, Maxitrol #TS144C;
P/N 133228, Maxitrol TS194A
CODE 91 - Mixing
Tube, P/N 90323
CODE 92 - Amplifiers
(Amplifiers are not interchangeable and must match the temperature sensor.)
P/N 148590,
Maxitrol #A1014R
P/N 268274, Maxitrol #A1044U
CODE 93 - Maxitrol
Signal Conditioner,
P/N 134170 (for
computer control)
IMPORTANT NOTE: When replacing a tem-
perature sensor on a Maxitrol MV-9 system
(Option AG33), check the Model No. on the
sensor. P/N 119617 or 194160 is used on
units manufactured beginning 2/92; P/N
87041 is used on units manufactured prior to
2/92. Sensors are not interchangeable; the
sensor MUST match the amplifier.
P/N 133229, Maxitrol
#A1494
To replace P/N 148590,
A1014L or A1014U, or P/N
86976, order Replacement
Kit P/N 268301
(Shown
without
the
cover.)
To replace P/N 194159 ( A1044CL);
P/N 157915 ( A1044EL); P/N 119616
( A1044E), or P/N 86989 (A1044),
order Replacement Kit P/N 268302
CODE 95 -
P/N 24857, Maxitrol
#T115, Overriding
Thermostat, Option
AG33
CODE 94 - Temperature Selectors (see chart for option application)
P/N 86988, TD114 U.S. Models, Range 55-90°F
(selector with box, P/N 156085);
P/N 101165, TD114, Canadian Models,
Range 50-75°F;
P/N 87107, TD114A,
Range 80-130°F;
P/N 159285, TD114B,
Range 120-160°F
P/N 133230 - Maxitrol
#TD294E-609-0818,
Dual Temperature
Selector for Paint Booth
Application, Option AG36
P/N 86990,
Selectrastat
Maxitrol
T-244
