Reznor RDF Parts Manuals - Manual (Page 5)

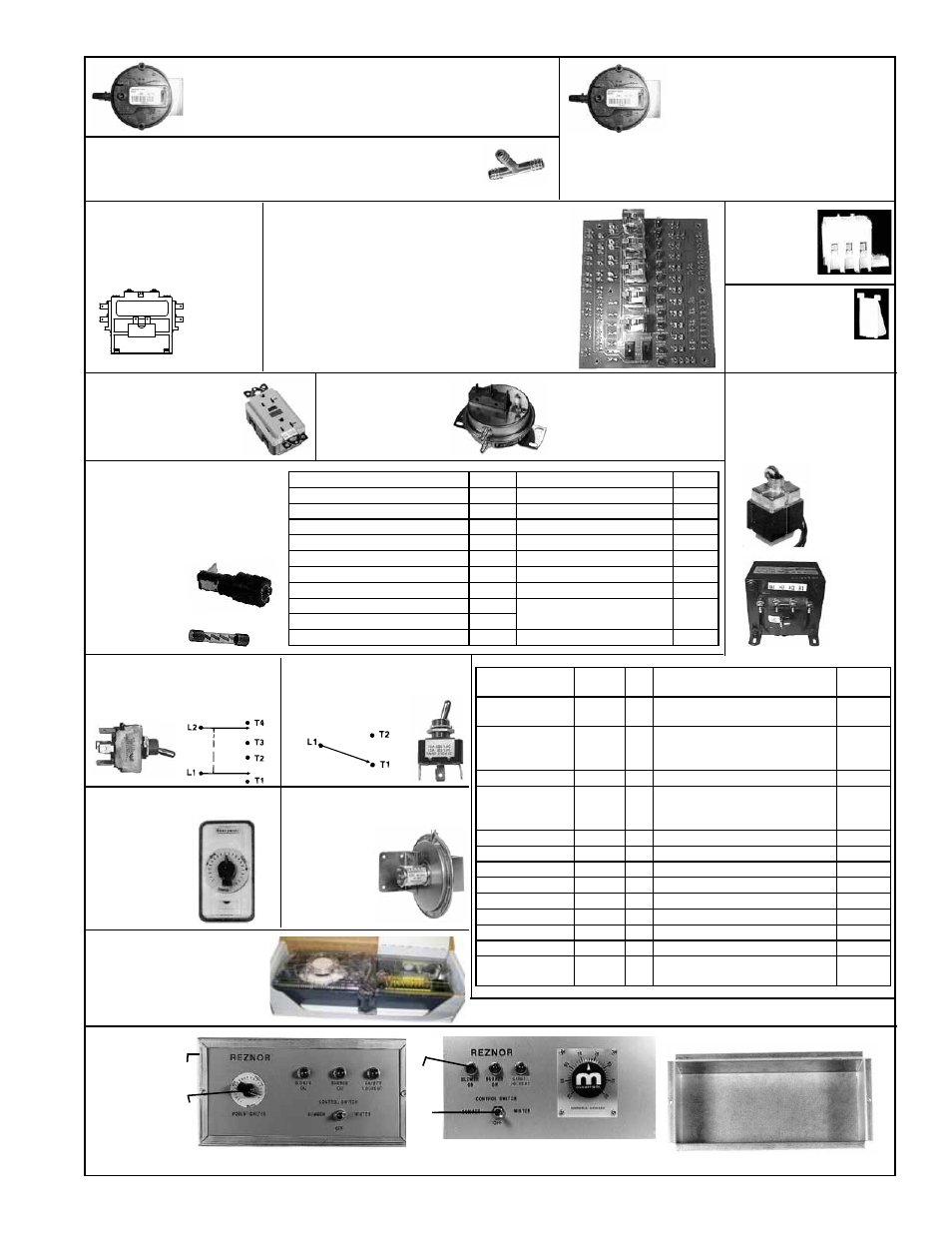

Form P-RDF, P/N 270069 R6, Page 5
CODE 26A - Dirty
Filter Pressure
Switch,
P/N 105507
CODE 22A, Replacement Lights for
Circuit Analyzer Board - P/N 125189
Series 3; prior to Series 3, P/N 101889
CODE 22B, Replacement Relay for
Board, P/N 151271
CODE 23 -
Terminal
Block,
P/N 144972
CODE 24 -
Terminal Block
Adapter,
P/N 144973
CODE 20A - Air Pressure
Switch, P/N 207177
CODE 20B - Air Pressure Switch, P/N 207179
CODE 25 -
Convenience
Outlet Receptacle,
P/N 96912
CODE 15 - Low Air Pressure Switch, P/N 207178
CODE 16 - High Air Pressure Switch, P/N 207176
CODE 17 - Tee for Air Pressure Tubing, P/N 87482
CODE 18A - Clear Plastic Tubing, P/N 102401 (36")
CODE 27A - Fuseholder,
Replaced with CODE 27B
Fuseholders and Fuses
CODE 27B - Fuseholder,
P/N 60241
(used with
spark ignition)
CODE 28 -
Fuse
Replace pressure switch P/N 86987 with Kit P/N 193807.
Replace pressure switch P/N
87250 with Kit P/N 193809.
Replace pressure switch P/N 87249 with Kit P/N
193808.
CODE 22 - Circuit Analyzer Board, P/N
151263 (Std beginning with RDF Series
3. Option BS2 prior to Series 3.)
CODE 29 -
Transformers
See P/N's in table
below.
40VA
Replace pressure switch P/N 86986 with Kit P/N 193806.
CODE 18B - Yellow Plastic Tubing, P/N 122855 (14")
CODE 26B - Clear
Plastic Tubing,
3/16", P/N 179302
CODE 21 - Contactor,
24V, (used with Option
BM80 and BM81
manifold, P/N 203935
Description P/N Description P/N
2.5 Amp, #3210 (spark ignition) 61542 Bussman FRN-R175 91595
Bussman FRN-R15, 230/1 14667 Bussman FRS-R3.5, 460/3 89266
Bussman FRN-R30, 208/230/3 31892 Bussman FRS-R8, 460/3 89268
Bussman FRN-R10, 208/3 89265 Bussman FRS-R5, 460/3 89267
Bussman FRN-R7, 230/3 16207 Bussman FRS-R15, 460/3 87638
Bussman FRN-R25, 208/3 45054 Bussman FRS25 31891
Bussman FRN-R60 31895 Bussman FRS-R40 89936
Bussman FRN-R50 87957 8 Amp, Fusetron 3AG-8
(hot surface ignition)
38636
Bussman FRN-R90 89931
Bussman FRN-R150 91077 5 Amp, Fusetron MDL 3AG 90335
CODE 30 - DPDT System
Switch, P/N 101900
(winter/off/summer)
CODE 31 -DPDT System
Switch, P/N 101901
(service switch)
CODE 32 - Potentiometer,
P/N 16011
200-
500 VA
Volts
In
Volts
Out
VA Manufacturer's No.
Reznor ®
P/N
120/240 24 250 TB1-81146 (used with hot sur-
face ignition)
38634
120 24 40
Basler #BE141650-WAA
(Used w/spark ignition) (2
required to replace P/N 61806)
103055
120 24 500 Hevi-Duty T500E 159842
208/240 24 40
Basler #BE21539001
(2 required to replace P/N
61807)
103497
208/230/460 24 500 Hevi-Duty T500CK 159843
208/230/460/575 110 275 C0275KAU E5E 105202
208 110 500 Hevi-Duty #2227003T00 86998
208 24 200 Hevi-Duty #2223034T00 39094
208/240/480/575 24 200 C0200KAT 39095
230/460 110 500 Hevi-Duty #2227001T00 86997
208/240/480/575 24 200 Heavy Duty #2123105t00 39095
208/240/480/575 120 275 Eaton #C0275KAU 105202
460 24 40 Basler #BE23975001 (2
required to replace P/N 61808)
103498
(remote damper
motor control
in Air
Control
Options AR
20 & 23)
CODE 33 - Null Pressure
Switch, P/N 88052
CODE 34 - Photohelic
Pressure Sensor,
P/N 158893
(remote damper motor
control in Opts AR 36&37)
CODE 35 - Sampling Tube only for Code 34, P/N 159714
(remote
damper
motor control
in Options
AR 19 & 22)
Remote
Console
(Note:
Console
height
changed
10/01.)
41
32
CODE 40 - Console Box
42
31
See P/N's and dimensions on the top of page 6.
