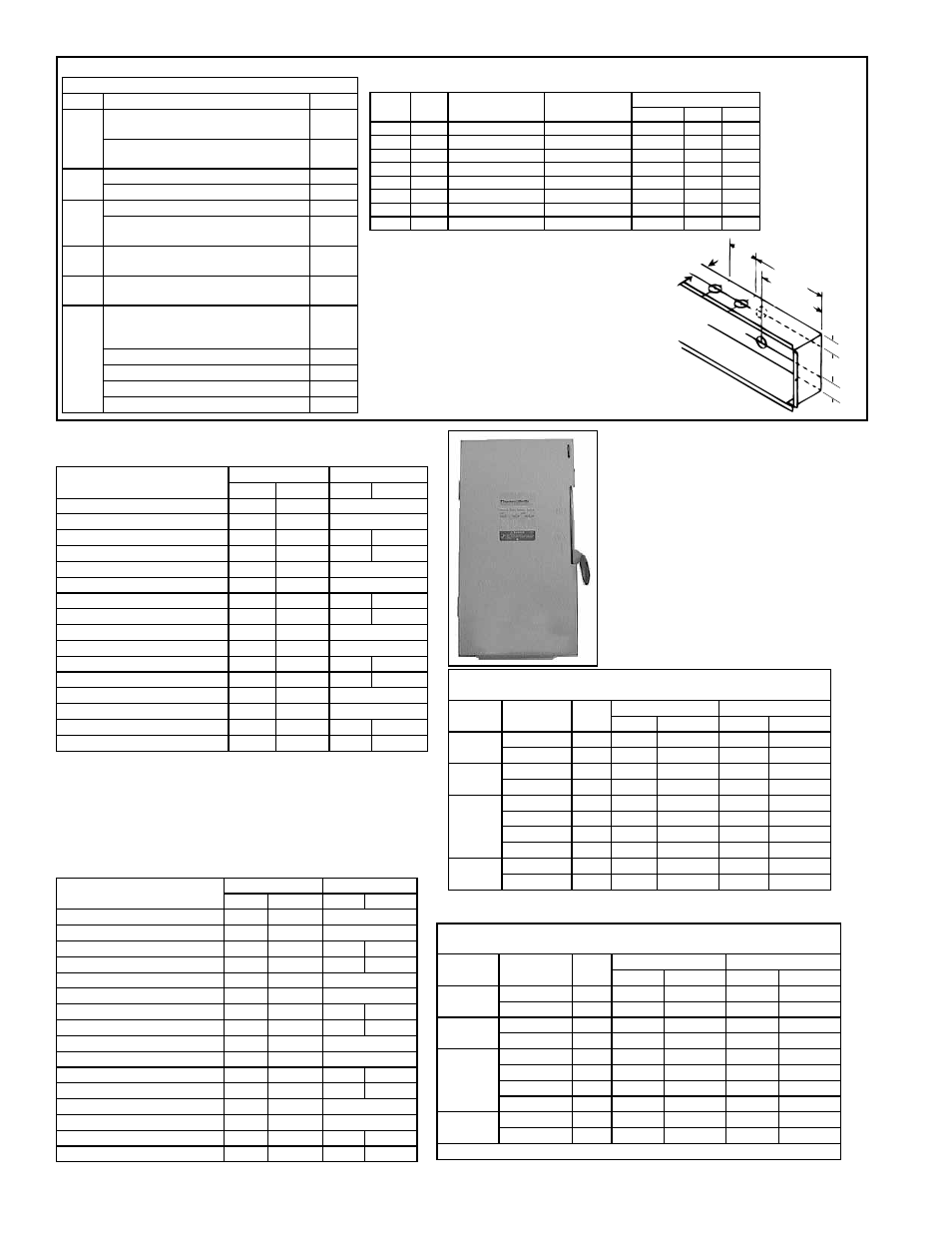

Form P-RDF, P/N 270069 R6, Page 6
2-3/8
(60)
6 (152)
5-15/32 (139)
1-5/16 (33)
1-3/32 (28)
4-7/16
(113)
1-3/32 (28)
Disconnect Switch
Technical Data of the Remote Console (Variations depend on options selected;
consult custom wiring diagram for controls and to determine wiring required.)
Control
Switch
Qty of
Lights*
** Temperature
Selector or Sensor Potentiometer ***
Dimensions (inches)
L****
H**** D
Yes 3 Yes No 10-13/16 7-3/8 2-5/8
Yes 3 No No 10-13/16 7-3/8 2-5/8
Yes 3 Yes Yes 15-13/16 7-3/8 2-5/8
Yes 3 No Yes 10-13/16 7-3/8 2-5/8
Yes 4 Yes No 15-13/16 7-3/8 2-5/8
Yes 4 No Yes 15-13/16 7-3/8 2-5/8
Yes 4 Yes Yes 15-13/16 7-3/8 2-5/8
Yes 4 No No 15-13/16 7-3/8 2-5/8
CODE 43 - OUTDOOR
Disconnect Switches
USA Only Canada Only
Opt P/N Opt P/N
30 Amp, 240V, Non-Fusible CP5 40269 --
30 Amp, 240V, Fusible CP6 87147 --
30 Amp, 600V, Non-Fusible CP7 50367 CP59 208054
30 Amp, 600V, Fusible CP8 50368 CP42 208046
60 Amp, 240V, Non-Fusible CP30 161469 --
60 Amp, 240V, Fusible CP17 89932 --
60 Amp, 600V, Non-Fusible CP38 155012 CP61 208056
60 Amp, 600V, Fusible CP20 90974 CP44 208048
100 Amp, 240V, Non-Fusible CP31 162834 --
100 Amp, 240V, Fusible CP18 90973 --
100 Amp, 600V, Non-Fusible CP39 155013 CP63 208058
100 Amp, 600V, Fusible CP36 155010 CP46 208050
200 Amp, 240V, Non-Fusible CP32 155007 --
200 Amp, 240V, Fusible CP19 91076 --
200 Amp, 600V, Non-Fusible CP40 155014 CP65 208060
200 Amp, 600V, Fusible CP37 155011 CP48 208052
General Guide to Outdoor/Raintight Switches by Option Code
(unit motor/voltage availability varies by model/size)
Voltage/
Phase
Motor HP Amps
USA Outdoor Canada Outdoor
Fusible Non-Fuse Fusible Non-Fuse
115/1 1/4 to 1-1/2 30
CP6 CP5 CP42 CP59
2 to 3 60 CP17 CP30 CP44 CP61
208/1 &
230/1
1/4 to 3 30 CP6 CP5 CP42 CP59
5 to 10 60 CP17 CP30 CP44 CP61
208/3 &
230/3
1/4 to 5 30 CP6 CP5 CP42 CP59
7-1/2 to 15 60 CP17 CP30 CP44 CP61
20 to 25 100 CP18 CP31 CP46 CP63
30 200 CP19 CP32 CP48 CP65
460/3 &
575/3
1/4 to 15 30 CP8 CP7 CP42 CP59
20 to 30 60 CP20 CP38 CP44 CP61
CODE 44 - INDOOR
Disconnect Switches
USA Only Canada Only
Opt P/N Opt P/N
30 Amp, 240V, Non-Fusible CP1 40267 --
30 Amp, 240V, Fusible CP2 40268 --
30 Amp, 600V, Non-Fusible CP3 50365 CP58 208053
30 Amp, 600V, Fusible CP4 50366 CP41 208045
60 Amp, 240V, Non-Fusible CP21 161462 --
60 Amp, 240V, Fusible CP17 89932* --
60 Amp, 600V, Non-Fusible CP23 161464 CP60 208055
60 Amp, 600V, Fusible CP20 90974* CP43 208047
100 Amp, 240V, Non-Fusible CP22 161463 --
100 Amp, 240V, Fusible CP18 90973* --
100 Amp, 600V, Non-Fusible CP24 164330 CP62 208057
100 Amp, 600V, Fusible CP36 155010* CP45 208049
200 Amp, 240V, Non-Fusible CP26 155005 --
200 Amp, 240V, Fusible CP19 91076* --
200 Amp, 600V, Non-Fusible CP35 155009 CP64 208059
200 Amp, 600V, Fusible CP37 155011* CP47 208051
"General Guide to Indoor Disconnect Switches by Option Code
(unit motor/voltage availability varies by model/size)"
Voltage/
Phase
Motor HP Amps
USA Indoor Canada Indoor
Fusible Non-Fuse Fusible Non-Fuse
115/1
1/4 to 1-1/2 30 CP2 CP1 CP41 CP58
2 to 3 60 CP27 CP21 CP43 CP60
208/1 and
230/1
1/4 to 3 30 CP2 CP1 CP41 CP58
5 to 10 60 CP27 CP21 CP43 CP60
208/3 and
230/3
1/4 to 5 30 CP2 CP1 CP41 CP58
7-1/2 to 15 60 CP27 CP21 CP43 CP60
20 to 25 100 CP28 CP22 CP45 CP62
30 200 CP29 CP26 CP47 CP64
460/3 and
575/3
1/4 to 15 30 CP4 CP3 CP41 CP58
20 to 30 60 CP33 CP23 CP43 CP60
* Actually an outdoor switch.
* 3 - Blower On, Burner On, and Safety Lockout; 4th light is
Dirty Filter Indicator.
** On the console with Gas Control Options AG 30, 31, 32,
33, 47, 48, 51.
*** On the console with Air Control Options AR19 or AR22.
**** Subtract 7/8" when recessing.
Replacement Components
CODE Description P/N
40
Remote Console Box
10-9/16"x7-1/4"x2-5/8"
107010
Remote Console Box
15-9/16"x7-1/4"x 2-5/8"
107011
41 Mounting Ring for 10-1/16" long box 107014
Mounting Ring for 15-1/16" long box 107015
42
Light w/red lens, Solico 5TD1L-R-B5 101889
Bushing for installing light above on
old-style console
106747
31,
pg 5
DPDT Switch, Cutler Hammer
#7561K6
101900
32,
pg 5 Potentiometer, Honeywell 112894FA 16110
94, pg
14
Temperature Selector,
Option AG 30, 31
86988
or
101165
Temperature Selector, Opt AG32 87101
Temperature Selector, Opt AG33 86990
Temperature Selector, Opt AG47 204455
Temperature Selector, Opt AG 8, 51 204451
Remote Console (cont'd)
