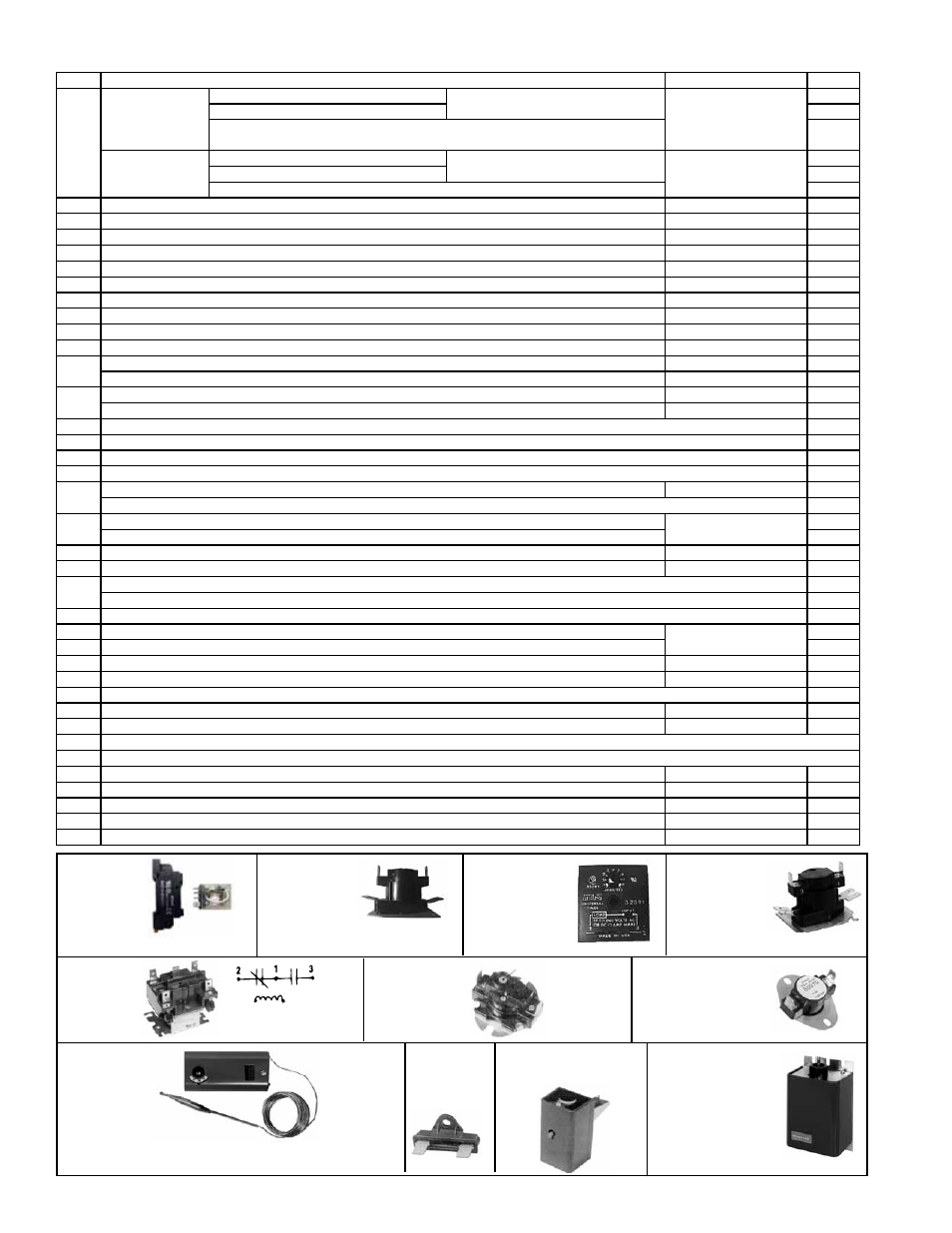

Form P-RDF, P/N 270069 R6, Page 4

CODE 3 -

Time Delay

Relay

(Freezestat),

P/N 89661

CODE 4 -

Prepurge

Time Delay

Relay,

P/N 52887

CODE 5 -

Relay,

P/N

110656

CODE 2 -

Time Delay

Relay

(Low Fire),

P/N 89254

(On units mfgd

prior to 3/96)

Electrical Components

CODE 9 -

ECO Limit,

P/N 82414

CODE 8, -

Adjustable

Outside Air

Cutoff Control

and Freezestat,

P/N 126170

CODE 6 -

Limit

Switch,

P/N 82610

Reset Button

CODE 7 -

Limit,

P/N 86979

(Automatic Reset)

(Replaces P/N 16108)

Grommet

Clamp,

P/N 131993;

Cable

Clamp,

P/N 132065

CODE 14 -

Spark

Generator,

P/N 86974
(On units mfgd

prior to 3/96)

CODE 13 - Firestat,

P/N 42782

CODE Description

Location

P/N

Relay, SP-ST or

SP-DT, 24V Coil

Relay

Units manufactured after 8/11

Control Compartment

211411

Relay Socket Base

211415

Replacement Kit for units mfgd prior to 8/11 (replaces P/N's 14747, 18549, 98118,

and 103317)

263527

Relay, SP-ST or

SPDT, 120V Coil

Relay

Units manufactured after 8/11

Control Compartment

211414

Relay Socket Base

211415

Replacement Kit for units mfgd prior to 8/11 (replaces P/N's 103318 & 103319)

263530

Time Delay Relay (Low Fire), 24V Coil, Thermodisc #F12S20, Style 305139

Control Compartment

89254

Time Delay Relay (for freezestat bypass), T&B Agastst #VTM1ULA

Control Compartment

89661

Prepurge Time Delay Relay, 24V Coil, Thermodisc #12S20

Control Compartment

52887

Relay, 24V Coil, Essex #91-102006-1300

Control Compartment

110656

Manual Reset Limit, Thermodisc 330545, L150

Blower Discharge

82610

Automatic Limit, L135, Thermodisc #60T11-312616

Blower Discharge

86979

Outside Air Cutoff (High Ambient Limit) & Freezestat, J/C #A19AAF-12C

Control Compartment

126170

Flame Safety Limit (ECO), Opens 306°F, Thermodisc #G4AP0200152C

Gas Train Compartment 82414

Firestat, Honeywell #L4029E1029, 200°F

Blower Discharge

42782

Spark Generator, 120V, Honeywell #Q624A1014

Control Compartment

86974

Low Air Pressure Switch, IS2-0233-5275 for RDF Series 3

Control Compartment

207178

Low Air Pressure Switch Kit replaces P/N 86986, #FS4197-166 or PPS10175-3043

Control Compartment

193806

High Air Pressure Switch, IS2-0233-5273 for RDF Series 3

Control Compartment

207176

High Air Pressure Switch Kit replaces P/N 86987, #FS4197-164 or PPS10175-3041

Control Compartment

193807

Plastic Tee for Air Pressure Tubing, 3/16", 1/16" I.D.

87482

18A Yellow Plastic Tubing for air pressure switch, 3/16" O.D. x 14"

122855

18B Clear Plastic Tubing for Air Pressure Switch, 3/16" O.D. x 3 ft

102401

Bushing and Insect Screen for Sensing Probes (not illustrated)

96794

20A Air Pressure Switch, IS2-0233-5274 for RDF Series 3

Control Compartment

207177

Air Pressure Switch Kit replaces P/N 87250, #FS4197-165 or PPS10175-3042

193809

20B Air Pressure Switch, IS2-0233-5276 for RDF Series 3

Control Compartment

207179

Air Pressure Switch Kit replaces P/N 87249, #FS4197-171 or PPS10175-3044

193808

Contactor, HCC-2XQ01AA, 24V (used with Option BM80 and BM81 manifold)

Control Compartment

203935

Diagnostic Circuit Analyzer Board

Control Compartment

151263

22A Replacement Bulb for Circuit Analyzer Board, RDF Series 3

125189

Replacement Light for Circuit Analyzer Board (Option BS2 prior to RDF Series 3)

101889

22B Replacement Relay for Code 22, SKMP-2C-24AC

151271

Terminal Block, #KT3

Control Compartment &

Remote Console

144972

Terminal Block Adapter

144973

Convenience Outlet Receptacle, Hubbell #GF5362 (separate electrical supply)

Control Compartment

96912

26A Dirty Filter Pressure Switch, Tri-Delta #AP4434, set at .3" w.c.

Control Compartment

105507

26B Clear Plastic Tubing for Dirty Filter Pressure Switch, 3/16" O.D. x 112"

179302

27A Fuseholder, replaced with CODE 27B - effective Aug., 2012

Control Compartment

---

27B Fuseholder, Buss Model HTB-481

Control Compartment

60241

Fuses - See descriptions and list of P/N's on page 5.

Transformer - See descriptions and list of P/N's on page 5.

DPDT System Switch, Winter/Off/Summer, Cutler Hammer 7561K6

Space (Console)

101900

SPDT Switch (service switch), Cutler Hammer 7505K6

Control Compartment

101901

Null Pressure Switch, .01" - .20" w.c., Dwyer #1640-0

Heated Space

88052

Potentiometer, Honeywell 112894FA

Space/Remote Console

16110

Photohelic Pressure Sensor in Options AR36 & AR37, 3000-00-N24 Vac

Remote

158893

CODE 1 -

Relay and

Socket

Base
