Reznor RDF Parts Manuals - Manual (Page 15)

Form P-RDF, P/N 270069 R6, Page 15

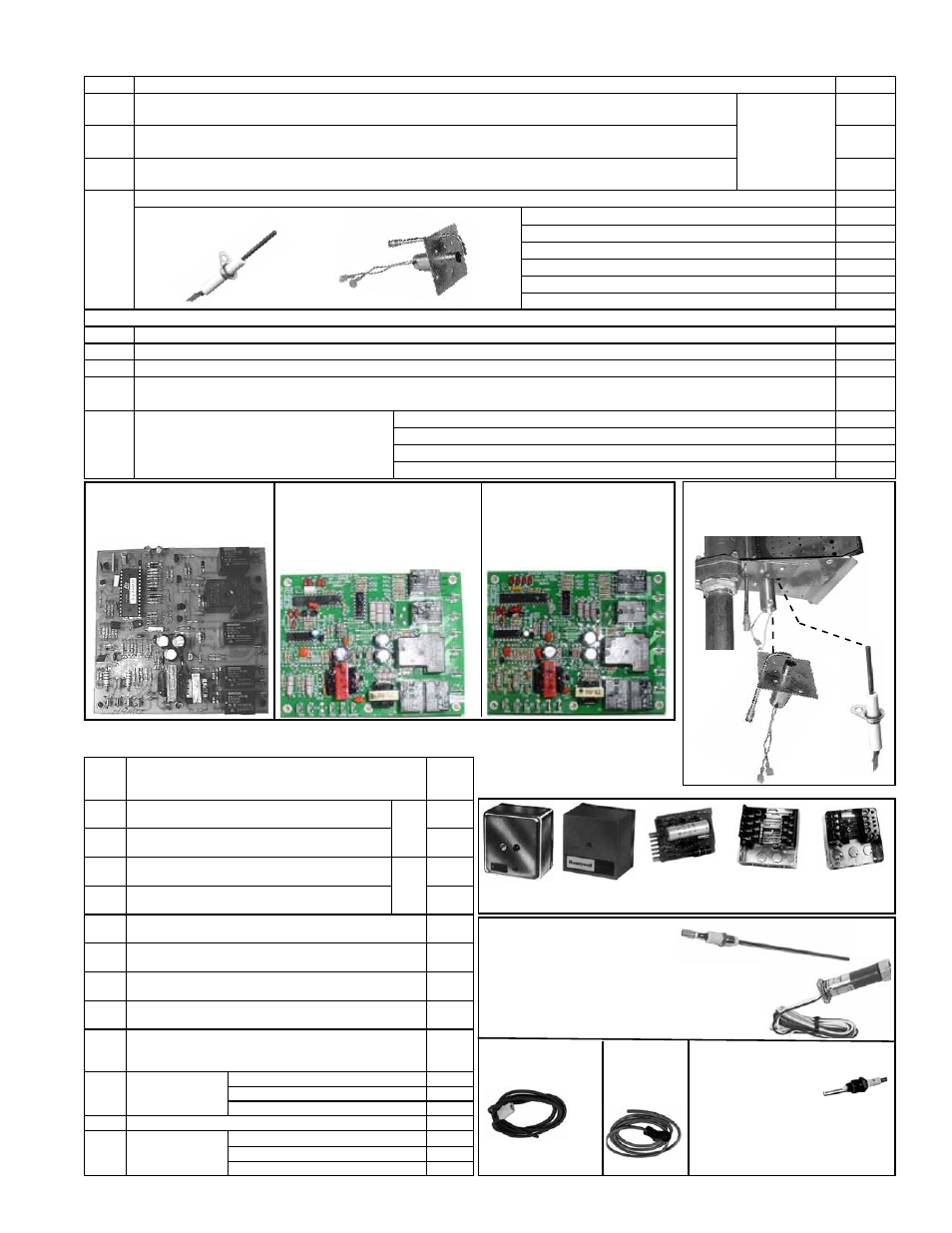

Ignition System - Hot Surface Ignition (Ignition system changed from spark to hot surface beginning 3/96.)
Pilot and
Ignitor
Flame
Sensor
CODE 100A - P/N 157953,
Hot Surface Ignition
Module, RAM H4MC24-01
CODE 100B - P/N 204376,
Hot Surface Ignition
Module, Synetek
IH11040B-C, for burner
with a single flame rod
CODE 100C - P/N
204166, Hot Surface
Ignition Module, synetek
IH11040C-C, for burner
with a double flame rod
Pilot, Hot Surface Ignitor,
and Flame Sensor on RDF
Series 3 Burner
Location
(not
shown)
CODE
102
CODE
103
CODE
104
CODE Description of Parts of Hot Surface Ignition System and Conversion Kits P/N
100A Hot Surface Ignition Module, RAM #H4MC24-01- applies to RDF systems manufactured from
3/96 to 9/03 (prior to RDF Series 3) - Serial No. Ignition System Code 72 Located in
the electrical
control
compartment.
157953
100B Hot Surface Ignition Module, Synetek IH11040B-C, single flame rod (Used on RDF Series 3 with
burner sizes from 250-1500 MBH, Options BL1-BL6) - Serial No. Ignition System Code 82
204376
100C Hot Surface Ignition Module, Synetek IH11040C-C, dual flame rod (Used on RDF Series 3 with
burner sizes from 1750-3000 MBH, Options BL7-BL13) - Serial No. Ignition System Code 81
204166
101
Pilot Assembly for Hot Surface Ignition prior to RDF Series 3 (9/03) including: 120048
Pilot 122840
Flame Sensor, J/C #Y75MK-1D 134706
Screw, #8-1/2" long 38529
Pilot bushing 121730
Hex head cap screw, #10-32x3/8" lg 90167
Hot Surface Ignitor, Norton #401E 121865
Pilot, Sensor, and Ignitor for Model RDF Series 3
102A Pilot for RDF Series 3, 250-1500 MBH 127910
102B Pilot for RDF Series 3, 1750-3000 MBH 122840
103 Hot Surface Ignitor, Norton #401E 121865
104 Flame Sensor, J/C #Y75MK-1D (Note: CODE 104 is for replacement of the flame sensor at the ignitor end of the
burner only. 1750-3000 MBH burners have a second flame sensor. For replacement, see CODE 119.)
134706
105
Ignition Conversion Kit from Spark Pilot
with either a rectification type (CODE 94)
or ultraviolet flame (CODE 95) sensor to
hot surface ignition.
for unit with a 200VA transformer 146268
for 115V unit with an 80VA transformer 146318
for 208V unit with an 80VA transformer 146319
for 240V, 480V, or 575V unit with an 80VA transformer 146320
CODE
Description of Components of Spark Ignition
System (Discontinued on units beginning 3/96.
See conversion kits in CODE 105, above.)
P/N
106 Flame Sensor Safety Relay, Rectification,
Honeywell #RA890F1270 (Serial No. Code 58) With
Code
113
86972
107 Flame Sensor Safety Relay, Rectification,
Honeywell #R7795B-1009 (less Code 110)
89407
108 Flame Sensor Safety Relay, Ultraviolet,
Honeywell #RA890G1310 (Serial No. Code 59) With
Code
114
89409
109 Flame Sensor Safety Relay, Ultraviolet,
Honeywell #R7795A-1009 (less CODE 110)
89436
110 Prepurge Timer Board (prepurge relay), M/H
ST795A-1031 (used in CODES 107 and 109)
89408
111 Subbase only used with CODES 107 (P/N 89407) &
109 (P/N 89436) , Honeywell #Q795A-1004
89410
112 Subbase only used with CODES 106 (P/N 86972) &
108 (P/N 89409), Honeywell #Q270A-1024
86973
113 Flame Probe, Auburn #AA67-7892-1 (std on units
mfgd before 9/88; used w/CODE 106 or 107)
87937
114
Ultraviolet Minipeeper Detector, Honeywell #C7027A
(std on units from 9/88 -2/96; optional on prior units;
used w/Code 108 or 109)
89411
115 Flame Rod Wire
Assembly
RDF 1-20, 40, 50, 65 87904
RDF 2-80, 120 89614
RDF 3-180, 260 113952
115A Housing only for Code 95, AMP 1-48016-0 19127
116 Ignitor Wire
Assembly
RDF 1-20, 40, 50, 65 87906
RDF 2-80, 120 89627
RDF 3-180, 260 91362
Ignition System - Spark Ignition System (discontinued 3/96)
Flame Sensor Safety
Relays and Subbases
Codes
106 & 108
Codes 107
& 109
Code 110,
P/N 89408
Code 111,
P/N 89410
Code 112,
P/N 86973
Code 113, P/N 87937, Flame
Probe (std on units with
date codes AJH to ANH)
Code 114, P/N 89411, Ultraviolet
Detector (std on units with date codes
from ANI to AVB; optional on prior units)
Code 115, Flame
Rod Wire Assy
Code 116,
Ignitor
Wire Assy
Spark Plug for Spark Ignition
System
Code 117A, P/N
87936 (illustrated)
Code 117B, P/N 179342,
#23539 Sapco 14mm (used
prior to Code 97A)
Housing only,
P/N 19127
