Form P-RDF, P/N 270069 R6, Page 17

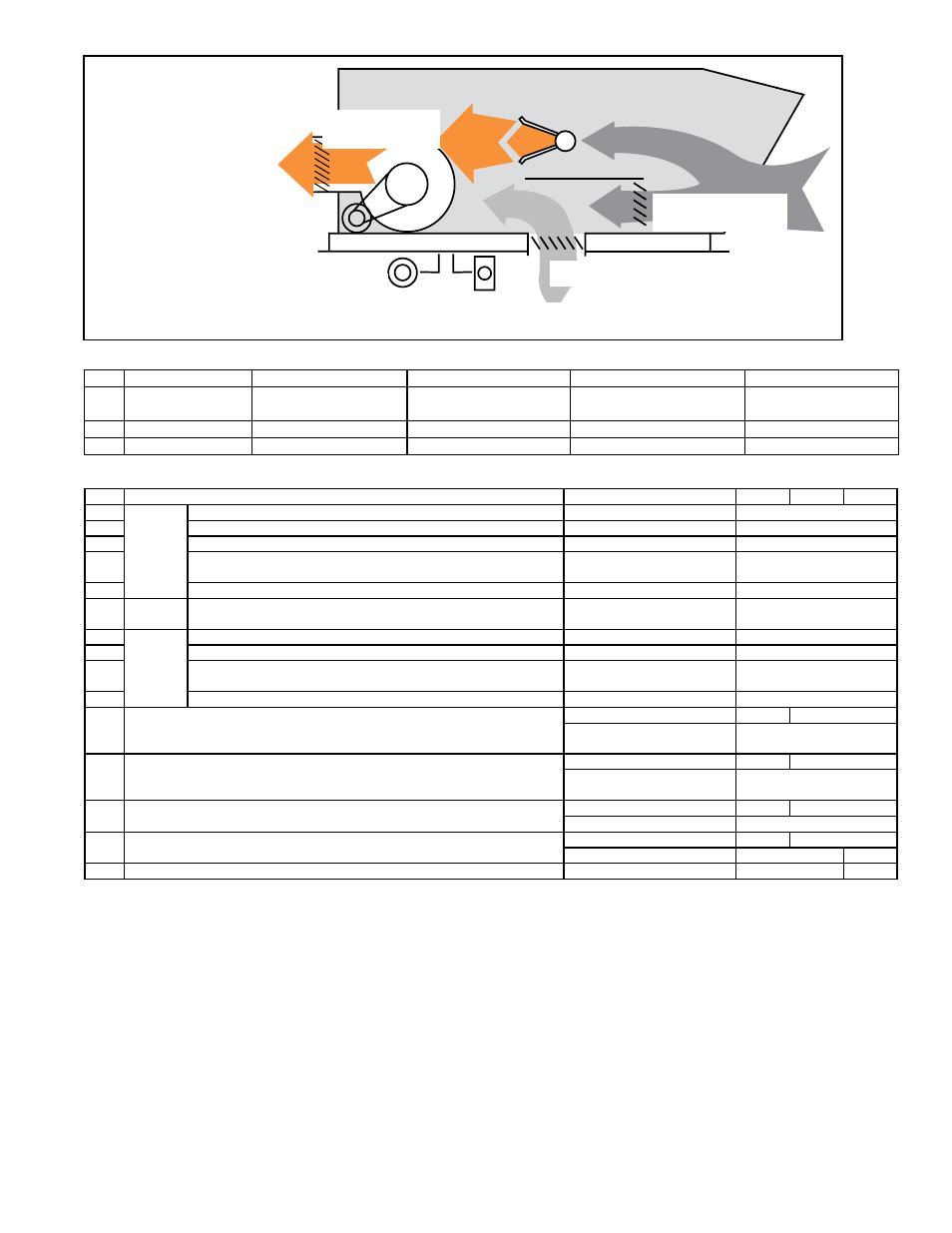

Dampers in RDF Series 3 (units manufactured beginning 9/03)
AR22 AR23
Return Dampers
Options AR 22, 23, 34, 37
Bypass Dampers
Options AR 19, 20, 22,
23, 33, 34, 35, 36, 37
Discharge Dampers
Options AQ 3, 4;
AR 19, 20, 33, 36
AR 20 or 23
Remote Potentiometer, CODE 32, page 5.
AR 19
or 22 Remote Pressure Null
Switch, CODE 33, page 5.
Options AR 36 and 37 have a Remote Photohelic Pressure Sensor, CODE 34, page 5.
Code Description In Option RDF-1 RDF-2 RDF-3
130 Bypass Damper
AR 19, 20, 22, 23, 33,
34, 36, 37
203602 - 26" x 12" 203604 - 53-1/2" x 17-3/4" 203603 - 65-3/4" x 20"
131 Return Air Damper AR 22, 23, 34, 37 203602 - 26" x 12" 203604 - 53-1/2" x 17-3/4" 203603 - 65-3/4" x 20"
132 Discharge Damper AQ 3, 4; AR19, 20, 33, 36 15869 - 21-1/8" x 18-1/2" 89355 - 27-1/4" x 27-1/4" 91073 - 37" x 37"
Damper Motors and Linkages in RDF Series 3 (units manufactured beginning 9/03)
Code Description/Damper Arrangement In Option RDF-1 RDF-2 RDF-3
135
Discharge
Damper
Motor
2-Position, 100% Makeup Air AQ3, AQ4 159892, J/C M9216-BGC-2
136 Variable Air Volume w/Manual Potentiometer (Code 32, pg 5) AR19 204269, J/C M9216-JGA-2
137 Variable Air Volume w/Automatic Pressure Switch (Code 33, pg 5) AR20 159877, AF24-MFT95-US
138
Variable Air Volume with Computer Control through Signal
Conditioner (Code 93, pg 14)
AR33 204271, J/C M9216-GGC-2
139 Variable Air Volume w/Photohelic Pressure Sensor (Code 34, pg 5) AR36 204270, J/C M9109-AGA-2
140 Bypass
Dmpr Mtr Variable Air Volume
AR 19, 20, 22, 23, 33, 34,
36, 37
204268, J/C M9108-AGD-2
141
Return Air
Damper
Motor
Return Air with Manual Potentiometer (Code 32, pg 5) AR22 159877, AF24-MFT95-US
142 Return Air w/Automatic Pressure Switch (Code 33, pg 5) AR23 204270, J/C M9109-AGA-2
143
Variable Air Volume with Computer Control through Signal
Conditioner (Code 93, pg 14)
AR34 204271, J/C M9216-GGC-2
144 Variable Air Volume w/Photohelic Pressure Sensor (Code 34, pg 5) AR37 204270, J/C M9109-AGA-2
145 Damper Crank Arm, M/H #26026K
(1) AR 22, 23, 34 12635 --
(1) AQ 3, 4 (mfgd prior to
11/07)
12635
146 Ball Joint, M/H 27518
(2) AR19, 20, 22, 23, 34, 37 12636 --
(2) AQ 3, 4 (mfgd prior to
11/07)
12636
147 Damper Crank Arm Kit, J/C #9000-153
(1) AR 22, 23; 194200 --
(1) AQ3 (mfgd prior to 11/07) 194200
148 Damper Crank Arm
(1) AR 34, 37 66278 --
(1) AQ 3, 4 -- 66278
149 Damper Crank Arm, W/R 135-0002 (1) AQ4 -- 66277
Dampers and
Controls
RDF Series 3
(units manufactured
beginning 9/03)
