Reznor RDF Parts Manuals - Manual (Page 11)

Form P-RDF, P/N 270069 R6, Page 11
Motor
CODE 50 - Starter Contactor with line voltage coil
and Overloads (used on units mfgd prior to 2/03)
Type HP P/N volt ph Mfg No. P/N min max GE # P/N
EE
5 159029
480 3 CL00A310T-U 151148 5.50 8.50 RTA1-M 151192
EE 111602 575 3 CL00A310T-Y 151149 4.00 6.30 RTA1-L 151191
EE
7.5
159331 208 3 CL04A310M-L 151169 21.00 26.00 RTA1-U 151198
EE 159332 240 3 CL25A310T-S 151161 17.50 22.00 RTA1-T 151197
EE 159332 480 3 CL00A310T-U 151148 8.00 12.00 RTA1-N 151193
EE 158164 575 3 CL00A310T-Y 151149 5.50 8.50 RTA1-N 151192
EE
10
159333 208 3 CL04A310M-L 151169 25.00 32.00 RTA1-V 151199
EE 159334 240 3 CL04A310M-S 151166 21.00 26.00 RTA1-U 151198
EE 159334 480 3 CL01A310T-U 151153 10.00 16.00 RTA1-P 151194
EE 158163 575 3 CL00A310T-Y 151149 10.00 16.00 RTA1-P 151194
EE
15
142440 208 3 CL06A311M-L 151173 30.00 43.00 RTA2-E 151206
EE 142441 240 1 CL06A311M-S 151172 30.00 43.00 RTA2-E 151206
EE 142441 480 3 CL25A310T-U 151162 17.50 22.00 RTA1-T 151197
EE 142289 575 3 CL02A310T-Y 151158 10.00 16.00 RTA1-P 151194
CODE 51 - Replacement Coils by Voltage for IEC Starter Contactors (CODE 46 - 24 volt starter contactors on
pages 7-9 and CODE 50 line voltage starter contactors on page 10)
Motor
CODE 50 - Starter Contactor with line voltage coil
and Overloads (used on units mfgd prior to 2/03)
Type HP P/N volt ph Mfg No. P/N min max GE # P/N
EE
15
142440 208 3 CL06A311M-L 151173 30.00 43.00 RTA2-E 151206
EE 142441 240 1 CL06A311M-S 151172 30.00 43.00 RTA2-E 151206
EE 142441 480 3 CL25A310T-U 151162 17.50 22.00 RTA1-T 151197
EE 142289 575 3 CL02A310T-Y 151158 10.00 16.00 RTA1-P 151194
EE
20
159187 208 3 CL07A311M-L 151176 54.00 65.00 RTA2-H 151203
EE 142299 240 3 CL06A311M-S 151172 42.00 55.00 RTA2-G 151202
EE 142299 480 3 CL04A310M-U 151167 21.00 26.00 RTA1-U 151198
EE 142300 575 3 CL25A310T-Y 151163 17.50 22.00 RTA1-T 151197
EE
25
159031 208 3 CL09A311M-L 151179 64.00 82.00 RT2-J 151204
EE 159033 240 3 CL08A311M-S 151177 54.00 65.00 RT2-H 151203
EE 159033 480 3 CL04A310M-U 151167 25.00 32.00 RT1-V 151199
EE
30
159032 208 3 CL10A311M-L 166756 78.00 97.00 RT2-L 151205
EE 159034 240 3 CL09A311M-S 151178 64.00 82.00 RT2-J 151204
EE 159034 480 3 CL06A311M-U 151174 30.00 43.00 RT2-E 151206
Voltage GE #
Reznor ®
P/N For Use with
Contactors
Beginning with
GE#
CL00; CL01;
CL02; CL25
Voltage GE #
Reznor ®
P/N
For Use with
Contactors
Beginning with
GE#
CL04; CL45
Voltage GE #
Reznor ®
P/N
For Use with
Contactors
Beginning
with GE#
CL06; CL07;
CL08; CL09
24 LB1A-C 151280 24 LB3A-C 151286 208 LB4A-L 151292
120 LB1A-J 151281 120 LB3A-J 151287 230 LB4A-S 151293
208 LB1A-L 151282 208 LB3A-L 151288 460 LB4A-U 151294
230 LB1A-S 151283 230 LB3A-S 151289
460 LB1A-U 151284 460 LB3A-U 151290
575 LB1A-Y 151285 575 LB3A-Y 151291
NEMA Motor Starters Reznor ® P/N for
Size Coil Voltage GE# RDF-1 RDF-2 RDF-3
0 24 Volt CR306B024 39919 39919 39919
1 24 Volt CR306C024 39920 39920 39920
2 24 Volt CR306D024 — 39921 39921
3 24 Volt CR306E024 — 39922 39922
4 24 Volt CR306F024 — — 91519
0 115 Volt CR306B002 111523 — —
0 208 Volt CR306B023 111524 111524 —
0 230 Volt CR306B003 111525 111525 —
0 460 Volt CR306B004 111522 111522 111522
1 115 Volt CR306C002 111526 — —
1 208 Volt CR306C023 111499 111499 —
1 230 Volt CR306C003 111521 111521 —
1 460 Volt CR306C004 111527 111527 —
2 208 Volt CR306D023 — 111528 111528
2 230 Volt CR306D003 — 111529 111529
2 460 Volt CR306D004 — 111530 111530
3 208 Volt CR306E023 — 111531 111531
3 230 Volt CR306E003 — — 111533
3 460 Volt CR306E004 — — 111532
3 575 Volt CR306E004 — — 119852
4 208 Volt CR306F023 — — 111534
Heaters for NEMA Starters
HP/Voltage/Phase GE# Reznor ® P/N
5/208/3 CR123C18.0B 89941 or 110617
5/230/3 and 10/460/3 CR123C16.3B 16193 or 110626
5/460/3 CR123C8.67A 16192 or 110619
5/208/3 CR123C19.8B 91542
7.5/208/3 CR123C25.0B 16196
7.5/230/3 CR123C22.8B 89924 or 110622
7.5/460/3 CR123C12.5B 17257 or 110624
10/208/3 CR123C33.0B 89947 or 110625
10/230/3 CR123C30.3B 89949 or 110627
10/460/3 CR123C137B 110623
15/208/3 CR123F56.7B 91543
15/230/3 CR123FC40.0B 89933
15/460/3 CR123C21.4B 19556
20/208/3 and 25/230/3 CR123F77.28B 91544
20/230/3 CR123F65.8B 91545
25/208/3 and 30/230/3 CR123F91.4B 91546
25/460/3 CR123C36.6B 16195
30/208/3 CR123F10.4C 91547
30/460/3 FA30B 119851
30/575/3 F327B 121175

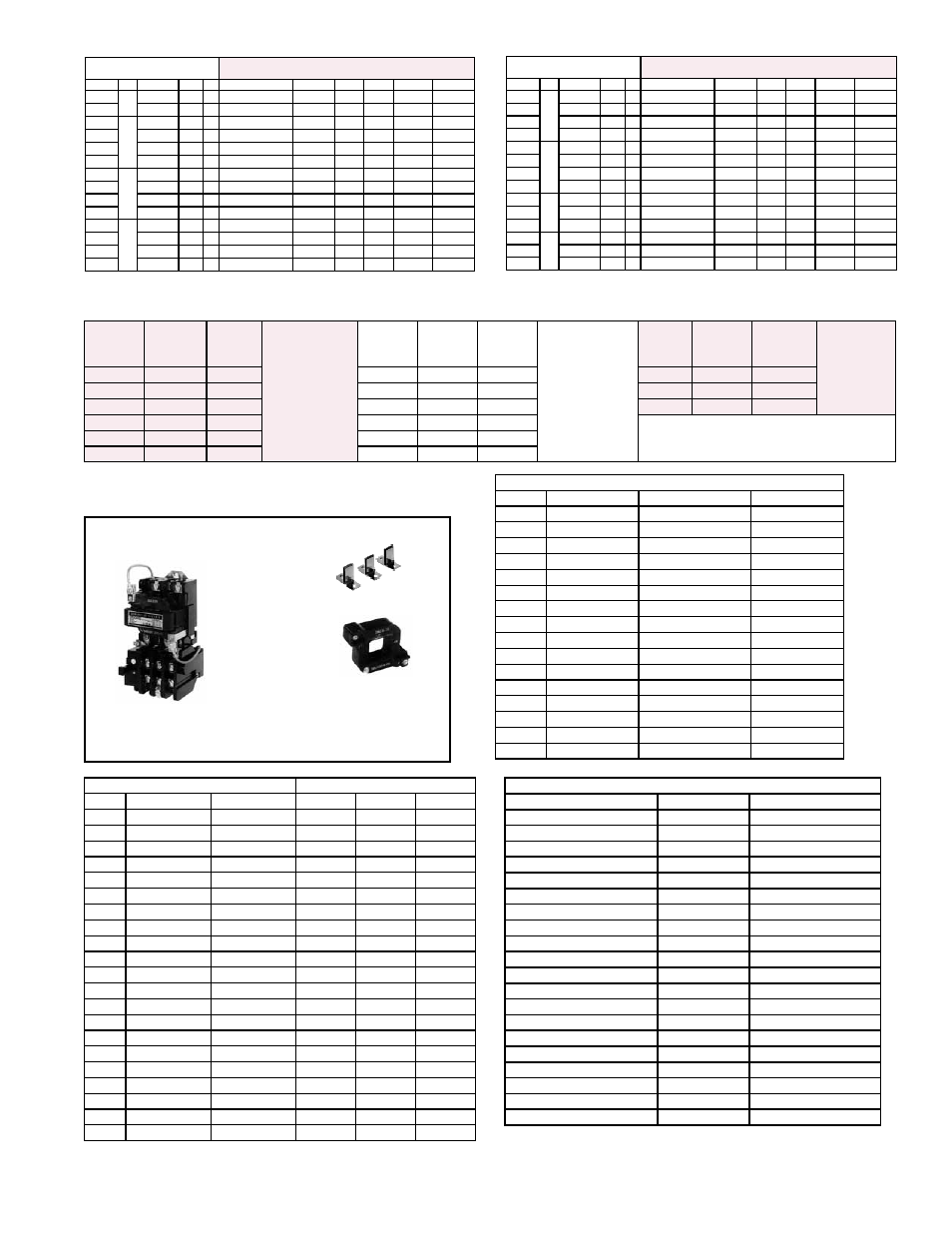

CODE 52 - Replacement Parts for NEMA Starters -
Apply to RDF Models Manufactured prior to 10/92
NEMA Open
Motor Starters
NOTE: Effective 10/90, motor starter coils were
changed to line voltage (For relay, see CODE 1,
page 4)
Starter
Heater
Holding
Coil
Holding Coils for NEMA Starters
Size Coil Voltage GE# Reznor ® P/N
0/1 24 15D21G024 48531
0/1 115 15D21G002 48507
0/1 208 15D21G023 48509
0/1 230 15D21G003 73795
0/1 460 15D21G004 48512
0/1 575 15D21G005 73601
2 24 15D22G024 93957
2 208 15D22G023 111927
2 230 15D22G003 111928
2 460 15D22G004 111929
3 24 55-501336G024 95093
3 208 55-501336G023 111931
3 230 55-501336G003 111933
3 460 55-501336G004 111932
4 24 55-501463G024 102816
4 208 55-501463G023 111935
