PRG LIGHTING SYSTEMS NETWORKING GUIDE 63

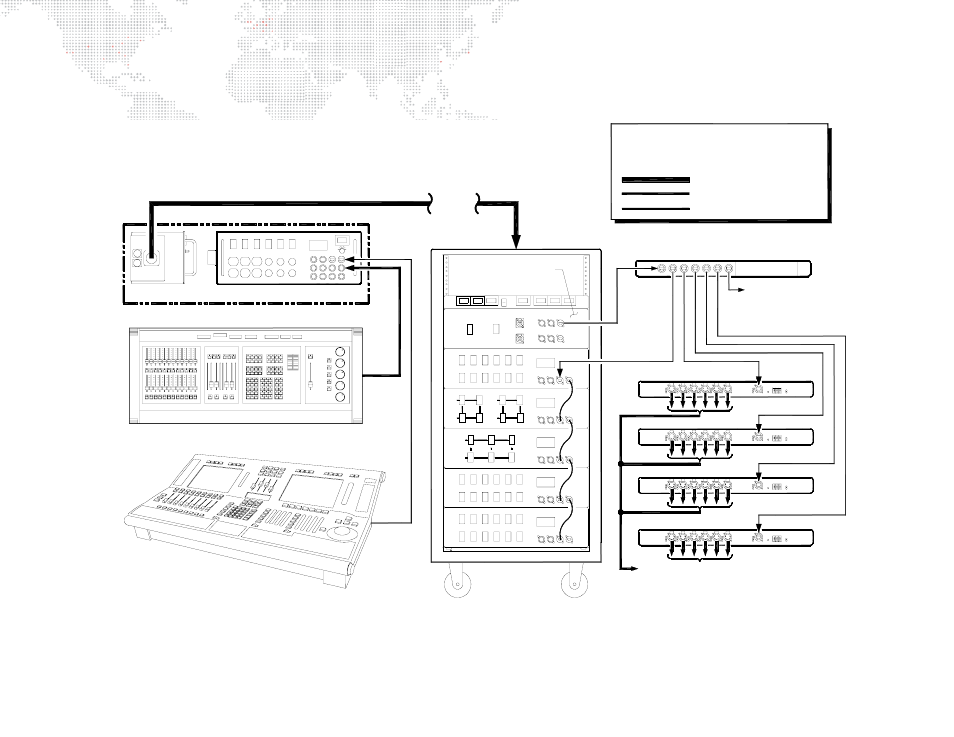

Figure 51: Maxxyz™ Console and a Conventional Console w/ PRG Series® 400 Rack and Nodes
CONVENTIONAL LIGHTING CONSOLE
OR ARTNET DEVICE
TO OTHER NODES
7-PORT COPPER SWITCH
B
A
NODE
OR SERIES 400
(ArtNet DATA)
DMX
NODE
NODE
Cat5e
A B
500 FT.
UP TO
UP TO 24 DMX OUTPUTS
NODE
FRONT OF HOUSE
BREAKER MODULE
SERIES 400 RACK
ALL ETHERNET COPPER CONNECTIONS
MADE WITH PRG/BELDEN CAT5E CABLE.
Cat5e CABLE
TRUNK CABLE
DMX CABLE
NOTE:
MAXXYZ CONSOLE
FOH BREAKOUT MODULE
S-400 TRUNK CABLE
