PRG S400 Systems Networking Guide User Manual

Page 35

PRG LIGHTING SYSTEMS NETWORKING GUIDE

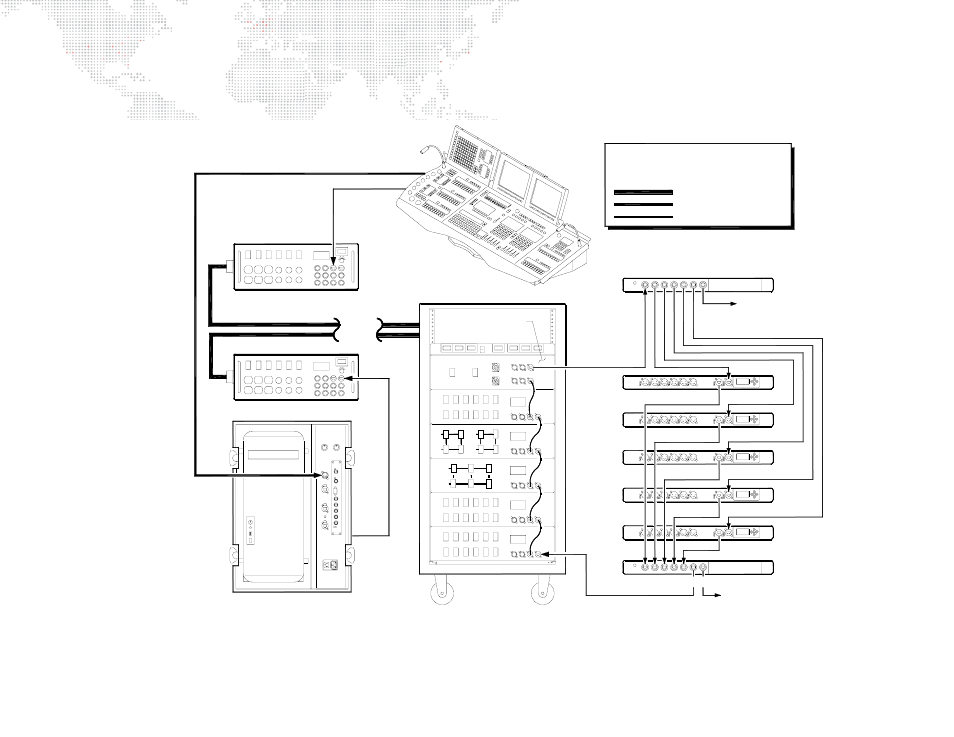

Figure 22: Virtuoso

Console and a Media Server (such as PRG Mbox Extreme®) for Pixel Mapping w/ PRG Series 400® Distribution

FOH BREAKOUT MODULE

PRG Mbox EXtreme FOR PIXEL MAPPING

SERIES 400 RACK

Cat5e
ArtNet

DMX

MEDIA SERVER SUCH AS

(Virtuoso DATA)

100 METER MAX.

TO OTHER SWITCHES

A
B

BREAKER MODULE

FRONT OF HOUSE

(ArtNet DATA)

TO NEXT RACK OR NODE

7-PORT COPPER SWITCH

NODE PLUS

S-400 TRUNK CABLE

UP TO

500 FT.

Cat5e CABLE

DMX CABLE

TRUNK CABLE

ALL ETHERNET COPPER CONNECTIONS
MADE WITH PRG/BELDEN CAT5E CABLE.

NOTE:

CONSOLE

VIRTUOSO

Cat5e

7-PORT COPPER SWITCH
