PRG LIGHTING SYSTEMS NETWORKING GUIDE 55
MagicQ 100 Console Systems

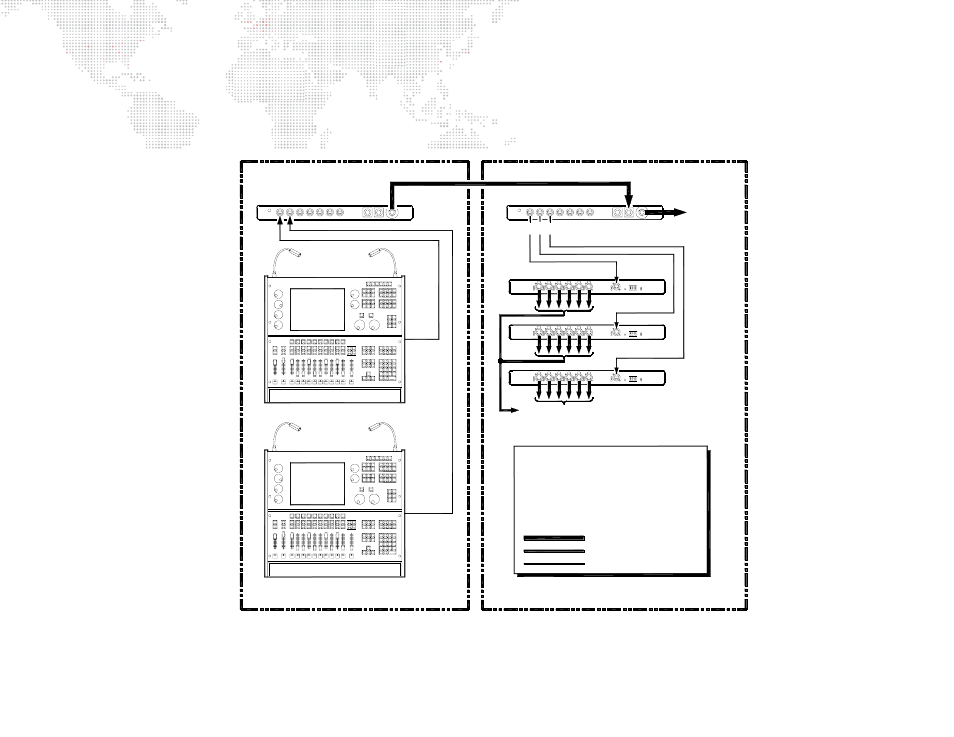

Figure 43: MagicQ 100 System w/ PRG 10-Port (Fiber) Ethernet Switches with Nodes in S400 Mode
18 POTENTIAL DMX
UNIVERSES OUT
NODE
NODE
Cat5e
2ND RACK
OF NODES
NODE
10-PORT FIBER SWITCH
STAGE
FIBER TO STAGE
FRONT OF HOUSE
FIBER TO
10-PORT FIBER SWITCH
MAGIC Q100 CONSOLE
MAGIC Q100 CONSOLE
FIBER OPTIC CABLE.
CONSOLE AND RACK JUMP MADE WITH
ALL ETHERNET COPPER CONNECTIONS
MADE WITH PRG/BELDEN CAT5E CABLE.
NOTE:
Cat5e CABLE
DMX CABLE
FIBER CABLE
PRG NODES IN SERIES 400 MODE
Cat5e
