PRG LIGHTING SYSTEMS NETWORKING GUIDE 47

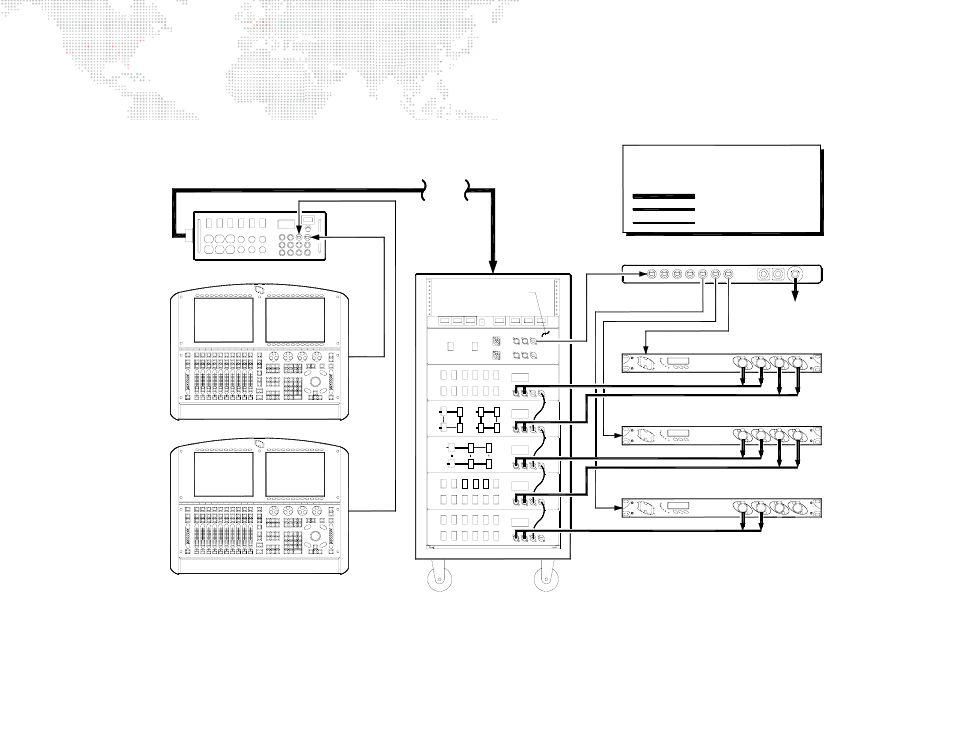

Figure 35: Hog ® Consoles w/ PRG Series 400 Rack, 10-Port (Fiber) Ethernet Switch and DMX512 Processors
FOH BREAKOUT MODULE
S-400 TRUNK CABLE
500 FT.
UP TO
HOG 3 CONSOLE
Cat5e
HOG 3 CONSOLE
Cat5e
ALL ETHERNET COPPER CONNECTIONS
MADE WITH PRG/BELDEN CAT5E CABLE.
NOTE:
Cat5e CABLE
TRUNK CABLE
DMX CABLE
HOG3 DMX PROCESSOR
HOG3 DMX PROCESSOR
RACKS OF DMX
FIBER TO OTHER
10-PORT FIBER SWITCH
HOG3 DMX PROCESSOR
PROCESSORS
A
A
B
B
BREAKER MODULE
FRONT OF HOUSE
SERIES 400 RACK
