LAARS Heating Systems
Page 62

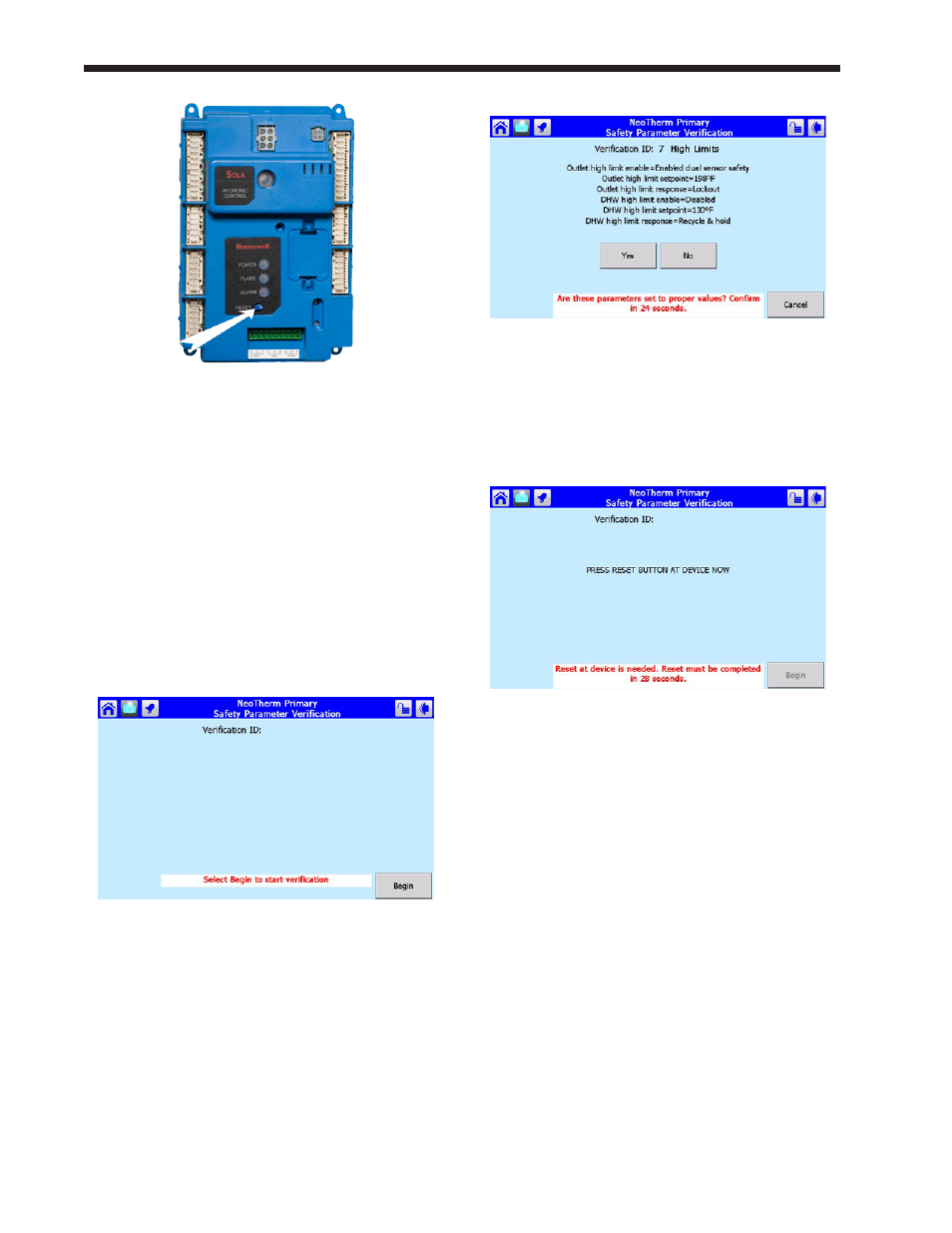

Fig. 74 – Reset Button on Controller
The control system allows 30 seconds to press
the reset button. Do not press the Reset button
yet! You will need to do this in a moment.
At this point, we just want to alert you to
something: In order to be able to reach the
controller within 30 seconds, it will be helpful
to open the door and slide out the control
panel first.
When you are ready, press the Verify button on
the Configuration screen.
10. To begin the verification, login to the system
and press Begin.
Fig. 75 – Edit Safety Data
11. The system will present a listing of a group
which includes the parameter you changed
(the flap valve ID). See Fig. 76.
Fig. 76 – Safety Parameter Confirmation
Check the list carefully. Press Yes if all of
the parameters in the group have been entered
correctly.
12. The system will tell you to reset the control
system.
Fig. 77 – Safety Parameter Reset
You must press the Reset button within 30
seconds, or the verification will be cancelled.
13. At this point, you have set the flap valve
address for one of the controllers in the
boiler. The next job is to set the flap valve
identification for the other control on this
boiler. (In this example, this would be the
Secondary control on Boiler 1). Press the
Home button in the upper left-hand corner of
the display.
14. Press the icon for the Secondary control.
Repeat steps 3 through 12 for the Secondary
control for Boiler 1. (From Table 15, you can
see that the address for this control should be
“2.”)
15. At this point, you have set the flap valve ID’s
for both controllers on one of the boilers.
Now you must repeat the process for all of the
controllers on each of the other boilers.
