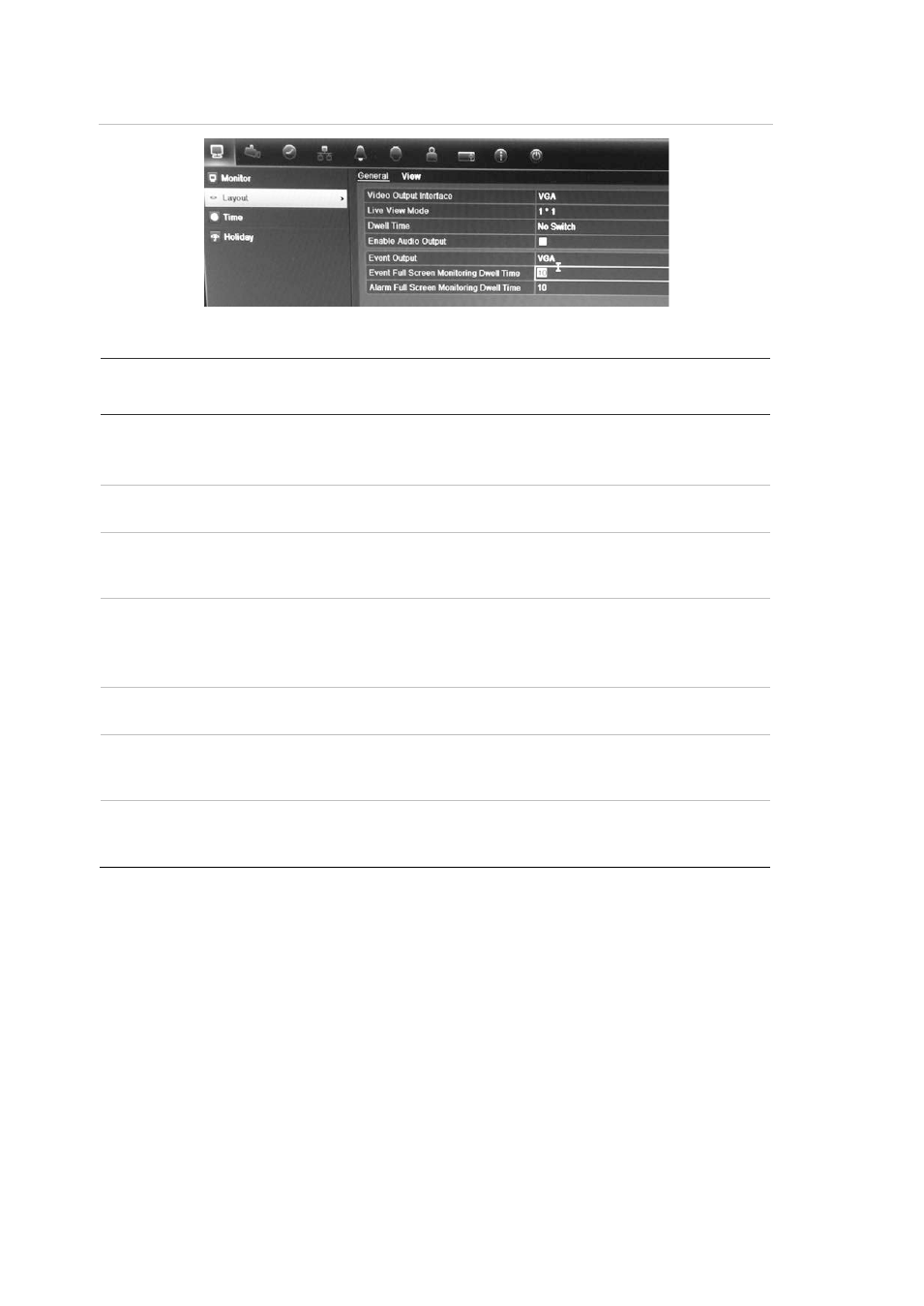

Figure 16: Layout screen
Table 10: Description of the layout screen
Submenu name Description
General tab
Video output interface Select which monitor will be the main monitor: HDMI (depends on
DVR model), VGA, main CVBS or spot output.
Default is VGA, if connected.
Live view mode Select which multiview layout will be default in live view mode. Default
is 4x4 multiview layout.
Dwell time Set the length of time for which a camera image is displayed on the
selected monitor before moving to the next camera during
sequencing. Default is off (“No switch”).
Enable audio output You can hear audio from cameras in both live and playback mode.
However, in order to be able to hear audio in playback you must
enable the audio output setting.
Check the box to enable/disable audio output.
Event output Select which monitor will be the spot monitor. Default is the spot
monitor (Spot output 1).
Event full screen
monitoring dwell time Set the length of time for which a camera that has an event or alarm
appears on the selected monitor before moving to the next camera
during sequencing. Default is 10 seconds.
Alarm full screen
monitoring dwell time Set the length of time for which a camera that has an alarm appears
on the selected monitor before moving to the next camera during
sequencing. Default is 10 seconds.
To set up the display options:
1. Click the Display Mode Settings icon in the menu toolbar.
2. Select Layout > General .
3. Specify the desired settings for each of the menu options.
4. Click Apply to save the settings.
5. Click Back to return to live view.
