3BChapter 4: Operating instructions
20 TruVision DVR 41 User Manual

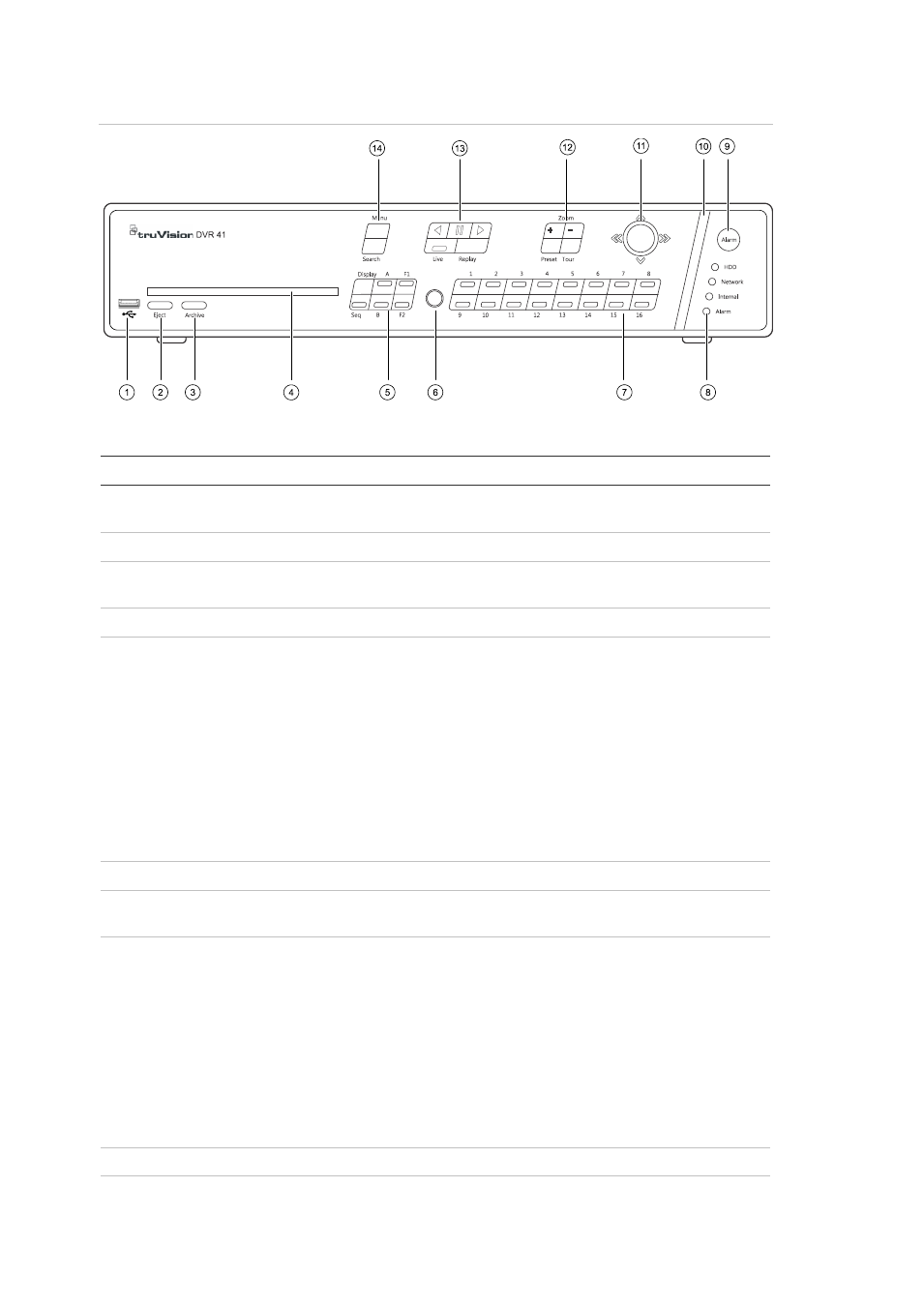

Figure 8: Front panel
The controls on the front panel include:
Item Name Description
1. USB port Universal serial bus (USB) port for additional devices
such as USB mouse and USB hard disk drive (HDD).
2. Eject button Ejects CD/DVD disc.
3. Archive button Press once to enter quick archive mode. Press twice to
start archiving.
4. CD/DVD slot Insert a CD or DVD disc.
5. Display buttons Display: Toggles through the various multiviews: full,
quad, 1+5, 1+7, 9, and 16.
Sequence: Starts/stops sequencing in live view mode.
A: Selects the main monitor.
B: Selects the spot monitor (in live view).
F1: In all-day playback, click to start and stop video
clipping.
F2: In live view mode, click to display/hide the time bar.
In all-day playback, click to hide/display the playback
control toolbar.
6. IR receiver Receiver for IR remote.
7. Numeric buttons Switch between different cameras in live, PTZ control or
playback modes.
8. Status LEDs HDD: Green indicates the DVR is working correctly. Red
indicates a fault.
Network: Green indicates the network is working
correctly. Red indicates a fault or no network
connection.
Internal: Green indicates the Watchdog is working
correctly. Red indicates that the Watchdog is reporting a
fault.
Alarm: Green indicates no external alarm. Red indicates
an external alarm status or motion.
9. Alarm button Use to manually acknowledge an alarm.
10. Alarm indicator bar Blinking red indicates that there is an alarm.
