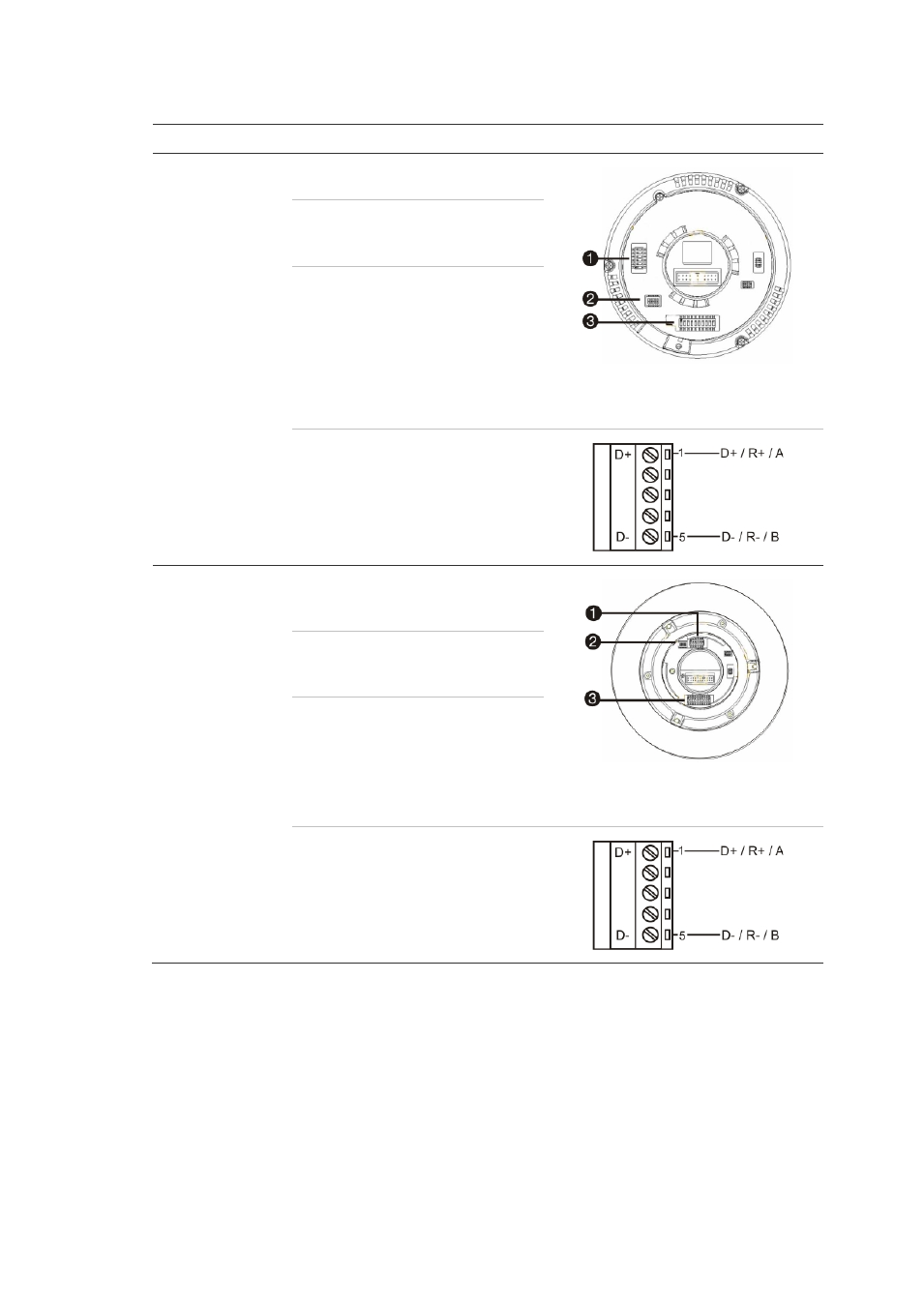

Table 2: PTZ protocols for Interlogix cameras
Camera Switch setting
TruVision Mini PTZ
12X: Indoor Dome Protocol DIP
switches: 000000
1. Protocol DIP switches
2. RS-485 communication DIP switches
3. Camera ID DIP switches
RS-485
communication DIP
switches: 0000000000
Camera ID DIP
switches: Select the
camera ID
DIP switch
address as
required
RS-485 data connector:
TruVision Mini PTZ
12X: Outdoor
Dome Protocol DIP
switches: 000000
1. Protocol DIP switches
2. RS-485 communication DIP switches
3. Camera ID DIP switches
RS-485
communication DIP
switches: 0000000000
Camera ID DIP
switches: Select the
camera ID
DIP switch
address as
required.
RS-485 data connector:
