5 menu interface switch, Menu interface switch – IC Realtime Specialty: 4-CH H.264E CUBE REAL-TIME DVR with BUILT-IN 5.6 LCD User Manual
Page 93
93

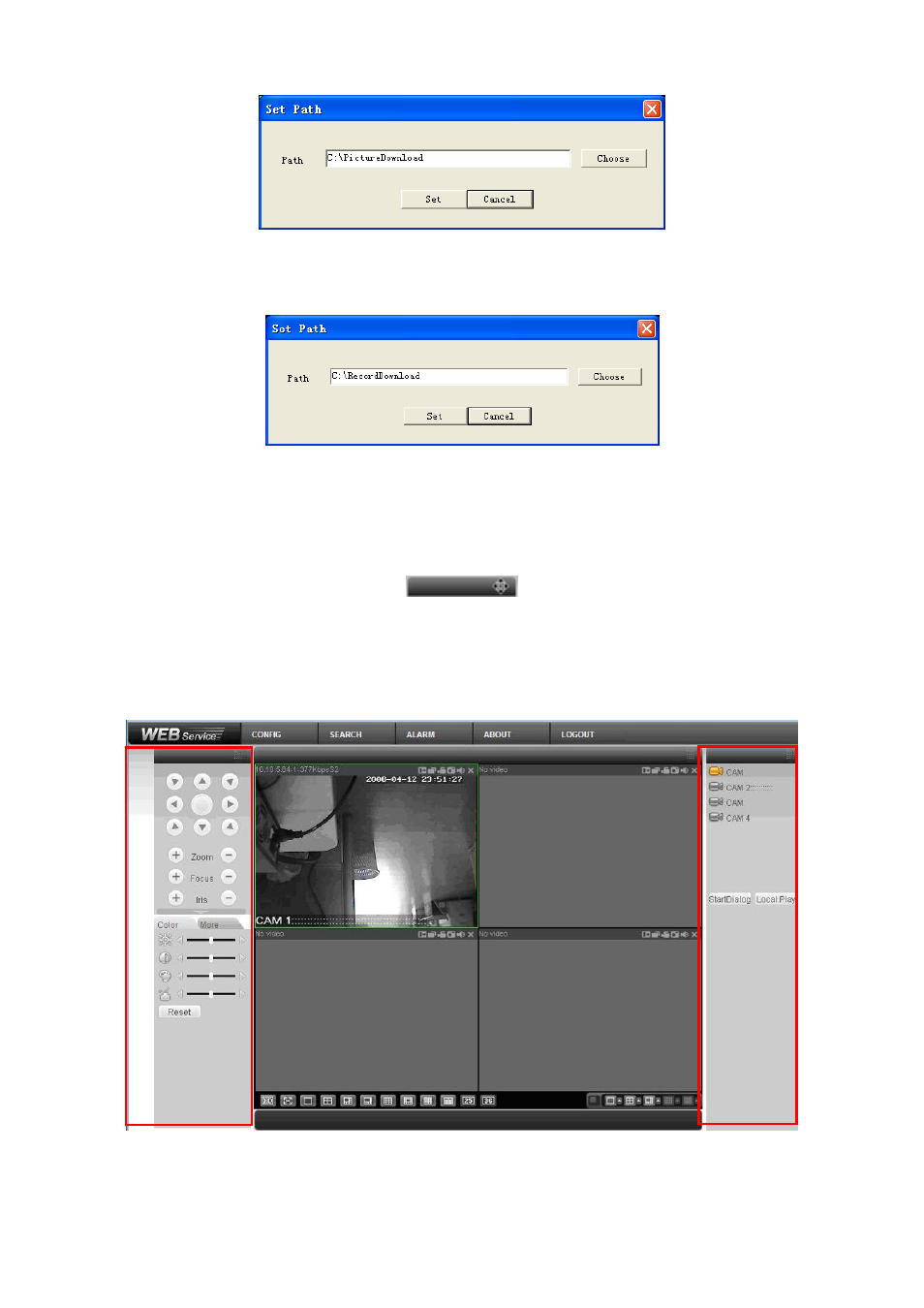

Figure 7-16
Click record path button, you can see an interface is shown as in Figure 7-17.
Figure 7-17
7.2.5 Menu Interface Switch
Put your mouse on the PTZ control bar until you see the following icon. See Figure
7-18.
Figure 7-18
Left click your mouse and then drag it to the channel control status bar. You can see
the two menus interface switched. See Figure 7-19. You can compare the following
interface with Figure 7-6.
Figure 7-19
