7.2.2 PTZ

Before PTZ operation, please make sure you have properly set PTZ protocol.
(Please refer to chapter 7.3.2 Setting-> Pan/Tilt/Zoom).

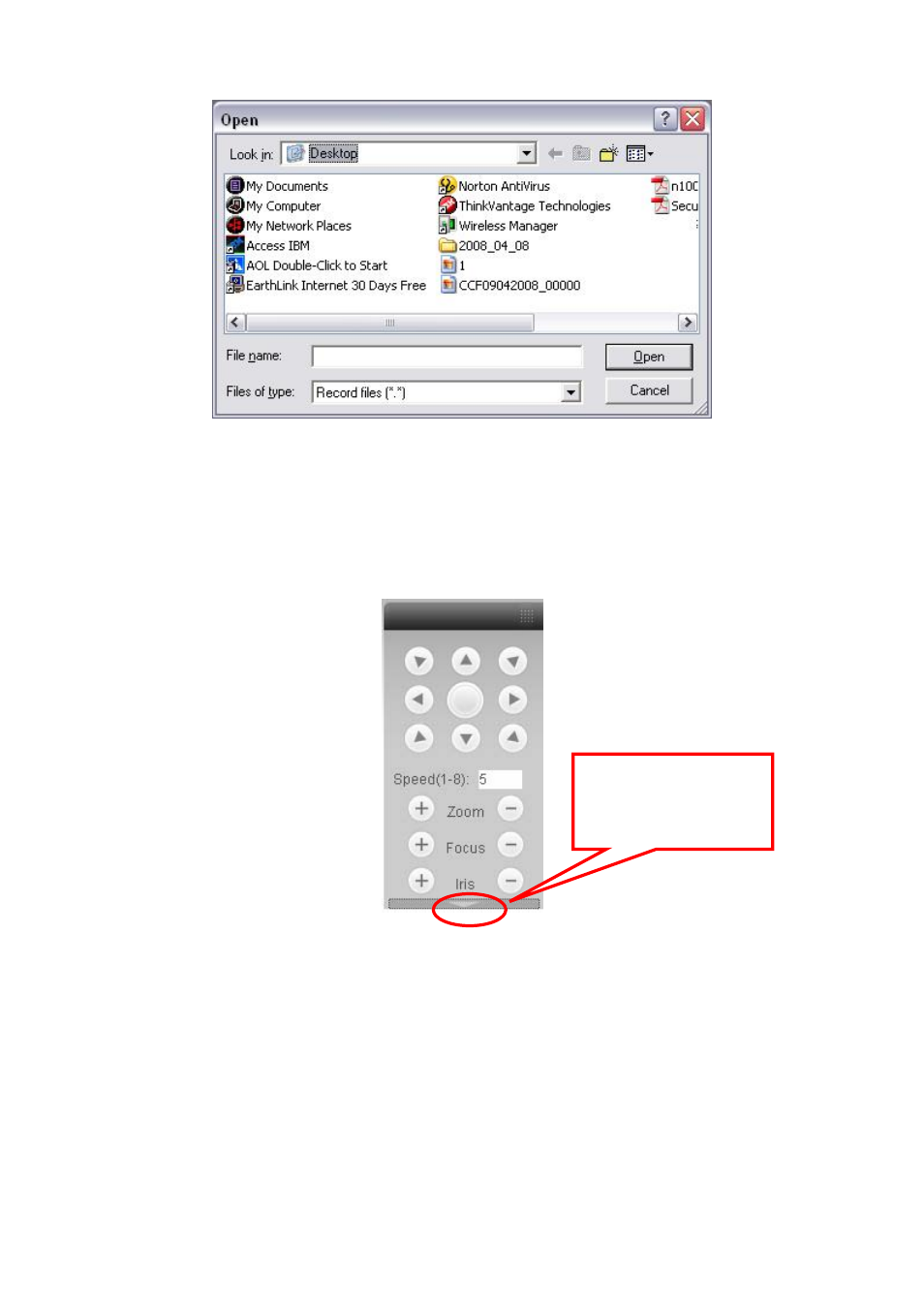

Click PTZ button, the interface is shown as in Figure 7-10 .

Figure 7-10

7.2.2.1 Direction key and 3D positioning key
In Figure 7-10, there are eight direction keys.
In the middle of the eight direction keys, there is a 3D intelligent positioning key.
Click SIT button, system goes back to the single screen mode. Drag the mouse in
the screen to adjust section size. It can realize PTZ automatically.
7.2.2.2 Speed
System supports eight-level speed. You can select from the dropdown list. Speed 2
is faster than speed 1.
7.2.2.3 Zoom/Focus/Iris
Here is a sheet for you reference.

You can click this icon to

display or hide the PTZ

control platform.
