3 video loss, Figure 4-16, Figure 4-17 – IC Realtime Specialty: 4-CH H.264E CUBE REAL-TIME DVR with BUILT-IN 5.6 LCD User Manual
Page 44: Figure 4-17, cli
44

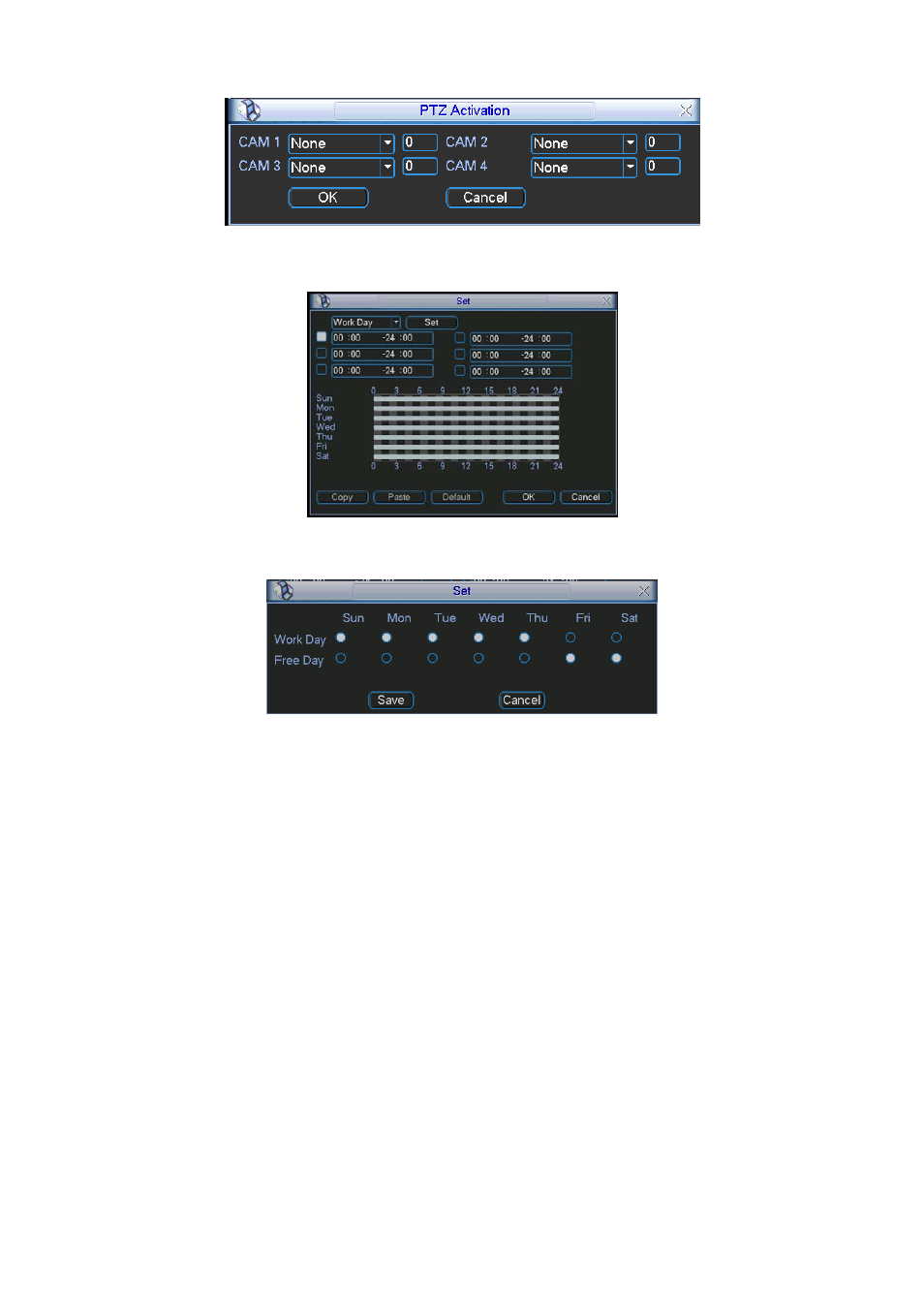

Figure 4-16
Figure 4-17
Figure 4-18
4.5.3 Video Loss
In Figure 4-14, select video loss in the Type item. You can see the interface is
shown as in Figure 4-19.This function allows you to be informed when video loss
phenomenon occurred. You can enable alarm output channel and then enable
show message function.
z
Channel: select the channel you want to enable lens shading alarm.
z
Event type: please select video loss.
z
Channel: select the channel to record when video loss occurred.
z
Alarm output: activate peripheral alarm device when video loss occurred.
z
Latch: when motion detection complete, system auto delays detecting for a
specified time. The value ranges from 10-300(Unit: second)
z
Show message: System can pop up a message to alarm you in the local host
screen if you enabled this function.
z
Send email: System can send out email to alert you when alarm occurs.
