109

Figure 7-42

z

Pan/Tilt/Zoom

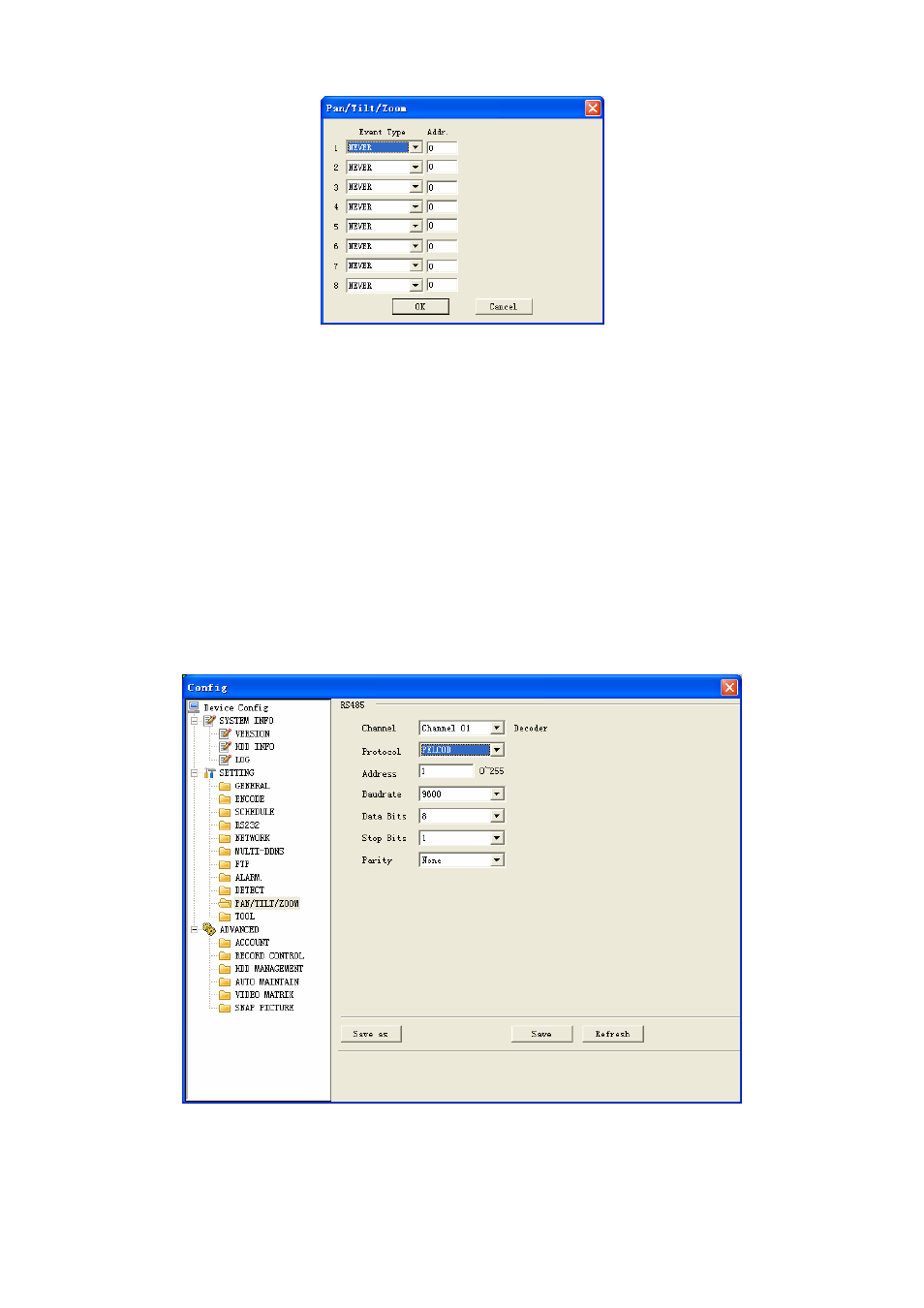

Pan/Tilt/Zoom interface is shown as in Figure 7-43.
Please note you have properly set dome address and all connections are right.
—

Decoder: Select the dome connected channel.

—

Protocol: select the corresponding dome protocol.(such as Pelco)

—

Address: Set corresponding dome address. Default value is 1. Please note your

setup here shall comply with your dome address; otherwise you can not control
the speed dome.

—

Baud rate: Select the dome baud rate. Default setup is 9600.

—

Data bit: Default setup is 8.

—

Stop bit: Default setup is 1.

—

Parity: Default setup is none.

Figure 7-43

z

Tool

Here you can export or import configuration information. See Figure 7-44.
