45
z PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go
to preset, tour & pattern when there is an alarm. Click “select” button, you can
see an interface is shown as in Figure 4-16.
z Period: Click set button, you can see an interface is shown as in Figure 4-17.
Here you can set for business day and non-business day. In Figure 4-17, click set
button, you can see an interface is shown as in Figure 4-18. Here you can set
your own setup for business day and non-business day.
z Sensitivity: there are six levels. The sixth level has the highest sensitivity.
z Alarm output: when alarm occurred, system enables peripheral alarm devices.
z Tour; Here you can enable tour function when alarm occurs. It is a one-window
tour. Please go to chapter 5.3.9 Display for tour interval setup.
z Snapshot: System can snapshoot when alarm occurs.

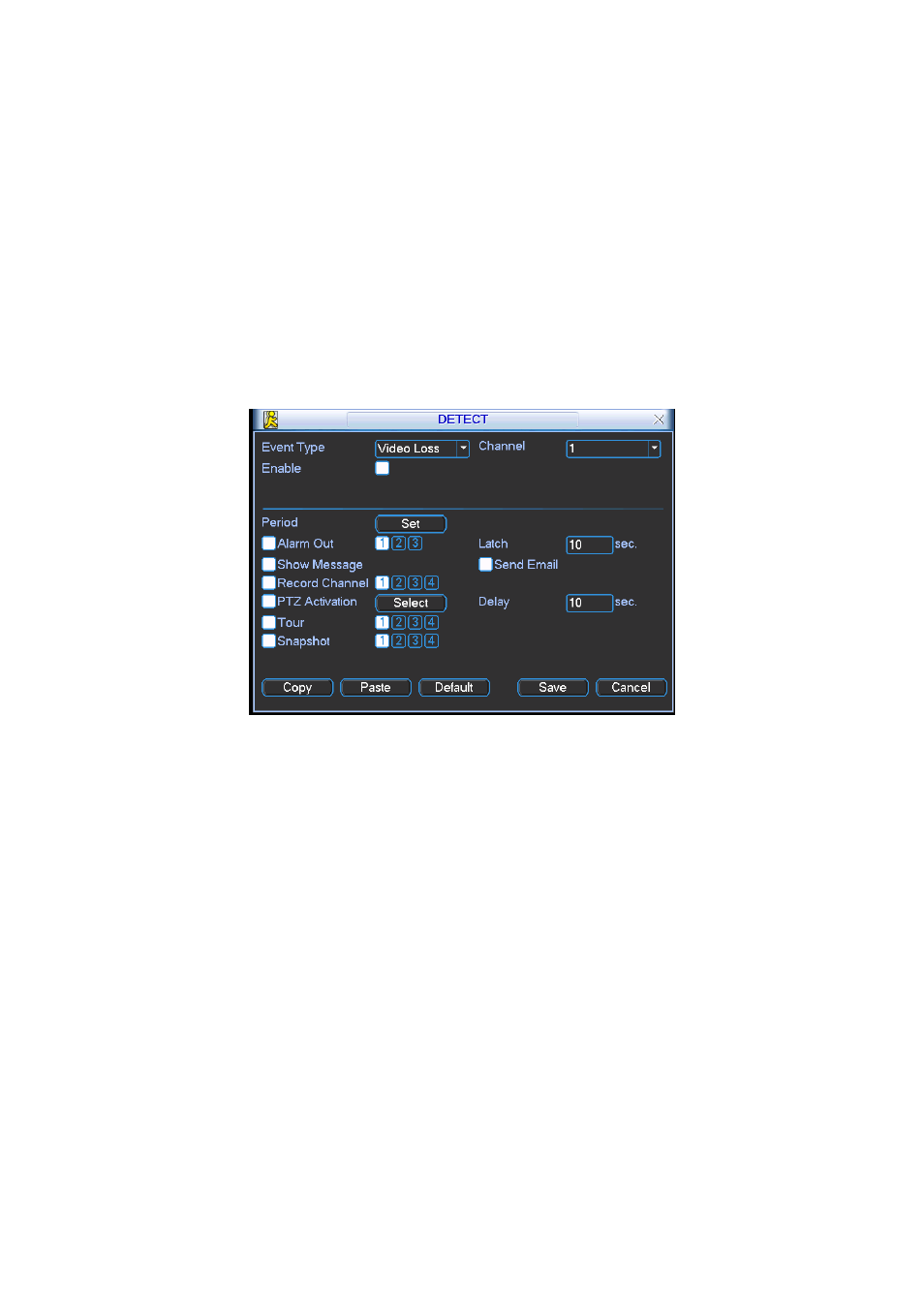

Figure 4-19
4.5.4 Camera Masking
When someone viciously masks lens, the system can alert you to guarantee video
continuity. Camera mask detection interface is shown as in Figure 4-20.
z
Channel: select the channel you want to enable camera mask detection function.
z Event type: please select camera mask detect from the dropdown list.
z Channel: select the channel to record when camera mask occurred.
z Alarm output: activate peripheral alarm device when camera mask occurred.
z Enable tour: Here is for you to activate tour between different cameras.
z Latch: when motion detection complete, system auto delays detecting for a
specified time. The value ranges from 10-300(Unit: second)
z Show message: System can pop up a message to alarm you in the local host
screen if you enabled this function.
z Send email: System can send out email to alert you when alarm occurs.
z PTZ activation: Here you can set PTZ movement when alarm occurs. Such as go
to preset, tour &pattern when there is an alarm. Click “select” button, you can see
an interface is shown as in Figure 4-16.
