1 hdd information, 2 bps, 3 log – IC Realtime Specialty: 4-CH H.264E CUBE REAL-TIME DVR with BUILT-IN 5.6 LCD User Manual
Page 77: Hdd information

77

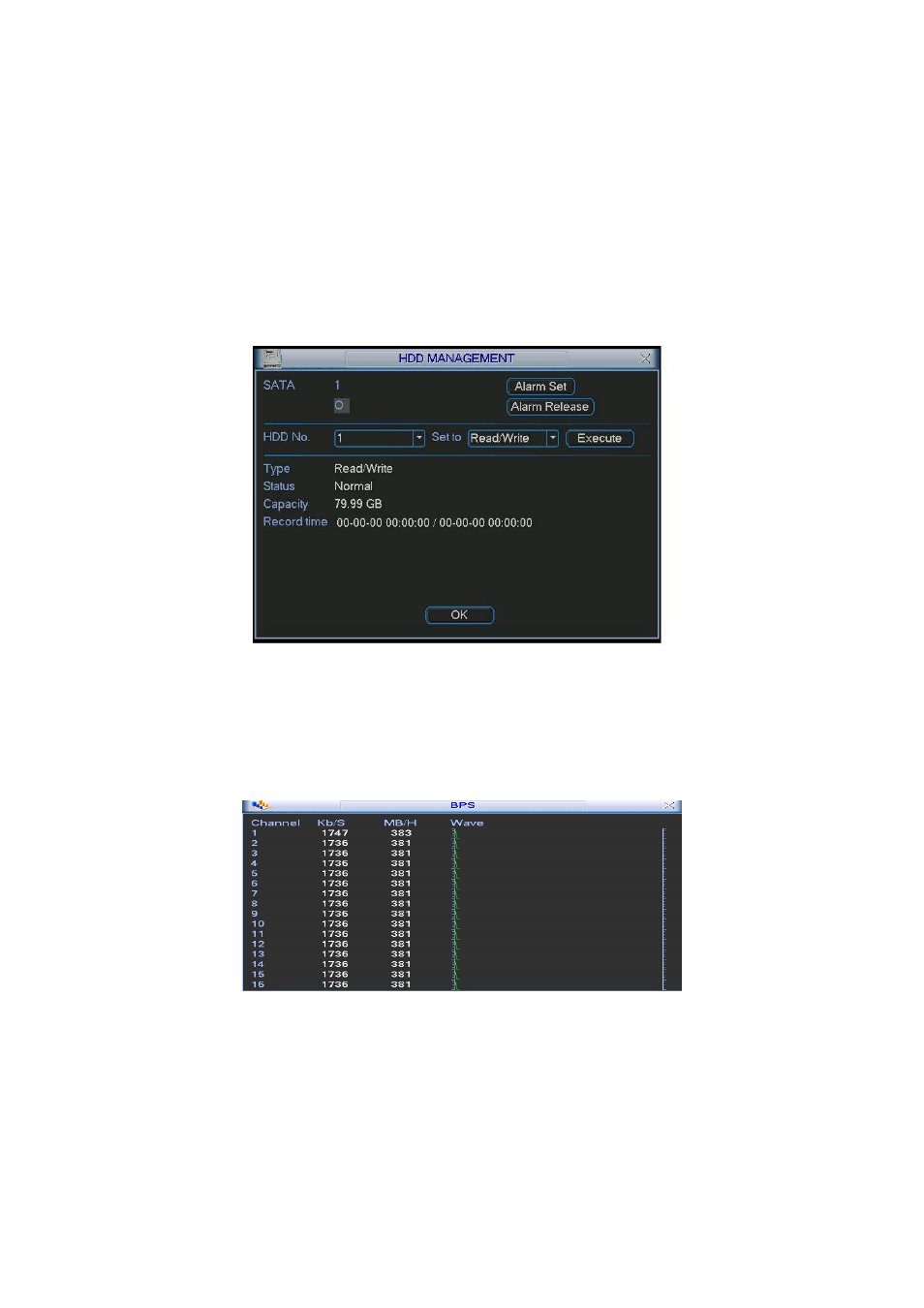

5.6.1 HDD
Information
Here is to list hard disk type, total space, free space, video start time and status. See
Figure 5-40.
Note:
Please remove the broken hard disk before you add a new one.
Once there is a hard disk confliction, please check hard disk time and system time is
the same or not. Please go to setting then general to modify system time. At last,
reboot the system to solve this problem.
If disk is damaged, system shows as “?”
Figure 5-40
5.6.2 BPS
Here is for you to view current video data stream (KB/s) and occupied hard disk
storage (MB/h). See Figure 5-41.
Figure 5-41
5.6.3 Log
Here is for you to view system log file. System lists the following information. See
Figure 5-42.
