54

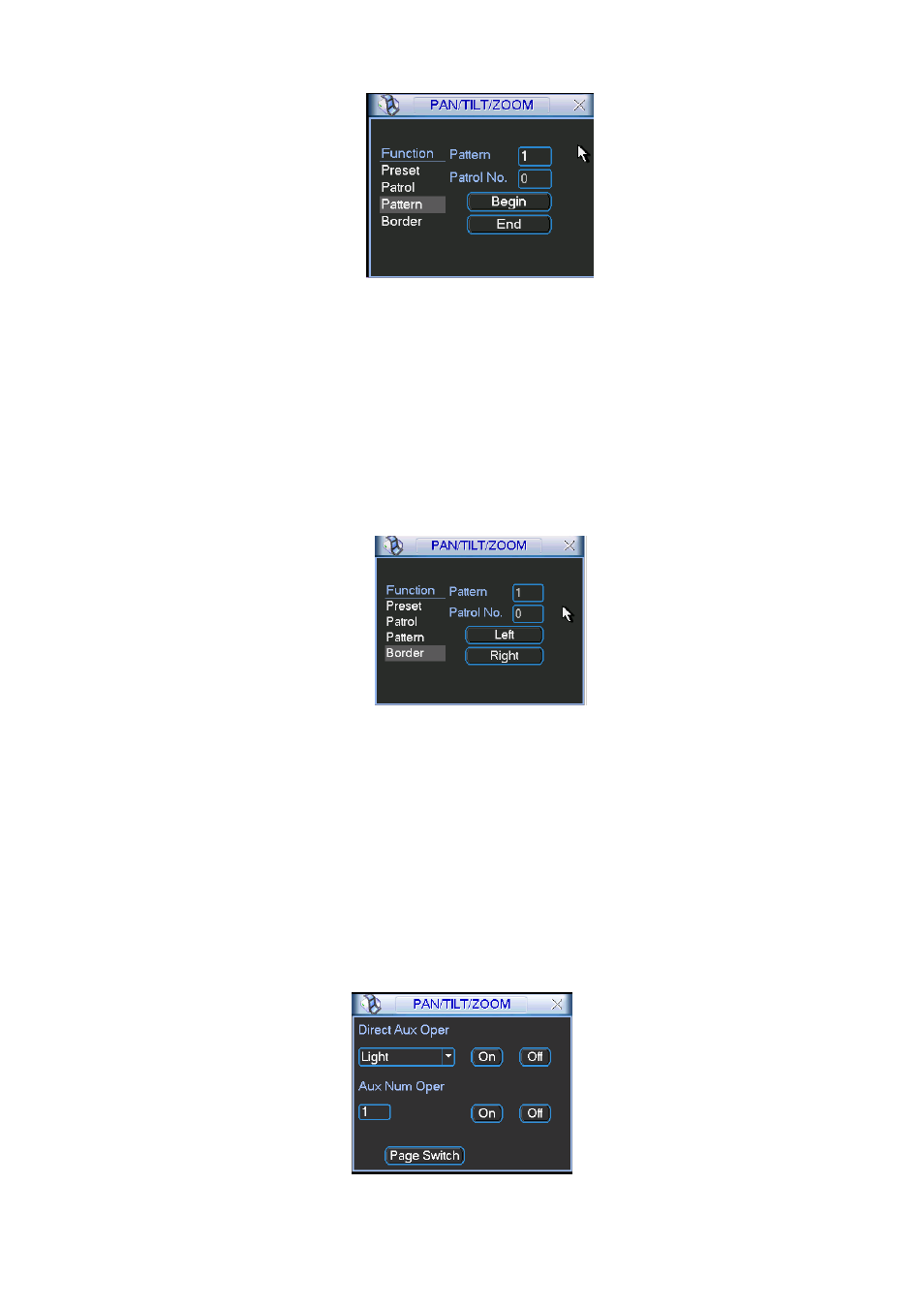

Figure 4-37
4.9.6 Activate Pattern Function
In Figure 4-34, input mode value in the No. blank, and click pattern button.
4.9.7 Auto Scan Setup
In Figure 4-33, click border button. The interface is shown as in Figure 4-38.
Please go to Figure 4-30, use direction arrows to select camera left limit
Then please go to Figure 4-38 and click left limit button
Repeat the above procedures to set right limit.
Figure 4-38
4.9.8 Activate Auto Scan
In Figure 4-34, click “Auto Scan” button, the system begins auto scan.
Correspondingly, the auto scan button changes to stop button. Click stop button to
terminate scan operation.
4.10 Flip
In Figure 4-34, click page switch button, you can see an interface is shown as below.
See Figure 4-39. Here you can set auxiliary function.
Click page switch button again, system goes back to Figure 4-30.
Figure 4-39
