IC Realtime Specialty: 4-CH H.264E CUBE REAL-TIME DVR with BUILT-IN 5.6 LCD User Manual

Page 16

background image

16

1

Power socket

2

Power button

3

The third video
input channel

4

The third audio input
channel. (It is the fourth
audio input channel for
4-ch series ATM DVR)

5

The second
video input
channel

6

The second audio
input channel

7

The fitst video input
channel

8

The first audio
input channel

9

Video output

10

Audio output

11

Network port

RJ45)

12

USB Port

13

VGA port

14

RS232 port

15

ALARM-RS485 port

16

Fan

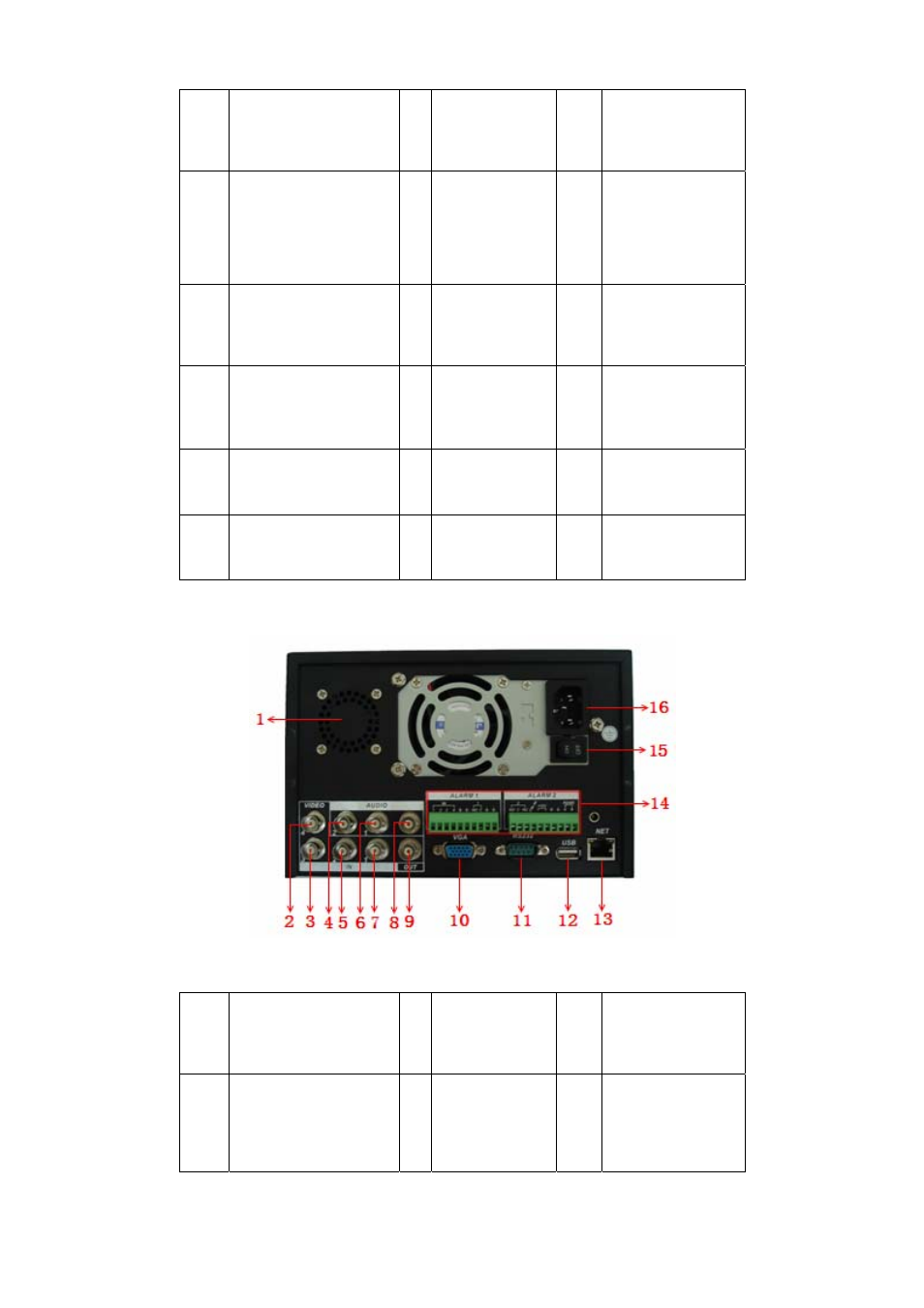

Please refer to Figure 2-4 for AH/AG real panel information.

Figure 2-4

1

Fan

2

The fourth video
input channel

3

The third video
input channel

4

The second audio input
channel

5

The second
video inpu
channel

6

The first audio input
channel
