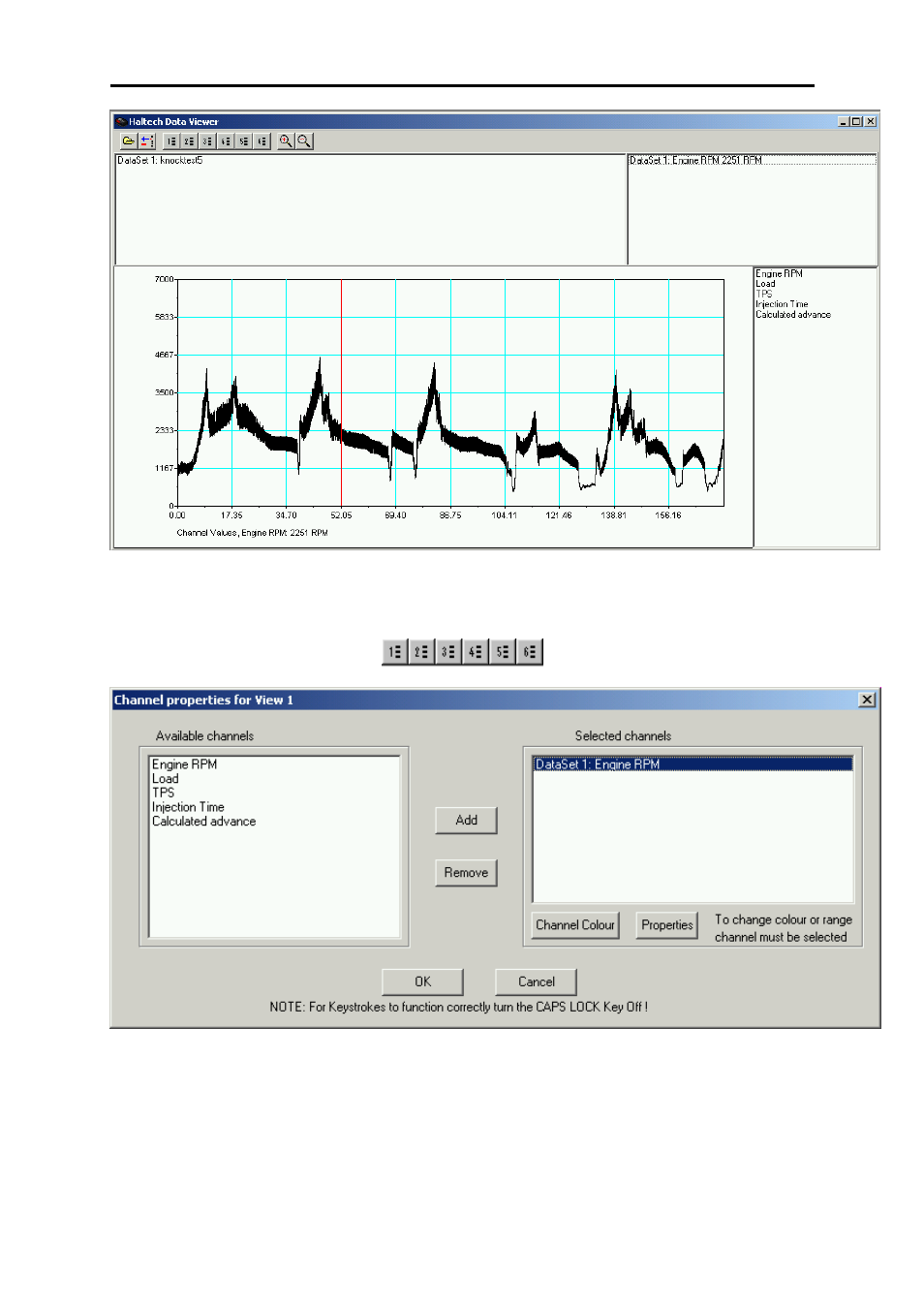

10.1.4.1 Displaying Channels
To display one of the channels that you have logged, click on one of the view buttons.
Alternatively the user can press Ctrl 1 to 6 to bring up the appropriate view.
When a view is selected, a dialog will be presented which allows you to select which channels
are to be displayed on each view. To add or remove channels the user can select the
appropriate window (“Available channels” or “Selected channels”) and add or remove
channels using the enter key.
