E.5 trigger pull up – Haltech F10X User Manual
Page 114
F10X Manual
114
E.5 Trigger Pull up
The Trigger Pull up setting is only used when in Hall Effect mode. The Trigger pull up is
needed for most Hall Effect sensors to make sure the input signal operates of the full 0 – 5v
range. This will keep the trigger signal high, until the Hall effect sensor pulls the signal low
when a trigger event occurs. Without this setting activated, ECU may not read RPM, no RPM
will be displayed on the Gauge page.

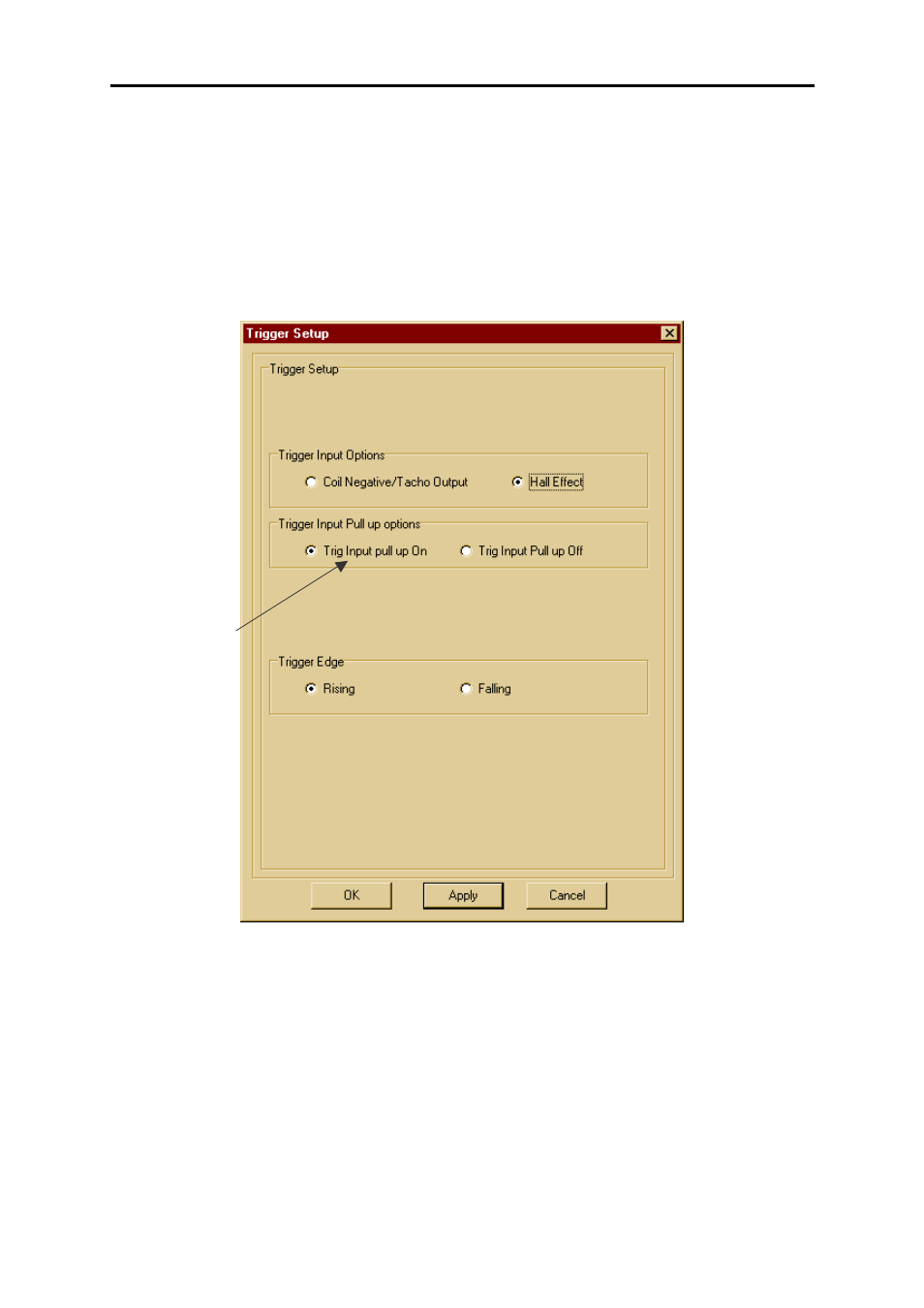

Below is how to change the Trigger Pull up setting in the Trigger Setup page.
Trigger
Input
Pull up
setting
