F10X Manual
48
5.2.6 3D View

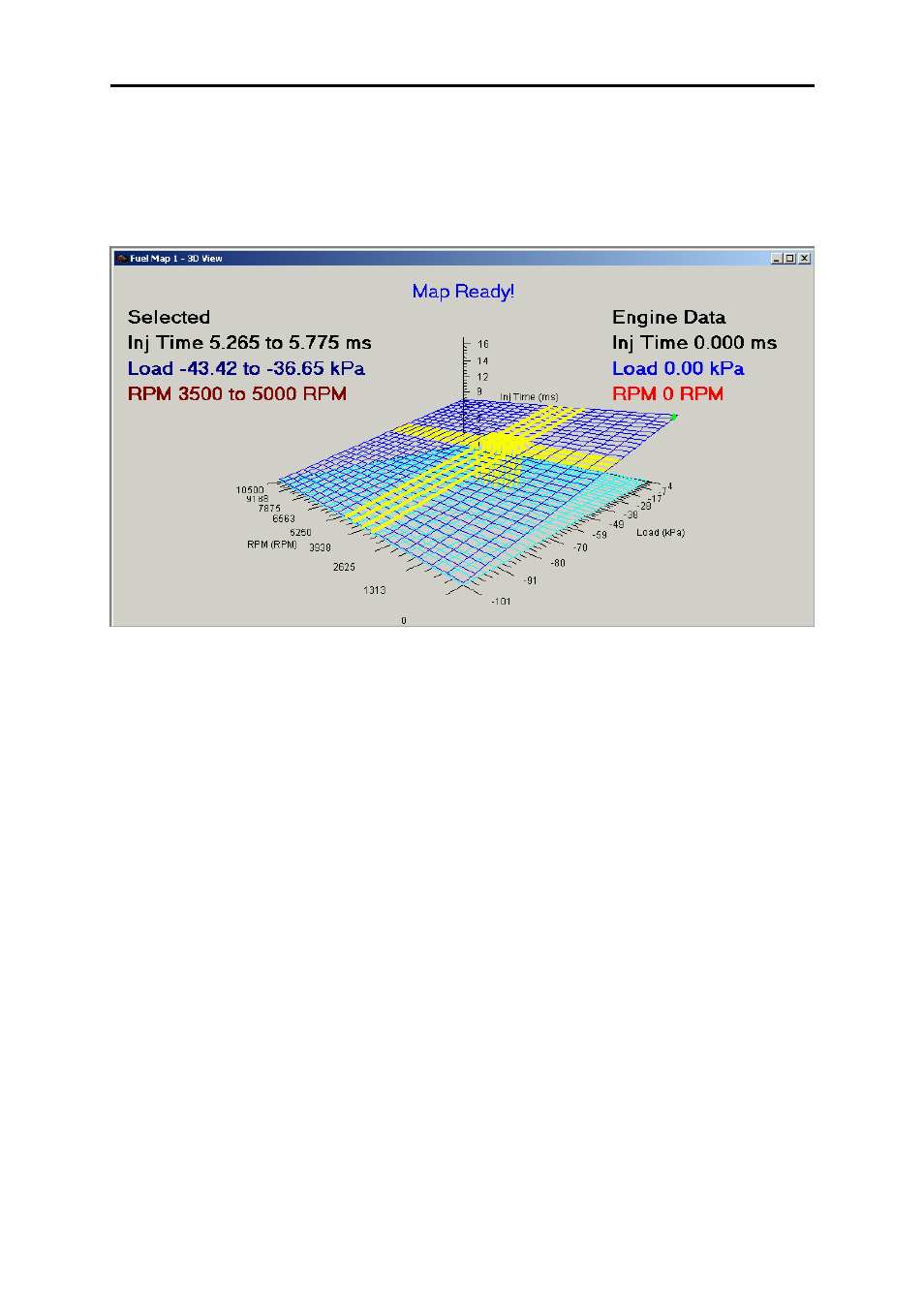

The 3D view is available for the 3D Fuel maps. An example of the 3D maps is shown in this
figure below.
The adjustments for these maps is similar to the 2D view with the following differences,
• To move up and down the RPM range the up and down arrow keys are used instead of
N and P.
• To move up and down the Load range the left and right arrow keys are used.
• The fine increments are controlled by “A” for add and “S” for subtract.
• The copy and paste functions are not available for this view.
To access these views the user can do the following,
• Use the Maps Menu by selecting Maps->Fuel Map 1 / 2 -> 3D View
• Ctrl – Alt – F
