E.1.2 Hall Effect Sensors
The F10X can be triggered using the output from various Hall Effect sensors. Some OEM
engines as well as aftermarket triggering devices produce the square wave signal the F10X
requires.
Normally a Hall Effect sensor will require at least 3 connections, power, signal and ground.
The power and ground can be sourced from the F10X harness, and the Hall Effect sensor
output signal wire should be connected to the Trigger wire of the F10X (Pin 6 on ECU) or
(Pin B on J:16 Trigger Input for the Terminated Harness). Please note that most Hall Effect
sensors will require the Trigger Pull-up to be switched on in the Trigger Set-up menu.

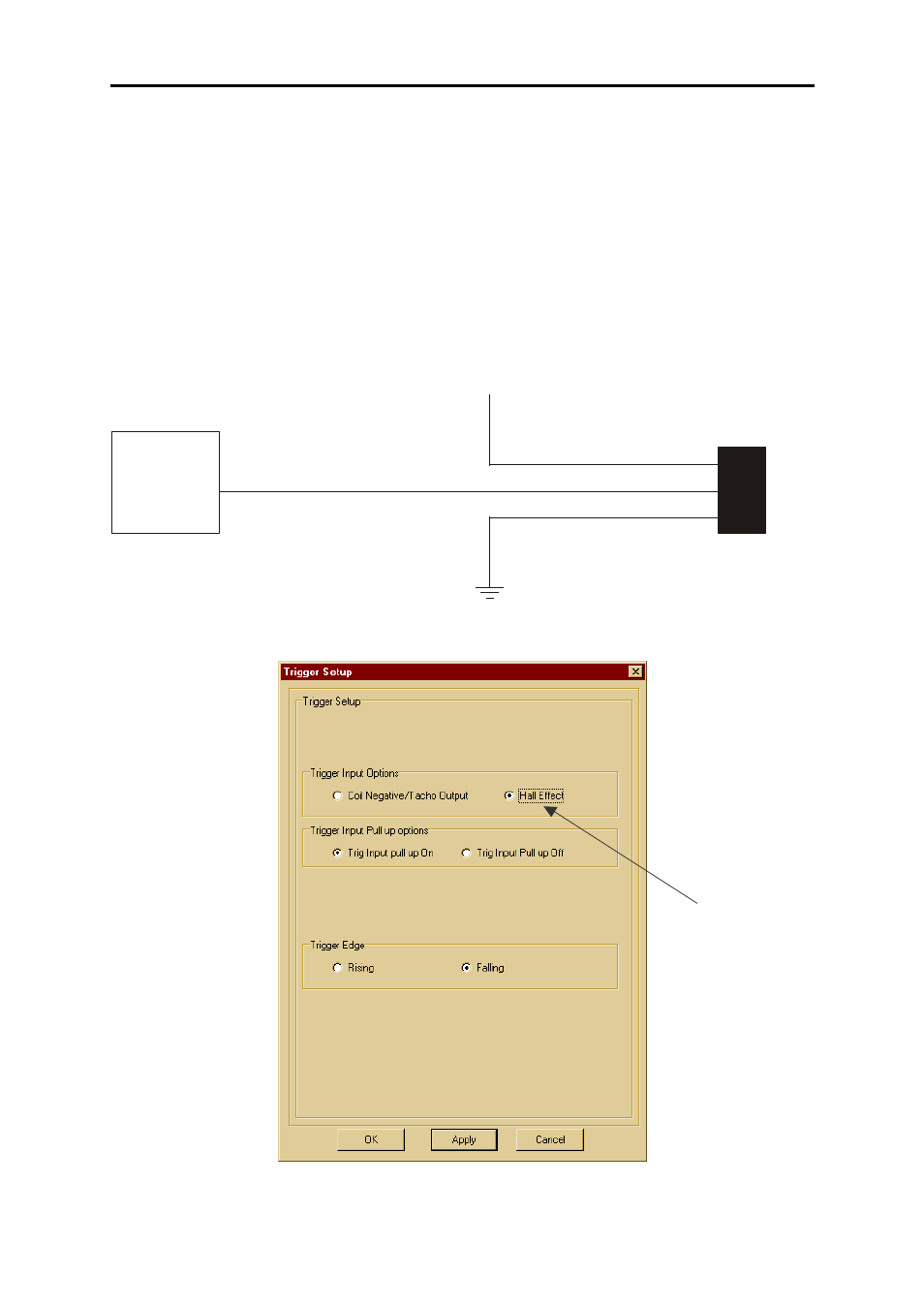

F10X
ECU
(Pin 6 on ECU) Trigger:
TYPICAL
HALL-EFFECT
SENSOR
+ 12V
0V
Hall Effect
Setting
