F10X Manual
28
The Fuel map menu item will open a sub-menu which allows access to all the fuel map ranges
from 0 –8500rpm. The keys:
N for Next and
P for previous
Allow the user to cycle through all the available rpm ranges and allows access to the rpm
ranges not accessible via the sub-menu.

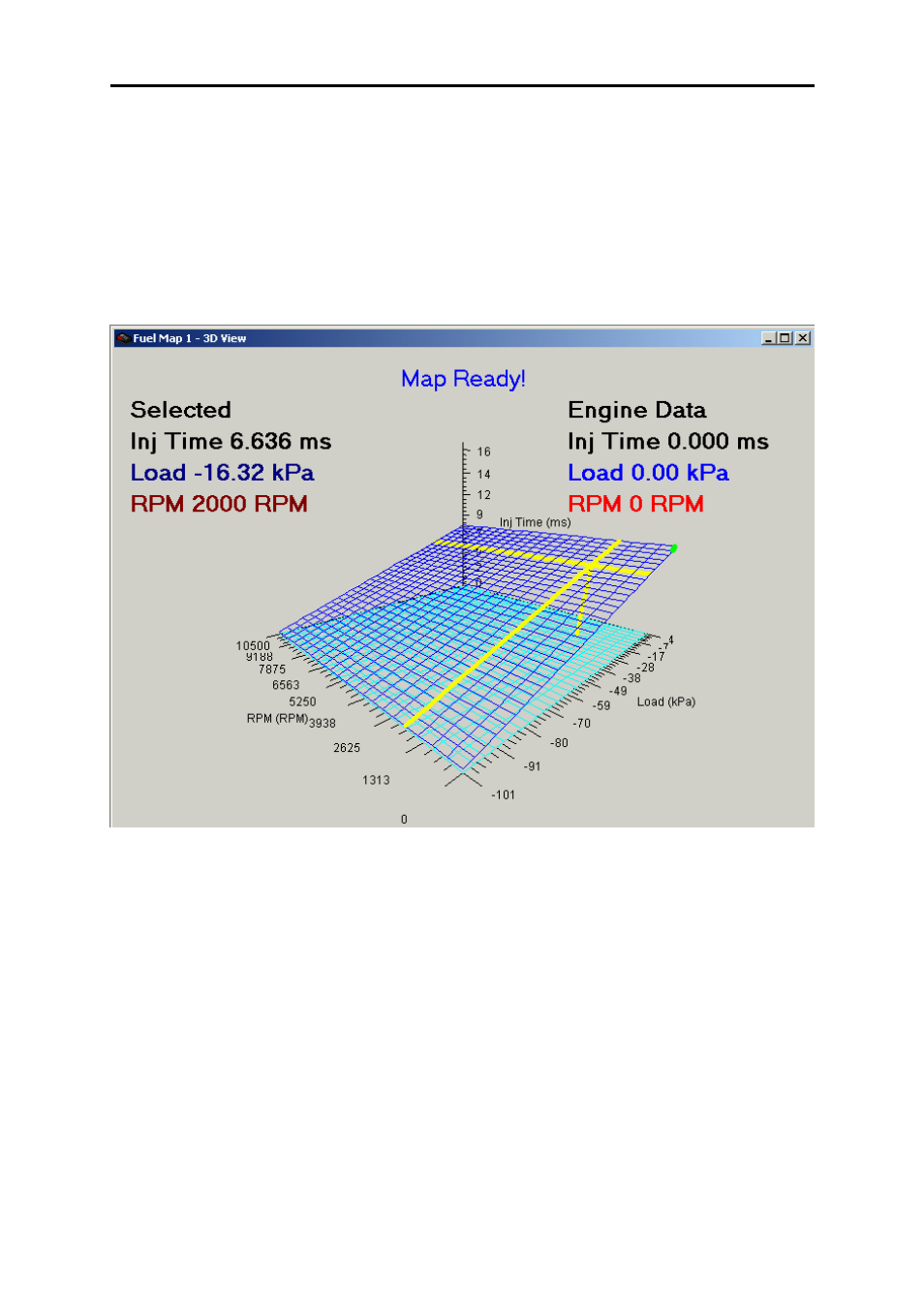

The 3D view is shown below,
To go through the load ranges the user uses the left and right arrow keys. To cycle through the
RPM range the user uses the up and down arrow keys. To select multiple bars the user presses
the Ctrl arrow keys to select the bars they wish to tune. To change the bars the user can use
“a” and “s” to change the fine increments and Pg-Up and Pg-Down for the rest of the
increments.
