E.2 coil negative triggering – Haltech F10X User Manual
Page 110
F10X Manual
110
E.2 Coil Negative Triggering
The F10X can be triggered by the signal found on the negative side of an Ignition Coil. The
F10X has a sole purpose input wire for this signal called “Negative Coil/Tacho Output” which
is Pin 36 on the F10X ECU. Please make sure that in the Trigger Setup page, the Trigger
Type is set to Coil Negative/Tacho Output if this type of trigger is to be used.

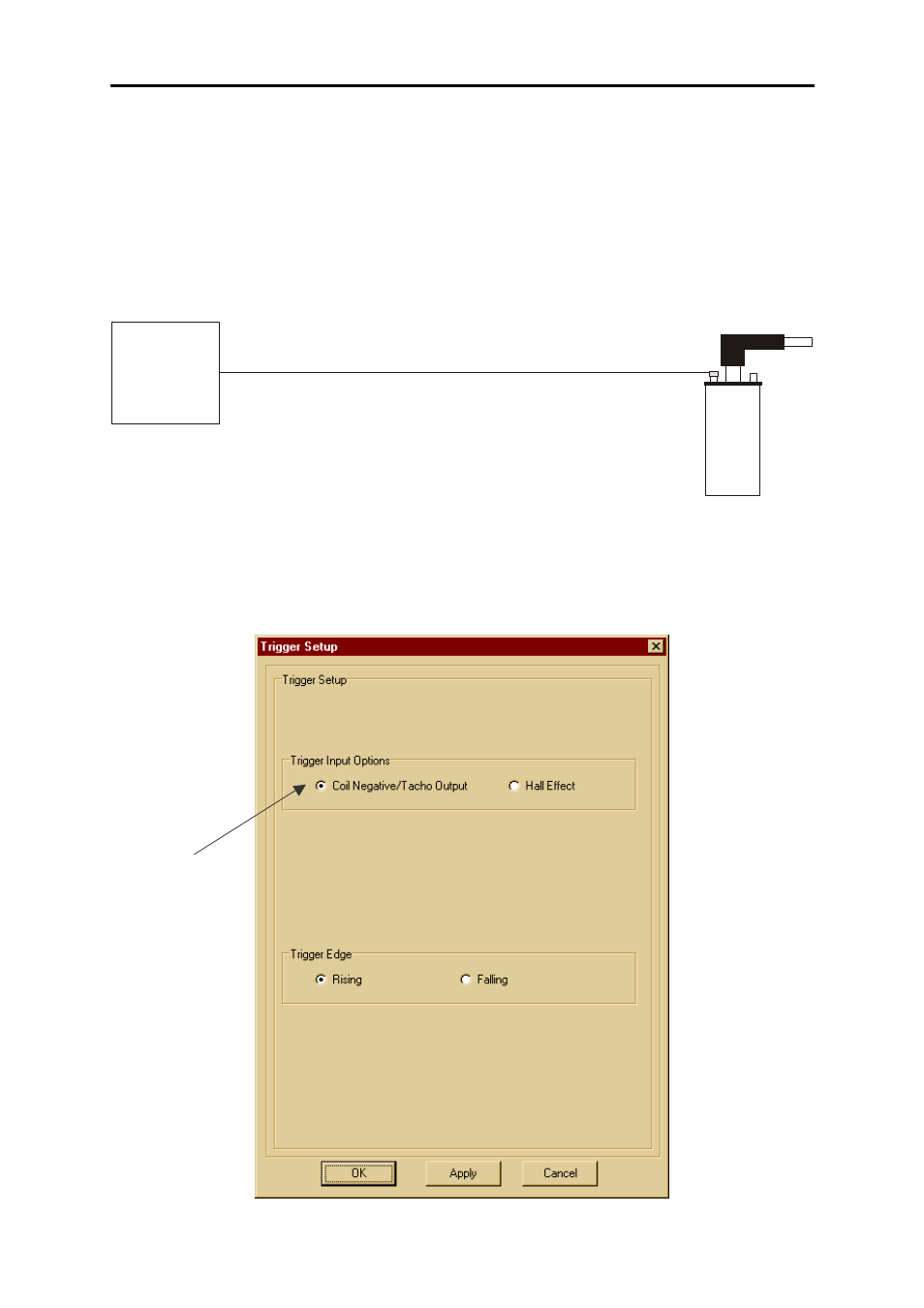

Below shows how the coil negative trigger wire should be connected.
F10X
ECU
+
_
IGNITION
COIL
Coil Negative/Tacho Output:
( Pin 36 on ECU)
Below is how to configure the Trigger Setup page for Coil Negative triggering
Coil
Negative
/Tacho
Output
setting
