F10X Manual
27
3.1.2 The Map Menu
The map menu allows access to the maps contained in the ECU. The following is a
description of the map menu and is not a complete description of the maps, for more
information on all the maps available and their function refer to CHAPTER 5 Haltech Maps,
p46.
To open the map menu Press ALT-M.
The map menu contains the following items:
- Fuel Map CTRL-F – 2D View, CTRL – ALT - F – 3D View
- Fuel Correction Maps
- Zero Throttle Map
- Full Throttle Map
- Injector Phase Map
- Waste-gate Map 1
- Waste-gate Map 2
- Torque Converter Map
3.1.2.1 Fuel Maps

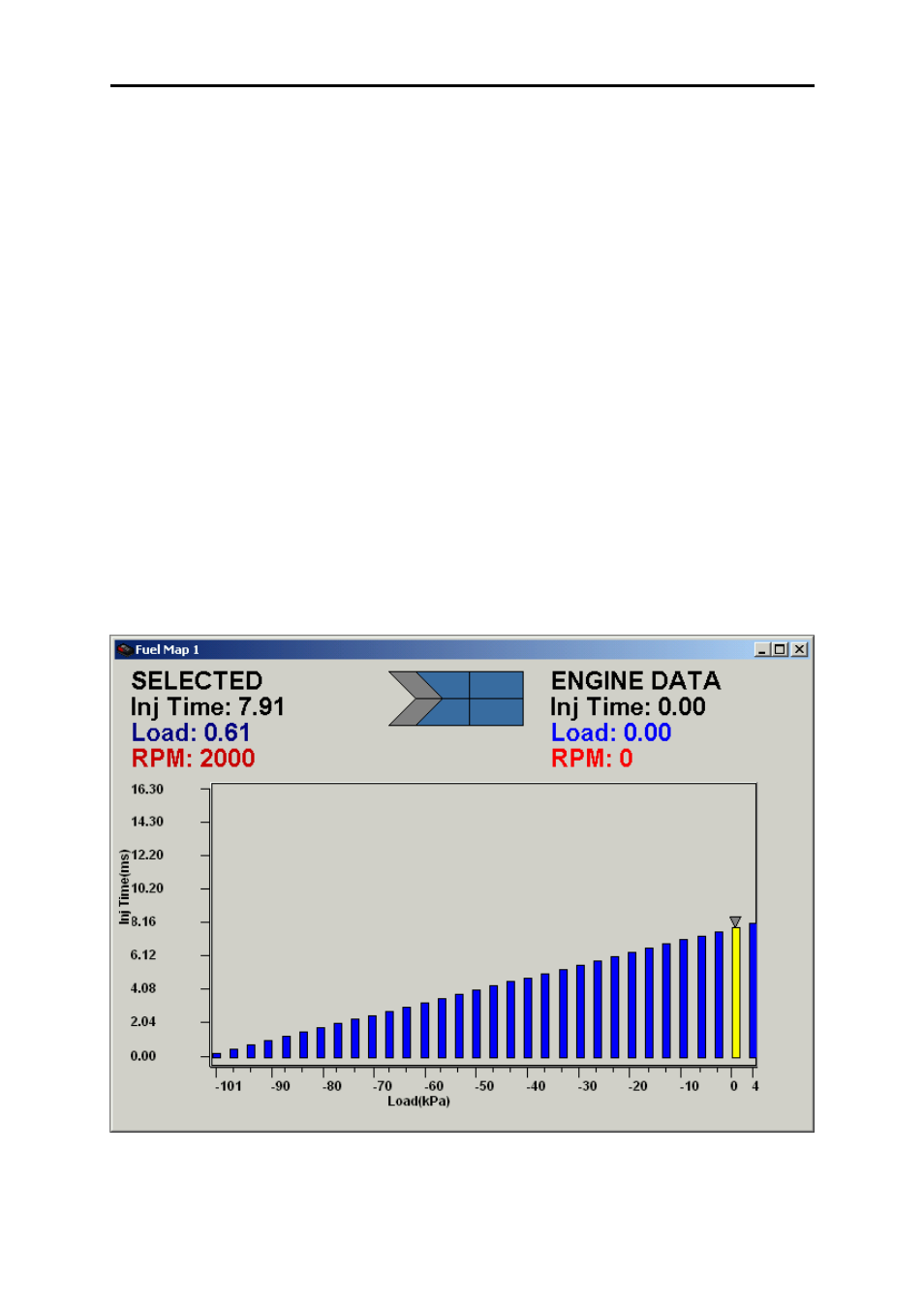

The Fuel Map is constructed of individual ranges containing Injector Pulse Width against
Engine Load as shown below.
The individual ranges represent different engine speeds; in the example above the map shown
is from the 2000rpm range.
