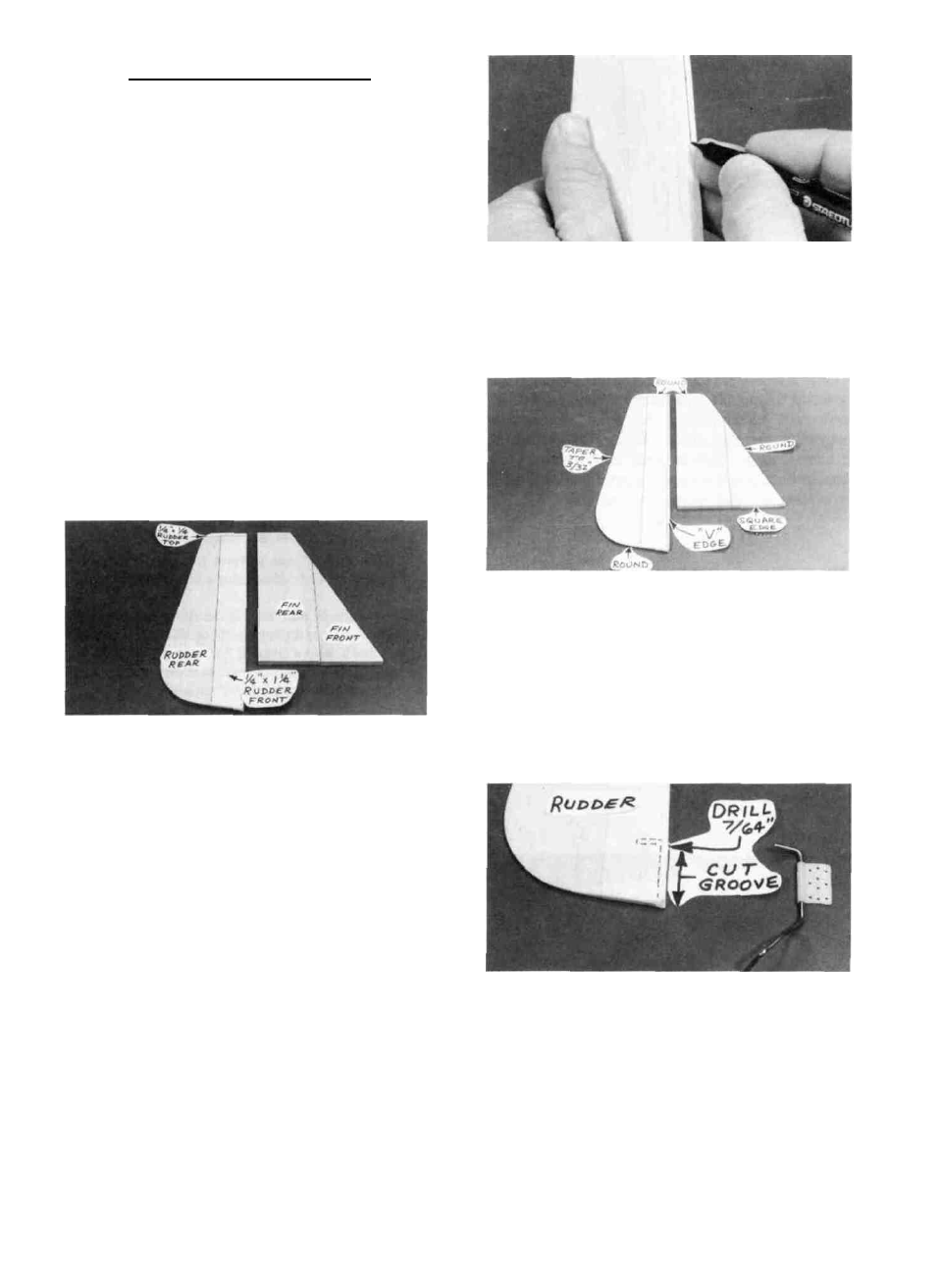

TAIL FEATHERS

BUILD THE FIN AND RUDDER

To build the fin and rudder you'll need the following:

1/4" shaped balsa fin front
1/4" shaped balsa fin rear
1/4" shaped balsa rudder rear
1/4" x 1-1/4" x 9-1/2" balsa sheet
1/4" x 1/4" x 30" balsa stick

D 7. Carefully draw a centerline all around the edges of

the fin and rudder (this will help to maintain symmetry when
sanding).

D 1. Tape the fuselage plan down to your flat work

surface. Tape a piece of waxed paper over the fin and rudder
portion of the plan.

D 8. Using a sanding block and coarse (50 or 80-grit)

sandpaper, sand both sides of the rudder to a taper as shown

on the plans. The trailing edge should end up approximately

3/32" wide and have a rounded shape. (Do not sand to a sharp

edge). Sand the bottom edge to a rounded shape. Sand the
leading edge to a "V-shape" as shown on the plan. Sand the
top and front edges of the fin to a rounded shape.

D 2. Working on a flat surface covered with waxed paper,

glue the fin front to the fin rear.

D 3. Using a T-bar or sanding block, sand both sides of

the fin smooth, then sand the outline of the fin to match the

plan.

D 4. Using the plan as a guide, glue the 1/4" x 1-1/4" x

9-1/2" balsa rudder front to the shaped balsa rudder rear,
lining up the top edges.

D 5. Cut a 2-1/4" length of 1/4" x 1/4" balsa, and glue it

to the top of the rudder.

D 6. Trim the edges of the rudder to match the plan, then

use your T-bar with medium grit sandpaper to sand both sides

of the rudder smooth.

D 9. Check the plans and mark the location of the tailgear*

on the rudder. Drill a 7/64" hole in the rudder (the hole is
drilled slightly oversize to allow for positioning, and to create
a hard epoxy "sleeve" around the wire). Then groove the
rudder leading edge to accept the tailgear wire. (See the
photo at step 5 on page 18).

7
