Fit the circulation tray in the base of the tank with the large cut out in the tray underneath
the control unit (ST18, ST26 & ST38 only).
4.3

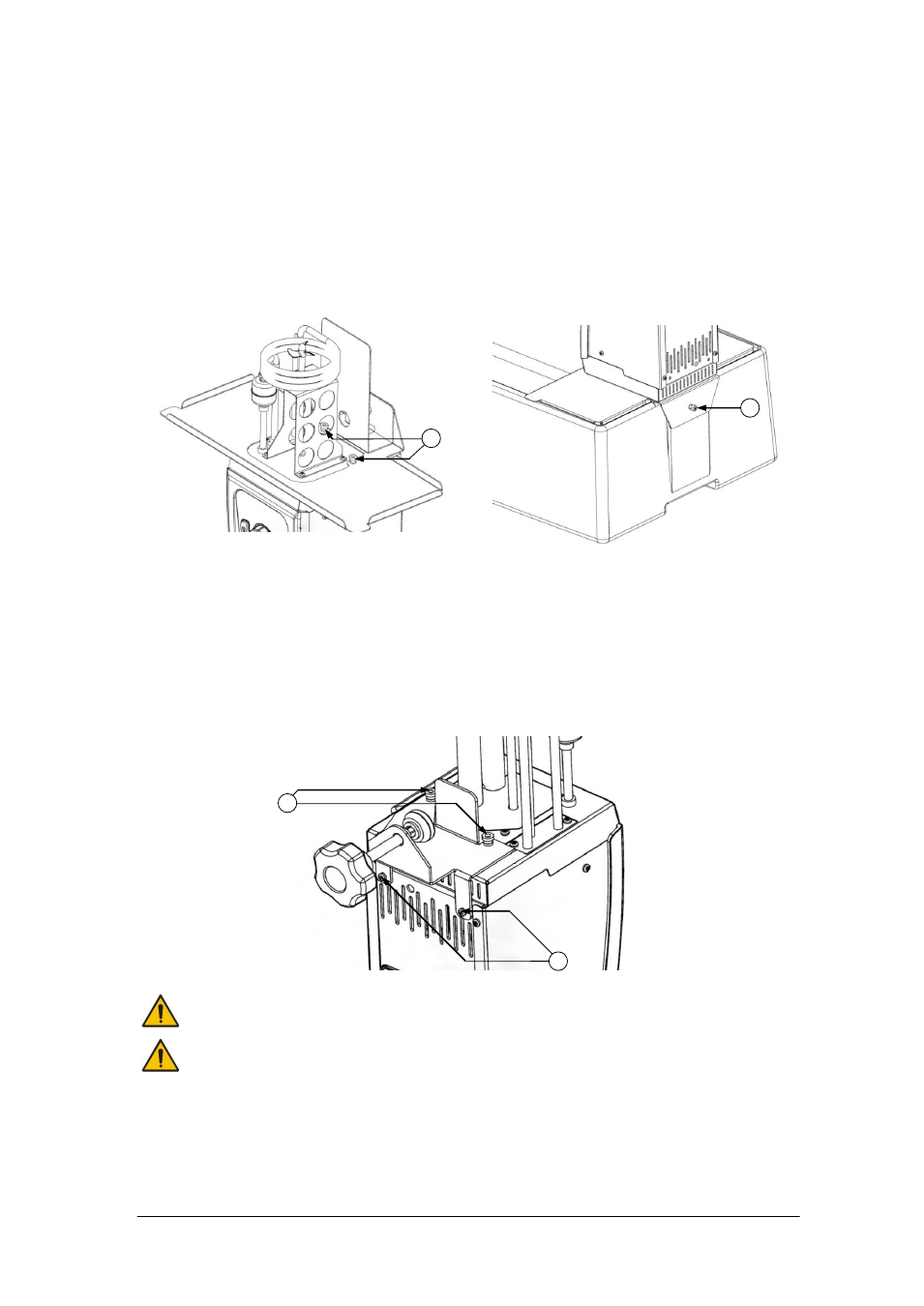

Fitting the controller to P baths
The TX150/TXF200 can be fitted to the following plastic baths, P5, P12 and P18:
1. Fit the TX150/TXF200 through the hole in the bridge plate and align using the
locating threads. Secure using the retaining nuts (1). Hand tighten only.
2. Add the assembly to the P bath and use the supplied fixing to secure to the rear of
the bath (2).
4.4
Fitting the controller to custom baths
A clamp can be fitted to the TX150/TXF200 to allow attachment to a non-Grant bath or
vessel with a wall thickness of up to 30mm. To fit the clamp to the TX150/TXF200:
1. Place clamp over locating threads on base of TX150/TXF200. Secure using the
retaining nuts. Hand tighten only.
2. Add clamp rear fixings to secure to rear of TX150/TXF200.
Take care not to over tighten the clamp to avoid damaging the clamp or vessel
The liquid container on which the unit is mounted must be stable and have the
necessary robustness, mechanical, chemical and heat resistance.
Do not wash the clamp in a dishwasher or clean it with descaler. Do not submerse the
threaded shaft of the clamp. Always dry the threaded shaft and clamp after cleaning.
The threads may be lubricated with a small amount of light machine oil.
1
2
1
2
