6. Rotate the dial to highlight pump speed, press S
to select
7. Rotate the dial to the desired pump speed (1 to 5).
Press S to set.
8. Rotate the dial to highlight duration, press S to
select.
9. Rotate the dial to define the duration of the first
segment (hh:mm). Minimum segment duration is
1 minute, maximum 99 hrs 59 mins. Press S to
set.
10. Rotate the dial to highlight action, press S to
select.
11. Rotate the dial to toggle between relay on/off.
Press S to select.
12. Highlight save to store segment 1.
The program screen is displayed.
13. To insert a new segment, highlight segment 1,
press S. Rotate the dial to display insert after,
press S to select.
Segment 2 screen is displayed. Repeat steps 4 to
12 to create a new segment.
To dwell for a period at a particular temperature,
set the temperature to the same value as the
previous segment and then set the time to the
required dwell period.
14. On completion of programming, press F twice to
return to the home screen.
.

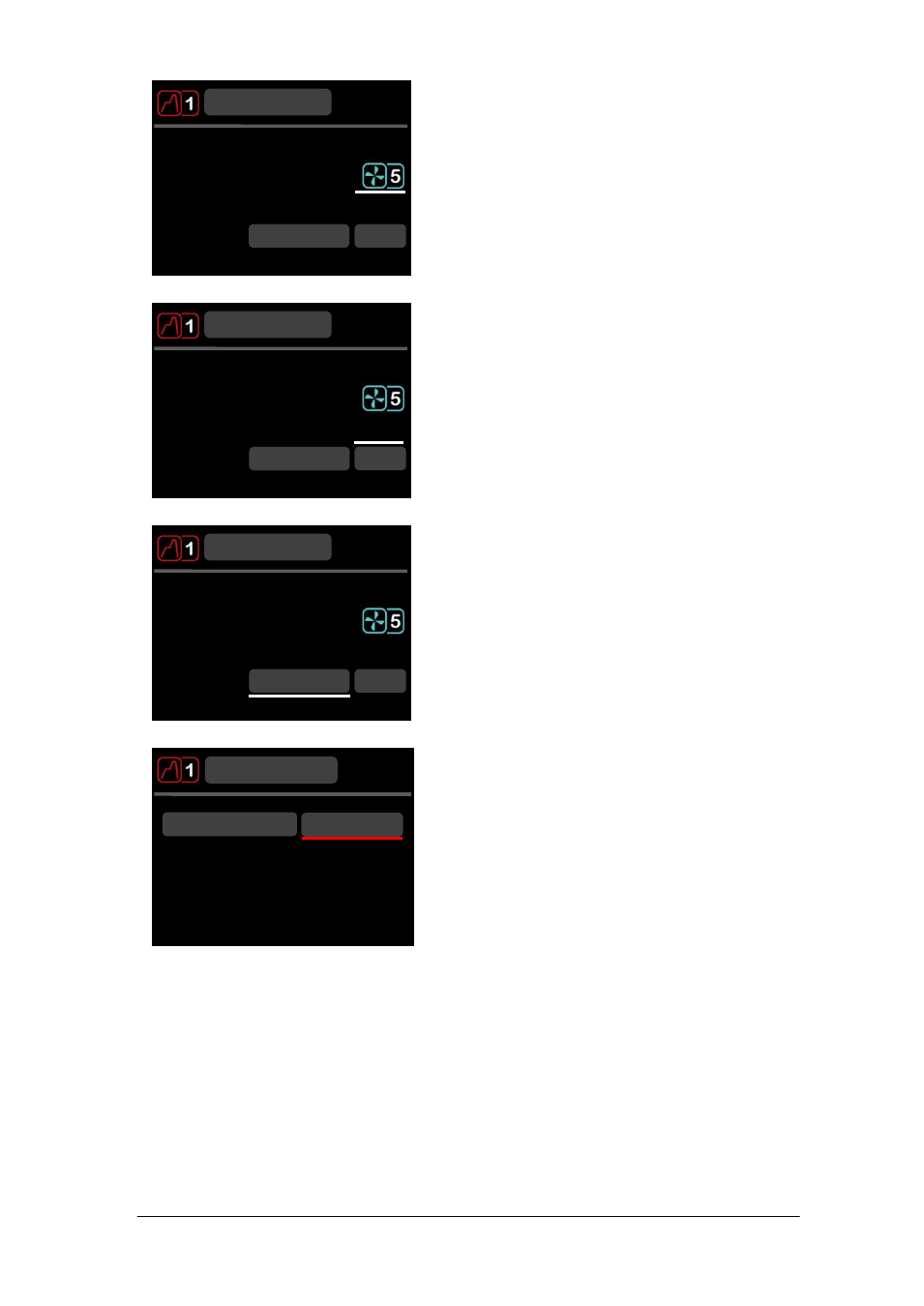

°c
001: Ends 00:10
Program
Insert after
.
°c
Target temperature
Pump speed
Duration (hh:mm)
Segment 01
Action
Save
.
:
Relay Off
.
°c
Target temperature
Pump speed
Duration (hh:mm)
Segment 01
Action
Save
.
:
Relay Off
.
°c
Target temperature
Pump speed
Duration (hh:mm)
Segment 01
Action
Save
.
:
Relay Off
